Name: OpenVox D130E Single Span T1 E1 J1 PRI PCI-E Card Low Profile Adv
Brand: Openvox
Price: 351.12 USD
Availability: InStock

OpenVox D130E Single Span T1 E1 J1 PRI PCI-E Card Low Profile Adv

$399.00 $351.12 Save $47.88

Model: D130E
Retail Price: $399.00

Product Spotlight
OpenVox D130E is now the leading single port T1/E1/J1 PCI-E card in the open source industry. It supports up to 32 channels in E1 mode or 24 channels in T1/J1 modes.

Industry 1st adjustable interrupt routing design

Interrupts frequency adjustment
Compatible with All Commercially Available Motherboards
Single T1/E1/J1 ports with PCI interface for high performance voice and data applications

Overview

The D130E is an upgrade product of the D115E. It supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. D130E is supposed to be the most advanced single port T1/E1/J1 asterisk^® card with superior quality in the open source community. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.D130E supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.D130E works with Asterisk^®, Elastix^®, FreeSWITCH^®, PBX in a Flash, trixbox^®, Yate^® and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

Voice-over Internet Protocol (VoIP) Services
Complex IVR Trees
"Meet-Me" Bridge Conferencing
Calling Card Platforms
VoIP Gateways (support SIP, H.323, and IAX)
Legacy PBX/IVR Services
Voice/Data Router (replace expensive routers)
PRI/Switch Compatibility - Network or CPE

Technical Specifications

Single T1/E1/J1 ports with PCI interface for high performance voice and data applications
Half-length PRI card
RJ48 connector
Low profile option
FPGA design, upgradeable firmware onsite
Power: 2.1W Minimum, 3.1W Maximum at 3.3 V or 5 V.
Operation temperature: 0°C to 50°C
Storage temperature: -65°C to 125°C
Dimension: 2U Form factor: 12*6.4*1.8cm
Weight: g

PRI Switch Compatibility

EuroISDN (PRI or PRA) - Q.931/Q.921
Network or CPE
AT&T 4ESS
National ISDN 2
CAS Voice Modes
DMS 100
Lucent 5E

Operating Systems

Linux (all versions, releases and distributions f rom 1.0 up)

Minimum Hardware Requirement

800-Mhz Pentium III
128MB RAM
Available PCI-E Slot

Warranty:

1 Year Limited Manufacturer Warranty

..jeff..

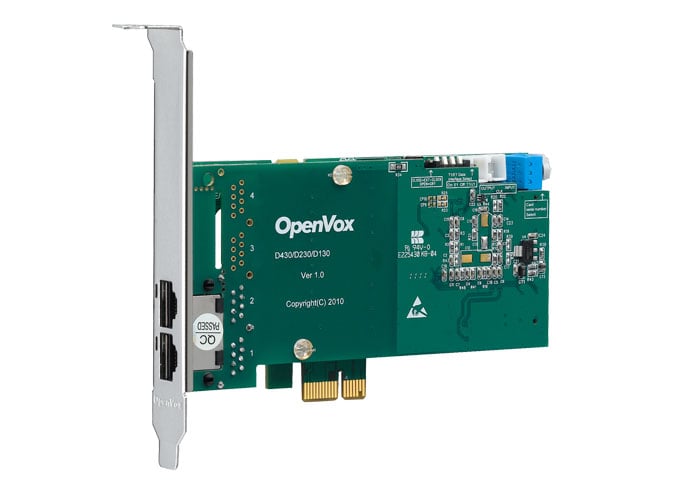

OpenVox D230E Dual Span T1 E1 J1 PRI PCI-E Card Low Profile Adv

$669.00 $588.72 Save $80.28

Model: D230E
Retail Price: $669.00

Product Spotlight

OpenVox D230E is now the leading 2 port T1/E1/J1 PCI-E card in the open source industry. It supports up to 64 channels in E1 mode or 48 channels in T1/J1 modes.

Industry 1st adjustable interrupt routing design
Interrupts frequency adjustment
Compatible with All Commercially Available Motherboards
2 T1/E1/J1 ports with PCI interface for high performance voice and data applications

Overview

The D230E is an upgrade product of the D210E. It supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. D230E is supposed to be the most advanced 2 port T1/E1/J1 asterisk^® card with superior quality in the open source community. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.D230E supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.D230E works with Asterisk^®, Elastix^®, FreeSWITCH^®, PBX in a Flash, trixbox^®, Yate^® and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

Voice-over Internet Protocol (VoIP) Services
Complex IVR Trees
"Meet-Me" Bridge Conferencing
Calling Card Platforms
VoIP Gateways (support SIP, H.323, and IAX)
Legacy PBX/IVR Services
Voice/Data Router (replace expensive routers)
PRI/Switch Compatibility - Network or CPE

Technical Specifications

2 T1/E1/J1 ports with PCI interface for high performance voice and data applications
Half-length PRI card
RJ48 connector
Low profile option
FPGA design, upgradeable firmware onsite
Power: 2.3W Minimum, 3.5W Maximum at 3.3 V or 5 V.
Operation temperature: 0°C to 50°C
Storage temperature: -65°C to 125°C
Dimension: 2U Form factor: 12*6.4*1.8cm
Weight: g

PRI Switch Compatibility

EuroISDN (PRI or PRA) - Q.931/Q.921
Network or CPE
AT&T 4ESS
National ISDN 2
CAS Voice Modes
DMS 100
Lucent 5E

Operating Systems

Linux (all versions, releases and distributions f rom 1.0 up)

Minimum Hardware Requirement

800-Mhz Pentium III
128MB RAM
Available PCI-E Slot

Warranty:

1 Year Limited Manufacturer Warranty

..jeff..

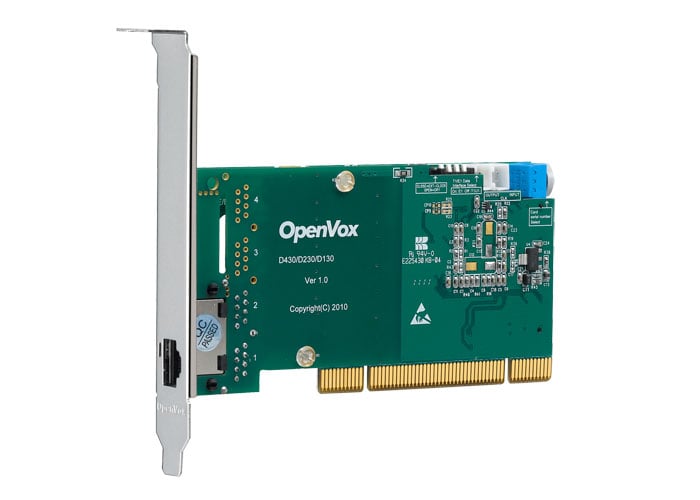

OpenVox D130P Single Span T1 E1 J1 PRI PCI Card Low Profile Adv

$399.00 $351.12 Save $47.88

Model: D130P
Retail Price: $399.00

Product Spotlight

OpenVox D130P is now the leading single port T1/E1/J1 PCI card in the open source industry. It supports up to 32 channels in E1 mode or 24 channels in T1/J1 modes.

Industry 1st adjustable interrupt routing design
Interrupts frequency adjustment
Compatible with All Commercially Available Motherboards
Single T1/E1/J1 ports with PCI interface for high performance voice and data applications

Overview

The D130P is an upgrade product of the D115P. It supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. D130P is supposed to be the most advanced single port T1/E1/J1 asterisk^® card with superior quality in the open source community. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.

D130P supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

D130P works with Asterisk^®, Elastix^®, FreeSWITCH^™, PBX in a Flash, trixbox^®, Yate^™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

Voice-over Internet Protocol (VoIP) Services
Complex IVR Trees
"Meet-Me" Bridge Conferencing
Calling Card Platforms
VoIP Gateways (support SIP, H.323, and IAX)
Legacy PBX/IVR Services
Voice/Data Router (replace expensive routers)
PRI/Switch Compatibility - Network or CPE
Technical Specifications
Single T1/E1/J1 ports with PCI interface for high performance voice and data applications
Half-length PRI card
RJ48 connector
Low profile option
32 bit 33MHz PCI and fully PCI 2.3 compliant
32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
Autosense compatibility with 5 V and 3.3 V PCI busses
FPGA design, upgradeable firmware onsite
Power: 2.1W Minimum, 3.1W Maximum at 3.3 V or 5 V.
Operation temperature: 0°C to 50°C
Storage temperature: -65°C to 125°C
Dimension: 2U Form factor: 12*6.4*1.8cm
Weight: 90g
PRI Switch Compatibility
EuroISDN (PRI or PRA) - Q.931/Q.921
Network or CPE
AT&T 4ESS
National ISDN 2
CAS Voice Modes
DMS 100
Lucent 5E
Operating Systems
Linux (all versions, releases and distributions f rom 1.0 up)
Minimum Hardware Requirement
800-Mhz Pentium III
128MB RAM
Available PCI Slot

Warranty:

1 Year Limited Manufacturer Warranty

..jeff..

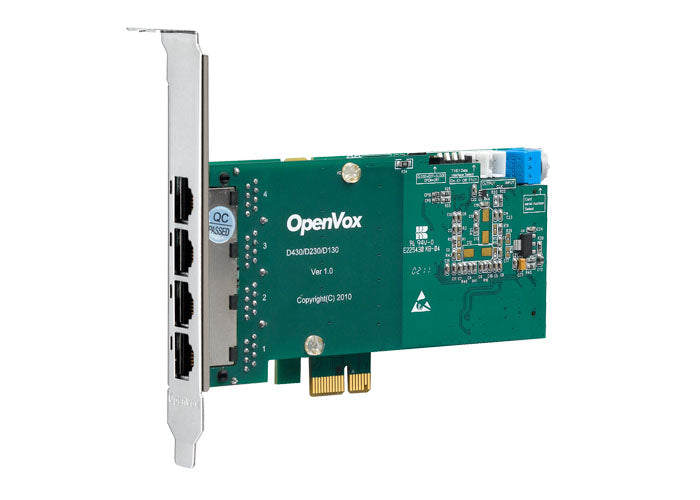

OpenVox D430E Quad Span T1 E1 J1 PRI PCI-E Card Low Profile Adv

$1,099.00 $967.12 Save $131.88

Model: D430E
Retail Price: $1,099.00

This is temporarily shipping from China.

Product Spotlight

OpenVox D430E is now the leading 4 port T1/E1/J1 PCI-E card in the open source industry. It supports up to 128 channels in E1 mode or 96 channels in T1/J1 modes.

Industry 1st adjustable interrupt routing design
Interrupts frequency adjustment
Compatible with All Commercially Available Motherboards
Four T1/E1/J1 ports with PCI-E interface for high performance voice and data applications

Overview

The D430E is an upgrade product of the D410E. It supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. D430E is supposed to be the most advanced 4 port T1/E1/J1 asterisk^® card with superior quality in the open source community. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.

D430E supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

D430E works with Asterisk^®, Elastix^®, FreeSWITCH^®, PBX in a Flash, trixbox^®, Yate^® and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

Voice-over Internet Protocol (VoIP) Services
Complex IVR Trees
"Meet-Me" Bridge Conferencing
Calling Card Platforms
VoIP Gateways (support SIP, H.323, and IAX)
Legacy PBX/IVR Services
Voice/Data Router (replace expensive routers)
PRI/Switch Compatibility - Network or CPE
Technical Specifications
Four T1/E1/J1 ports with PCI interface for high performance voice and data applications
Half-length PRI card
RJ48 connector
Low profile option
FPGA design, upgradeable firmware onsite
Power: 2.6W Minimum, 3.9W Maximum at 3.3 V or 5 V.
Operation temperature: 0°C to 50°C
Storage temperature: -65°C to 125°C
Dimension: 2U Form factor: 12*6.4*1.8cm
Weight: 300g
PRI Switch Compatibility
EuroISDN (PRI or PRA) - Q.931/Q.921
Network or CPE
AT&T 4ESS
National ISDN 2
CAS Voice Modes
DMS 100
Lucent 5E
Operating Systems
Linux (all versions, releases and distributions f rom 1.0 up)
Minimum Hardware Requirement
800-Mhz Pentium III
128MB RAM
Available PCI-E Slot

Warranty:

1 Year Limited Manufacturer Warranty

..jeff..

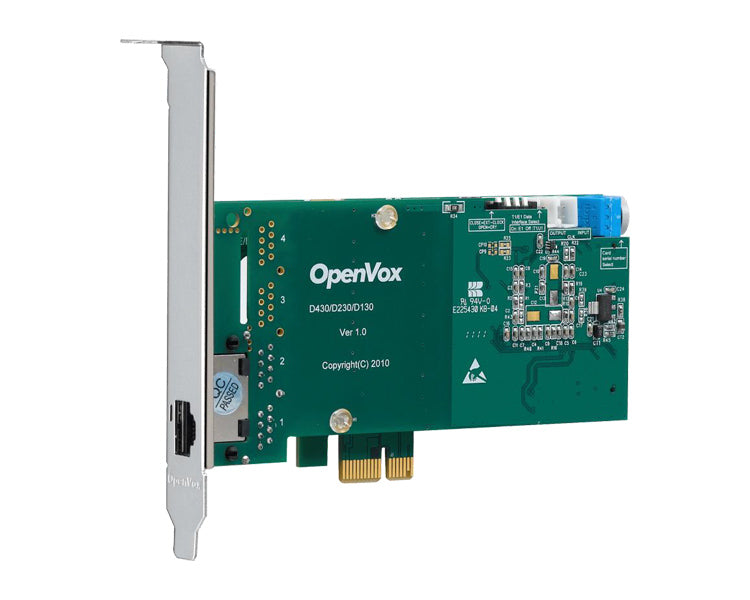

OpenVox DE130E Single Span T1 E1 J1 PRI PCI-E Card w Echo EC2032 Module Low Profile Adv

$449.00 $395.12 Save $53.88

Model: DE130E
Retail Price: $449.00

Product Spotlight

OpenVox DE130E is now the leading single port T1/E1/J1 PCI-E card in the open source industry. It takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality over T1, E1, and J1 interface.

Industry 1st adjustable interrupt routing design
Interrupts frequency adjustment
Compatible with All Commercially Available Motherboards
Single T1/E1/J1 ports with PCIe interface for high performance voice and data applications
Octasic® Hardware Echo Cancellation Module Available

Overview

The DE130E is an upgrade product of the DE115E. It’s supposed to be the most advanced single port T1/E1/J1 asterisk® card with superior quality in the open source community. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.

DE130E offers an on-board Octasic® DSP-based echo cancellation module. It supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. The Octasic® DSP-based EC module enables users to eliminate echo tails up to 128ms or 1024 taps across all 32 channels in E1 mode or 24 channels in T1/J1 modes. Further, this module takes advantage of the Octasic® Voice Quality Enhancement to provide superior sound quality on all calls.

DE130E supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

DE130E works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

Voice-over Internet Protocol (VoIP) Services

Complex IVR Trees

"Meet-Me" Bridge Conferencing
Calling Card Platforms
VoIP Gateways (support SIP, H.323, and IAX)
Legacy PBX/IVR Services
Voice/Data Router (replace expensive routers)
PRI/Switch Compatibility - Network or CPE

Technical Specifications
Single T1/E1/J1 ports with PCI interface for high performance voice and data applications
Half-length PRI card
RJ48 connector
Low profile option
FPGA design, upgradeable firmware onsite
Power: 2.43W Minimum, 6.1W Maximum
Operation temperature: 0°C to 50°C
Storage temperature: -65°C to 125°C
Dimension: 2U Form factor: 12*6.4*1.8cm
Weight: 93g

Optional Octasic® DSP Echo Cancellation Module—EC2032
128ms tail/channel (on all channel densities)
Octasic® Music Protection
Adaptive Noise Reduction
Automatic Level Control (G.169)
Field upgradeable algorithm
V.25 / V.8 answer tone (w/ and w/o phase reversal)
DTMF as per Q.24
No CPU load as a result of echo cancellation.
Does not increase the physical size of the card, and no additional slot is required
EC2032 power: 3.83W
Storage temperature: -40°C to 75°C

PRI Switch Compatibility
EuroISDN (PRI or PRA) - Q.931/Q.921
Network or CPE
AT&T 4ESS
National ISDN 2
CAS Voice Modes
DMS 100
Lucent 5E

Warranty:

1 Year Limited Manufacturer Warranty

..jeff..

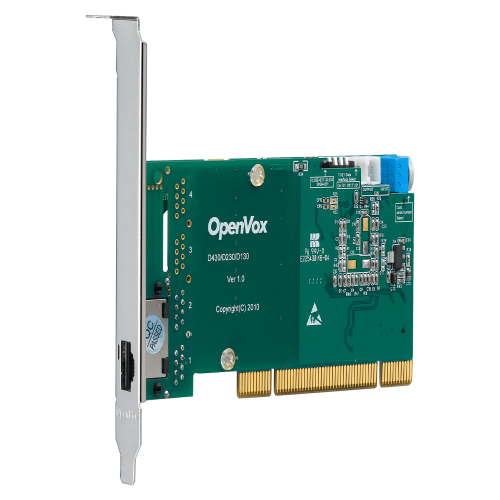

OpenVox DE130P Single Span T1 E1 J1 PRI PCI Card w Echo EC2032 Module Low Profile Adv

$449.00 $395.12 Save $53.88

Model: DE130P
Retail Price: $449.00

Product Spotlight

OpenVox D115E is a new version worldwide affordable single port T1/E1/J1 card and delivers the great voice quality over telephony systems. It supports up to 30 voice calls or 2.048 Mbps of full?duplex data throughput over four T1, E1, or J1 lines

Single T1/E1/J1 port with PCI-Express interface for high performance voice and data applications
Up to 60 Simultaneous voice calls

Overview

The D115E supports E1, T1 and J1 environments. It is selectable on a per-card or per-port basis. This feature enables signaling translation between E1 and T1 equipments and allows inexpensive T1 channel banks to connect with E1 circuits.

D115E supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

D115E works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

Voice-over Internet Protocol (VoIP) Services
Complex IVR Trees
"Meet-Me" Bridge Conferencing
Calling Card Platforms
VoIP Gateways (support SIP, H.323, and IAX)
Legacy PBX/IVR Services
Voice/Data Router (replace expensive routers)
PRI/Switch Compatibility - Network or CPE
Technical Specifications
Single T1/E1/J1 port with PCI-Express interface for high performance voice and data applications
Half-length PRI card
RJ48 connector
Power: 2.3W Maximum
Operation temperature: 0°C to 50°C
Storage temperature: -65°C to 125°C
Dimension: 12.9cm*10.3cm*1.8cm
Weight: 86g
PRI Switch Compatibility
EuroISDN (PRI or PRA) - Q.931/Q.921
Network or CPE
AT&T 4ESS
National ISDN 2
CAS Voice Modes
DMS 100
Lucent 5E
Operating Systems
Linux (all versions, releases and distributions f rom 1.0 up)
Minimum Hardware Requirement
800-Mhz Pentium III
128MB RAM
Available PCI-Express Slot
RoHS compliant
Certificates: CE and FCC

Warranty:

1 Year Limited Manufacturer Warranty

..jeff..

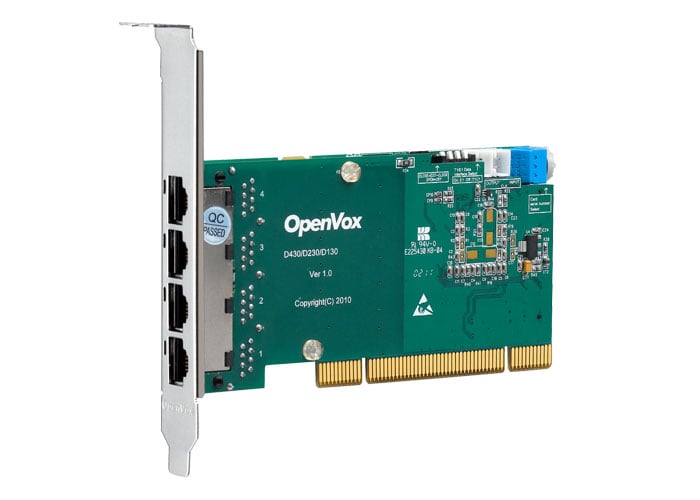

OpenVox DE430P Quad Span T1 E1 J1 PRI PCI Card w Echo EC2128 Module Low Profile Adv

$1,799.00 $1,583.12 Save $215.88

Model: DE430P
Retail Price: $1,799.00

Product Spotlight

OpenVox DE430P is now the leading 4 port T1/E1/J1 PCI card in the open source industry. It takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality over T1, E1, and J1 interface.

Industry 1st adjustable interrupt routing design
Interrupts frequency adjustment
Compatible with All Commercially Available Motherboards
Four T1/E1/J1 ports with PCI interface for high performance voice and data applications
Octasic^® Hardware Echo Cancellation Module Available

Overview

The DE430P is an upgrade product of the DE410P. It’s supposed to be the most advanced 4 port T1/E1/J1 asterisk^® card with superior quality in the open source community. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.

DE430P offers an on-board Octasic^® DSP-based echo cancellation module. It supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. The Octasic^® DSP-based EC module enables users to eliminate echo tails up to 128ms or 1024 taps across all 128 channels in E1 mode or 96 channels in T1/J1 modes. Further, this module takes advantage of the Octasic^® Voice Quality Enhancement to provide superior sound quality on all calls.

DE430P supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

DE430P works with Asterisk^®, Elastix^®, FreeSWITCH^™, PBX in a Flash, trixbox^®, Yate^™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

Voice-over Internet Protocol (VoIP) Services
Complex IVR Trees
"Meet-Me" Bridge Conferencing
Calling Card Platforms
VoIP Gateways (support SIP, H.323, and IAX)
Legacy PBX/IVR Services
Voice/Data Router (replace expensive routers)
PRI/Switch Compatibility - Network or CPE
Technical Specifications
Four T1/E1/J1 ports with PCI interface for high performance voice and data applications
Half-length PRI card
RJ48 connector
Low profile option
32 bit 33MHz PCI and fully PCI 2.3 compliant
32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
Autosense compatibility with 5 V and 3.3 V PCI busses
FPGA design, upgradeable firmware onsite
Power: 2.6W Minimum, 3.9W Maximum at 3.3 V or 5 V.
Operation temperature: 0°C to 50°C
Storage temperature: -65°C to 125°C
Dimension: 2U Form factor: 12*6.4*1.8cm
Weight: 98g
Optional Octasic^® DSP Echo Cancellation Module—EC2128
128ms tail/channel (on all channel densities)
Octasic^® Music Protection
Adaptive Noise Reduction
Automatic Level Control (G.169)
Field upgradeable algorithm
V.25 / V.8 answer tone (w/ and w/o phase reversal)
DTMF as per Q.24
No CPU load as a result of echo cancellation.
Does not increase the physical size of the card, and no additional slot is required
EC2128 power: 0.33W/3.5W
Storage temperature: -40°C to 75°C
PRI Switch Compatibility
EuroISDN (PRI or PRA) - Q.931/Q.921
Network or CPE
AT&T 4ESS
National ISDN 2
CAS Voice Modes
DMS 100
Lucent 5E
Operating Systems
Linux (all versions, releases and distributions fro m 1.0 up)
Minimum Hardware Requirement
800-Mhz Pentium III
128MB RAM
Available PCI Slot

Warranty:

1 Year Limited Manufacturer Warranty

..jeff..

Quad Span T1 E1 J1 PRI PCI Card + Echo Cancellation EC2128

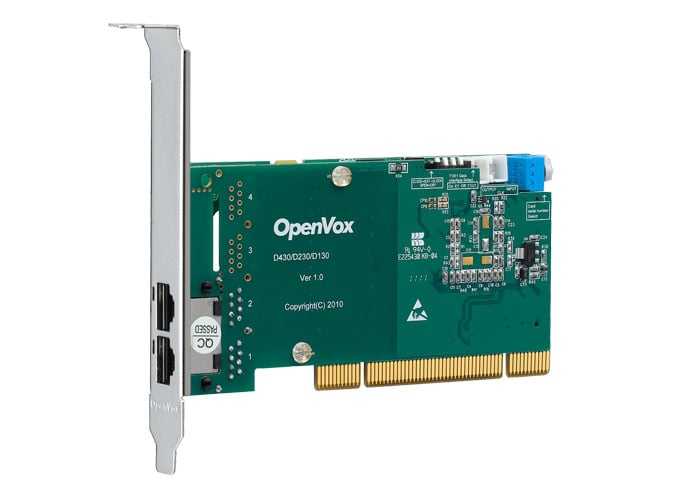

OpenVox D230P Dual Span T1 E1 J1 PRI PCI Card Low Profile Adv

$669.00 $588.72 Save $80.28

Model: D230P
Retail Price: $669.00

Product Spotlight

OpenVox D230P is now the leading 2 port T1/E1/J1 PCI card in the open source industry. It supports up to 64 channels in E1 mode or 48 channels in T1/J1 modes.

Industry 1st adjustable interrupt routing design
Interrupts frequency adjustment
Compatible with All Commercially Available Motherboards
2 T1/E1/J1 ports with PCI interface for high performance voice and data applications

Overview

The D230P is an upgrade product of the D210P. It supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. D230P is supposed to be the most advanced 2 port T1/E1/J1 asterisk^® card with superior quality in the open source community. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.

D230P supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

D230P works with Asterisk^®, Elastix^®, FreeSWITCH^™, PBX in a Flash, trixbox^®, Yate^™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

Voice-over Internet Protocol (VoIP) Services
Complex IVR Trees
"Meet-Me" Bridge Conferencing
Calling Card Platforms
VoIP Gateways (support SIP, H.323, and IAX)
Legacy PBX/IVR Services
Voice/Data Router (replace expensive routers)
PRI/Switch Compatibility - Network or CPE
Technical Specifications
2 T1/E1/J1 ports with PCI interface for high performance voice and data applications
Half-length PRI card
RJ48 connector
Low profile option
32 bit 33MHz PCI and fully PCI 2.3 compliant
32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
Autosense compatibility with 5 V and 3.3 V PCI busses
FPGA design, upgradeable firmware onsite
Power: 2.3W Minimum, 3.5W Maximum at 3.3 V or 5 V.
Operation temperature: 0°C to 50°C
Storage temperature: -65°C to 125°C
Dimension: 2U Form factor: 12*6.4*1.8cm
Weight: 92g
PRI Switch Compatibility
EuroISDN (PRI or PRA) - Q.931/Q.921
Network or CPE
AT&T 4ESS
National ISDN 2
CAS Voice Modes
DMS 100
Lucent 5E
Operating Systems
Linux (all versions, releases and distributions f rom 1.0 up)
Minimum Hardware Requirement
800-Mhz Pentium III
128MB RAM
Available PCI Slot

Warranty:

1 Year Limited Manufacturer Warranty

..jeff..

OpenVox D830E 8 Port T1/E1/J1 PRI PCI-E card Low Profile Adv

$1,599.00 $1,407.12 Save $191.88

Model: D830E
Retail Price: $1,599.00

Product Spotlight

OpenVox D830E is now the leading 8 port T1/E1/J1 PCI-E card in the open source industry. It supports up to 256 channels in E1 mode or 192 channels in T1/J1 modes.

Industry 1st adjustable interrupt routing design
Interrupts frequency adjustment
Compatible with All Commercially Available Motherboards
Eight T1/E1/J1 ports with PCI-E interface for high performance voice and data applications

Overview

The D830E supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. D830E is supposed to be the most advanced 8 port T1/E1/J1 asterisk® card with superior quality in the open source community. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.

D830E supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

D830E works with Asterisk®, Elastix®, FreeSWITCH®, PBX in a Flash, trixbox®, Yate® and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

Voice-over Internet Protocol (VoIP) Services
Complex IVR Trees
"Meet-Me" Bridge Conferencing
Calling Card Platforms
VoIP Gateways (support SIP, H.323, and IAX)
Legacy PBX/IVR Services
Voice/Data Router (replace expensive routers)
PRI/Switch Compatibility - Network or CPE

Technical Specifications

Eight T1/E1/J1 ports
Half-length PRI card
RJ48 connector
Low profile option
FPGA design, upgradeable firmware onsite
Power: 3.6W Minimum, 4.9W Maximum at 3.3 V or 5 V.
Operation temperature: 0°C to 50°C
Storage temperature: -40°C to 125°C
Dimension: 2U Form factor: 12*6.4*1.8cm
Weight: 107g
PRI Switch Compatibility
EuroISDN (PRI or PRA) - Q.931/Q.921
Network or CPE
AT&T 4ESS
National ISDN 2
CAS Voice Modes
DMS 100
Lucent 5E

Certification

FCC Part 15, FCC Part 68, CE(EN55022, EN55024),CS-03 and RoHS Compliant

Operating Systems

Linux (all versions, releases and distributions from 1.0 up)

Minimum Hardware Requirement

800-Mhz Pentium III
128MB RAM
Available PCI-E Slot

Warranty:

1 Year Limited Manufacturer Warranty

..jeff..

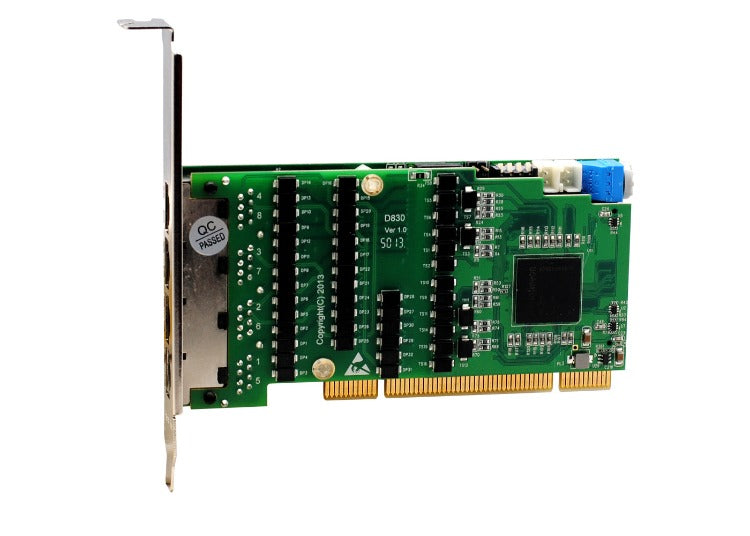

OpenVox D830P 8-Port T1/E1/J1 PCI Card Module

$1,599.00 $1,407.12 Save $191.88

Model: D830P
Retail Price: $1,599.00

Product Spotlight

OpenVox D830P is now the leading 8 port T1/E1/J1 PCI card in the open source industry. It supports up to 256 channels in E1 mode or 192 channels in T1/J1 modes.

Industry 1st adjustable interrupt routing design
Interrupts frequency adjustment
Compatible with All Commercially Available Motherboards
Eight T1/E1/J1 ports with PCI interface for high performance voice and data applications

The D830P supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. D830P is supposed to be the most advanced 8 port T1/E1/J1 asterisk® card with superior quality in the open source community. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.

D830P supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

D830P works with Asterisk®, Elastix®, FreeSWITCH®, PBX in a Flash, trixbox®, Yate® and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

Voice-over Internet Protocol (VoIP) Services
Complex IVR Trees
"Meet-Me" Bridge Conferencing
Calling Card Platforms
VoIP Gateways (support SIP, H.323, and IAX)
Legacy PBX/IVR Services
PRI/Switch Compatibility - Network or CPE

Technical Specifications

Eight T1/E1/J1 ports
Half-length PRI card
RJ48 connector
Low profile option
FPGA design, upgradeable firmware onsite
Power: 3.6W Minimum, 4.9W Maximum at 3.3 V or 5 V.
Operation temperature: 0°C to 50°C
Storage temperature: -40°C to 125°C
Dimension: 2U Form factor: 12*6.4*1.8cm
Weight: 107g
PRI Switch Compatibility
EuroISDN (PRI or PRA) - Q.931/Q.921
Network or CPE
AT&T 4ESS
National ISDN 2
CAS Voice Modes
DMS 100
Lucent 5E

Certification

FCC Part 15, FCC Part 68, CE(EN55022, EN55024),CS-03 and RoHS Compliant

Operating Systems

Linux (all versions, releases and distributions from 1.0 up)

Minimum Hardware Requirement

800-Mhz Pentium III
128MB RAM
Available PCI Slot

Warranty:

1 Year Limited Manufacturer Warranty

..jeff..

OpenVox D830P 8-Port T1/E1/J1 PCI Card Module

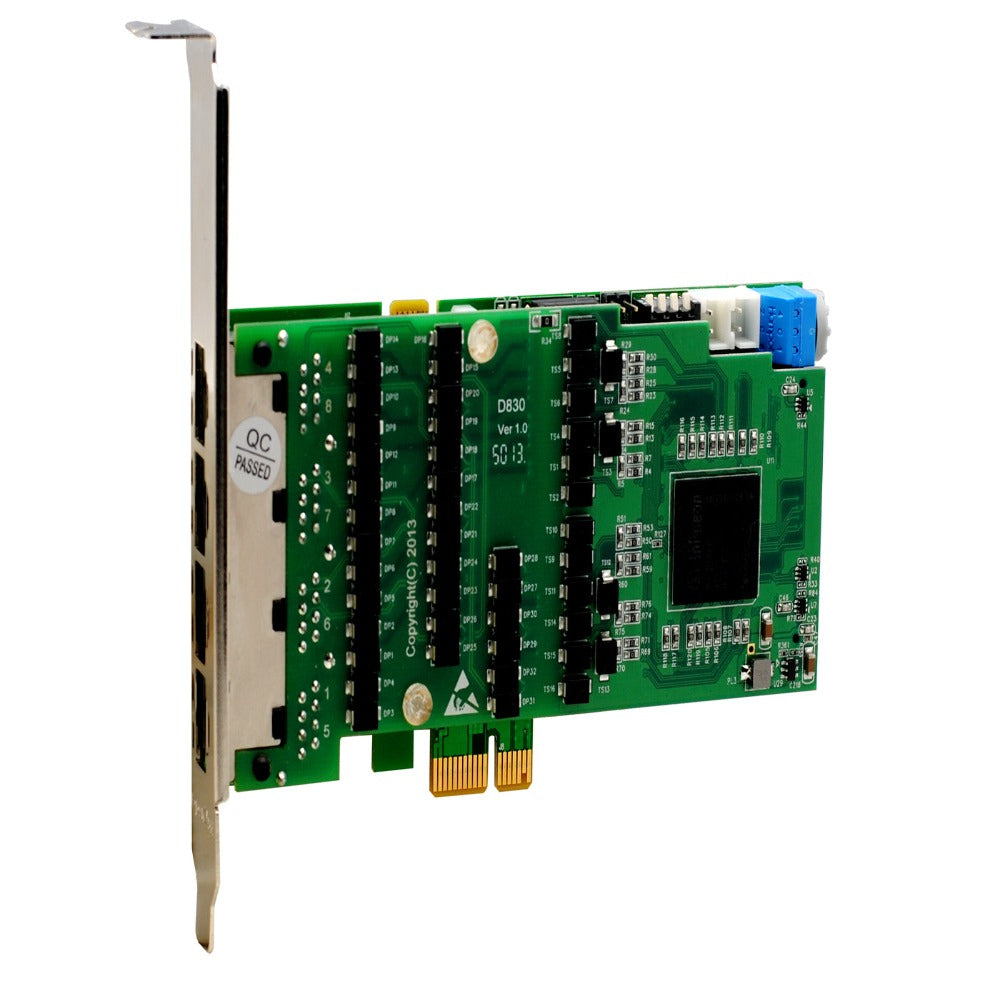

OpenVox DE830E 8 Port T1 E1 J1 PRI PCI-E Card w EC2256 Echo Module Low Profile Adv

$2,399.00 $2,111.12 Save $287.88

Model: DE830E
Retail Price: $2,399.00

Product Spotlight

OpenVox DE830E is now the leading 8 port T1/E1/J1 PCI-E card in the open source industry. It supports up to 256 channels in E1 mode or 192 channels in T1/J1 modes.

Industry 1st adjustable interrupt routing design
Interrupts frequency adjustment
Compatible with All Commercially Available Motherboards
Eight T1/E1/J1 ports with PCI-E interface for high performance voice and data applications
Octasic® Hardware Echo Cancellation Module Available

Overview

The DE830E supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. DE830E is supposed to be the most advanced 8 port T1/E1/J1 asterisk® card with superior quality in the open source community. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.

DE830E supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

DE830E works with Asterisk®, Elastix®, FreeSWITCH®, PBX in a Flash, trixbox®, Yate® and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

Voice-over Internet Protocol (VoIP) Services
Complex IVR Trees
"Meet-Me" Bridge Conferencing
Calling Card Platforms
VoIP Gateways (support SIP, H.323, and IAX)
Legacy PBX/IVR Services
Voice/Data Router (replace expensive routers)
PRI/Switch Compatibility - Network or CPE

Technical Specifications

Eight T1/E1/J1 ports
Half-length PRI card
RJ48 connector
Low profile option
FPGA design, upgradeable firmware onsite
Power: 3.6W Minimum, 4.9W Maximum at 3.3 V or 5 V.
Operation temperature: 0°C to 50°C
Storage temperature: -40°C to 125°C
Dimension: 2U Form factor: 12*6.4*1.8cm
Weight: 107g
PRI Switch Compatibility
EuroISDN (PRI or PRA) - Q.931/Q.921
Network or CPE
AT&T 4ESS
National ISDN 2
CAS Voice Modes
DMS 100
Lucent 5E

Certification

FCC Part 15, FCC Part 68, CE(EN55022, EN55024),CS-03 and RoHS Compliant

Operating Systems

Linux (all versions, releases and distributions from 1.0 up)

Minimum Hardware Requirement

800-Mhz Pentium III
128MB RAM
Available PCI-E Slot

Models:

DE830E comes with Echo Cancellation.
D830E is without Echo Cancellation

Warranty:

1 Year Limited Manufacturer Warranty

..jeff..

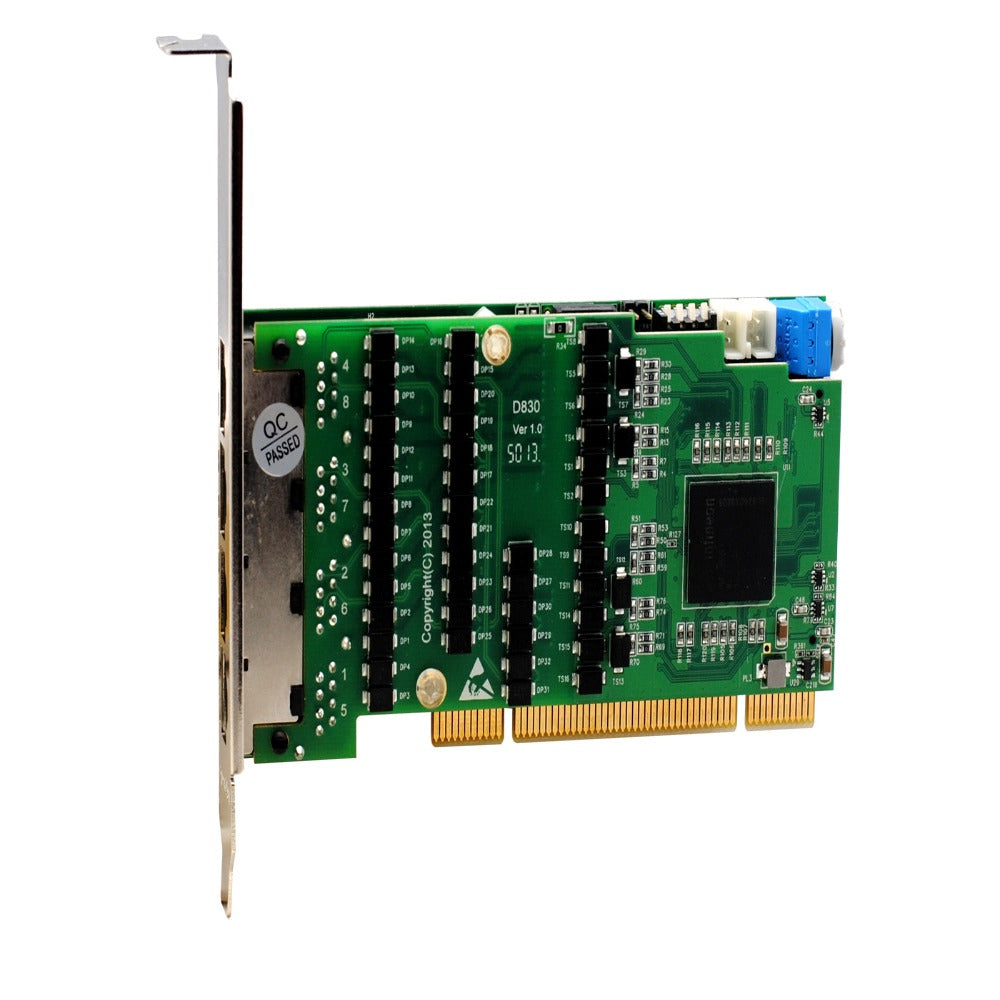

OpenVox DE830P 8 Port T1 E1 J1 PRI PCI Card w EC2256 Echo Module Low Profile Adv

$2,399.00 $2,111.12 Save $287.88

Model: DE830P
Retail Price: $2,399.00

Product Spotlight

OpenVox DE830P is now the leading 8 port T1/E1/J1 PCI card in the open source industry. It supports up to 256 channels in E1 mode or 192 channels in T1/J1 modes.

Industry 1st adjustable interrupt routing design
Interrupts frequency adjustment
Compatible with All Commercially Available Motherboards
Eight T1/E1/J1 ports with PCI interface for high performance voice and data applications
Octasic® Hardware Echo Cancellation Module Available

Overview

The DE830P supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. DE830P is supposed to be the most advanced 8 port T1/E1/J1 asterisk® card with superior quality in the open source community. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.

DE830P supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

DE830P works with Asterisk®, Elastix®, FreeSWITCH®, PBX in a Flash, trixbox®, Yate® and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

Voice-over Internet Protocol (VoIP) Services
Complex IVR Trees
"Meet-Me" Bridge Conferencing
Calling Card Platforms
VoIP Gateways (support SIP, H.323, and IAX)
Legacy PBX/IVR Services
Voice/Data Router (replace expensive routers)
PRI/Switch Compatibility - Network or CPE

Technical Specifications

Eight T1/E1/J1 ports
Half-length PRI card
RJ48 connector
Low profile option
FPGA design, upgradeable firmware onsite
Power: 3.6W Minimum, 4.9W Maximum at 3.3 V or 5 V.
Operation temperature: 0°C to 50°C
Storage temperature: -40°C to 125°C
Dimension: 2U Form factor: 12*6.4*1.8cm
Weight: 107g
PRI Switch Compatibility
EuroISDN (PRI or PRA) - Q.931/Q.921
Network or CPE
AT&T 4ESS
National ISDN 2
CAS Voice Modes
DMS 100
Lucent 5E

Certification

FCC Part 15, FCC Part 68, CE(EN55022, EN55024),CS-03 and RoHS Compliant

Operating Systems

Linux (all versions, releases and distributions from 1.0 up)

Minimum Hardware Requirement

800-Mhz Pentium III
128MB RAM
Available PCI Slot

Warranty:

1 Year Limited Manufacturer Warranty

..jeff..

OpenVox DE830P 8-Port T1/E1/J1 PCI Card Module

OpenVox DE430E Quad Span T1 E1 J1 PRI PCI-E Card w Echo EC2128 Module Low Profile Adv

$1,799.00 $1,583.12 Save $215.88

Model: DE430E
Retail Price: $1,799.00

Product Spotlight

OpenVox DE430E is now the leading 4 port T1/E1/J1 PCI-E card in the open source industry. It takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality over T1, E1, and J1 interface.

Industry 1st adjustable interrupt routing design
Interrupts frequency adjustment
Compatible with All Commercially Available Motherboards
Four T1/E1/J1 ports with PCI interface for high performance voice and data applications
Octasic® Hardware Echo Cancellation Module Available

Overview

The DE430E is an upgrade product of the DE410E. It’s supposed to be the most advanced 4 port T1/E1/J1 asterisk® card with superior quality in the open source community. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.

DE430E offers an on-board Octasic® DSP-based echo cancellation module. It supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. The Octasic® DSP-based EC module enables users to eliminate echo tails up to 128ms or 1024 taps across all 128 channels in E1 mode or 96 channels in T1/J1 modes. Further, this module takes advantage of the Octasic® Voice Quality Enhancement to provide superior sound quality on all calls.

DE430E supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

DE430E works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

Voice-over Internet Protocol (VoIP) Services

Complex IVR Trees
"Meet-Me" Bridge Conferencing
Calling Card Platforms
VoIP Gateways (support SIP, H.323, and IAX)
Legacy PBX/IVR Services
Voice/Data Router (replace expensive routers)
PRI/Switch Compatibility - Network or CPE
Technical Specifications
Four T1/E1/J1 ports with PCI interface for high performance voice and data applications
Half-length PRI card
RJ48 connector
Low profile option
FPGA design, upgradeable firmware onsite
Power: 2.6W Minimum, 3.9W Maximum
Operation temperature: 0°C to 50°C
Storage temperature: -65°C to 125°C
Dimension: 2U Form factor: 12*6.4*1.8cm
Weight: 300g
Optional Octasic® DSP Echo Cancellation Module—EC2128
128ms tail/channel (on all channel densities)
Octasic® Music Protection
Adaptive Noise Reduction
Automatic Level Control (G.169)
Field upgradeable algorithm
V.25 / V.8 answer tone (w/ and w/o phase reversal)
DTMF as per Q.24
No CPU load as a result of echo cancellation.
Does not increase the physical size of the card, and no additional slot is required
EC2128 power: 0.33W/3.5W
Storage temperature: -40°C to 75°C
PRI Switch Compatibility
EuroISDN (PRI or PRA) - Q.931/Q.921
Network or CPE
AT&T 4ESS
National ISDN 2
CAS Voice Modes
DMS 100
Lucent 5E
Minimum Hardware Requirement
800-Mhz Pentium III
128MB RAM
Available PCI-E x1 Slot

Warranty:

1 Year Limited Manufacturer Warranty

..jeff..

Quad Span T1 E1 J1 PRI PCI-E Card + Echo Cancellation EC2128

OpenVox DE230E Dual Span T1 E1 J1 PRI PCI-E Card w Echo EC2064 Module Low Profile Adv

$1,099.00 $967.12 Save $131.88

Model: DE230E
Retail Price: $1,099.00

Product Spotlight

OpenVox DE230E is now the leading 2 port T1/E1/J1 PCI-E card in the open source industry. It takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality over T1, E1, and J1 interface.

Industry 1st adjustable interrupt routing design

Interrupts frequency adjustment
Compatible with All Commercially Available Motherboards
2 T1/E1/J1 ports with PCI interface for high performance voice and data applications
Octasic® Hardware Echo Cancellation Module Available

Overview

The DE230E is an upgrade product of the DE210E. It’s supposed to be the most advanced 2 port T1/E1/J1 asterisk® card with superior quality in the open source community. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.

DE230E offers an on-board Octasic® DSP-based echo cancellation module. It supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. The Octasic® DSP-based EC module enables users to eliminate echo tails up to 128ms or 1024 taps across all 64 channels in E1 mode or 48 channels in T1/J1 modes. Further, this module takes advantage of the Octasic® Voice Quality Enhancement to provide superior sound quality on all calls.

DE230E supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

DE230E works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications
Voice-over Internet Protocol (VoIP) Services
Complex IVR Trees
"Meet-Me" Bridge Conferencing
Calling Card Platforms
VoIP Gateways (support SIP, H.323, and IAX)
Legacy PBX/IVR Services
Voice/Data Router (replace expensive routers)
PRI/Switch Compatibility - Network or CPE
Technical Specifications
2 T1/E1/J1 ports with PCI interface for high performance voice and data applications
Half-length PRI card
RJ48 connector
Low profile option
FPGA design, upgradeable firmware onsite
Power: 2.3W Minimum, 3.5W Maximum
Operation temperature: 0°C to 50°C
Storage temperature: -65°C to 125°C
Dimension: 2U Form factor: 12*6.4*1.8cm
Weight: 95g
Optional Octasic® DSP Echo Cancellation Module—EC2064
128ms tail/channel (on all channel densities)
Octasic® Music Protection
Adaptive Noise Reduction
Automatic Level Control (G.169)
Field upgradeable algorithm
V.25 / V.8 answer tone (w/ and w/o phase reversal)
DTMF as per Q.24
No CPU load as a result of echo cancellation.
Does not increase the physical size of the card, and no additional slot is required
EC2064 power: 0.33W/3.5W
Storage temperature: -40°C to 75°C
PRI Switch Compatibility
EuroISDN (PRI or PRA) - Q.931/Q.921
Network or CPE
AT&T 4ESS
National ISDN 2
CAS Voice Modes
DMS 100
Lucent 5E
Operating Systems
Linux (all versions, releases and distributions f rom 1.0 up)
Minimum Hardware Requirement
800-Mhz Pentium III
128MB RAM
Available PCI-E x1 Slot

Warranty:

1 Year Limited Manufacturer Warranty

..jeff..

Dual Span T1 E1 J1 PRI PCI-E Card + Echo Cancellation EC2064

OpenVox DE230P Dual Span T1 E1 J1 PRI PCI Card w Echo EC2064 Module Low Profile Adv

$1,099.00 $967.12 Save $131.88

Model: DE230P
Retail Price: $1,099.00

Product Spotlight

OpenVox DE230P is now the leading 2 port T1/E1/J1 PCI card in the open source industry. It takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality over T1, E1, and J1 interface.

Industry 1st adjustable interrupt routing design
Interrupts frequency adjustment
Compatible with All Commercially Available Motherboards
2 T1/E1/J1 ports with PCI interface for high performance voice and data applications
Octasic® Hardware Echo Cancellation Module Available

Overview

The DE230P is an upgrade product of the DE210P. It’s supposed to be the most advanced 2 port T1/E1/J1 asterisk® card with superior quality in the open source community. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.

DE230P offers an on-board Octasic® DSP-based echo cancellation module. It supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. The Octasic® DSP-based EC module enables users to eliminate echo tails up to 128ms or 1024 taps across all 64 channels in E1 mode or 48 channels in T1/J1 modes. Further, this module takes advantage of the Octasic® Voice Quality Enhancement to provide superior sound quality on all calls.

DE230P supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

DE230P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

Voice-over Internet Protocol (VoIP) Services
Complex IVR Trees
"Meet-Me" Bridge Conferencing
Calling Card Platforms
VoIP Gateways (support SIP, H.323, and IAX)
Legacy PBX/IVR Services
Voice/Data Router (replace expensive routers)
PRI/Switch Compatibility - Network or CPE
Technical Specifications
2 T1/E1/J1 ports with PCI interface for high performance voice and data applications
Half-length PRI card
RJ48 connector
Low profile option
32 bit 33MHz PCI and fully PCI 2.3 compliant
32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
Autosense compatibility with 5 V and 3.3 V PCI busses
FPGA design, upgradeable firmware onsite
Power: 2.3W Minimum, 3.5W Maximum at 3.3 V or 5 V.
Operation temperature: 0°C to 50°C
Storage temperature: -65°C to 125°C
Dimension: 2U Form factor: 12*6.4*1.8cm
Weight: 94g
Optional Octasic® DSP Echo Cancellation Module—EC2064
128ms tail/channel (on all channel densities)
Octasic® Music Protection
Adaptive Noise Reduction
Automatic Level Control (G.169)
Field upgradeable algorithm
V.25 / V.8 answer tone (w/ and w/o phase reversal)
DTMF as per Q.24
No CPU load as a result of echo cancellation.
Does not increase the physical size of the card, and no additional slot is required
EC2064 power: 0.33W/3.5W
Storage temperature: -40°C to 75°C
PRI Switch Compatibility
EuroISDN (PRI or PRA) - Q.931/Q.921
Network or CPE
AT&T 4ESS
National ISDN 2
CAS Voice Modes
DMS 100
Lucent 5E
Operating Systems
Linux (all versions, releases and distributions f rom 1.0 up)
Minimum Hardware Requirement
800-Mhz Pentium III
128MB RAM
Available PCI Slot

Warranty:

1 Year Limited Manufacturer Warranty

..jeff..

Dual Span T1 E1 J1 PRI PCI Card + Echo Cancellation EC2064

OpenVox D430P Quad Span T1 E1 J1 PRI PCI Card Low Profile Adv

$1,099.00 $967.12 Save $131.88

Model: D430P
Retail Price: $1,099.00

Product Spotlight

OpenVox D430P is now the leading 4 port T1/E1/J1 PCI card in the open source industry. It supports up to 128 channels in E1 mode or 96 channels in T1/J1 modes.

Industry 1st adjustable interrupt routing design
Interrupts frequency adjustment
Compatible with All Commercially Available Motherboards
Four T1/E1/J1 ports with PCI interface for high performance voice and data applications

Overview

The D430P is an upgrade product of the D410P. It supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. D430P is supposed to be the most advanced 4 port T1/E1/J1 asterisk^® card with superior quality in the open source community. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.

D430P supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

D430P works with Asterisk^®, Elastix^®, FreeSWITCH^™, PBX in a Flash, trixbox^®, Yate^™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

Voice-over Internet Protocol (VoIP) Services
Complex IVR Trees
"Meet-Me" Bridge Conferencing
Calling Card Platforms
VoIP Gateways (support SIP, H.323, and IAX)
Legacy PBX/IVR Services
Voice/Data Router (replace expensive routers)
PRI/Switch Compatibility - Network or CPE
Technical Specifications
Four T1/E1/J1 ports with PCI interface for high performance voice and data applications
Half-length PRI card
RJ48 connector
Low profile option
32 bit 33MHz PCI and fully PCI 2.3 compliant
32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
Autosense compatibility with 5 V and 3.3 V PCI busses
FPGA design, upgradeable firmware onsite
Power: 2.6W Minimum, 3.9W Maximum at 3.3 V or 5 V.
Operation temperature: 0°C to 50°C
Storage temperature: -65°C to 125°C
Dimension: 2U Form factor: 12*6.4*1.8cm
Weight: 96g
PRI Switch Compatibility
EuroISDN (PRI or PRA) - Q.931/Q.921
Network or CPE
AT&T 4ESS
National ISDN 2
CAS Voice Modes
DMS 100
Lucent 5E
Operating Systems
Linux (all versions, releases and distributions f rom 1.0 up)
Minimum Hardware Requirement
800-Mhz Pentium III
128MB RAM
Available PCI Slot

Warranty:

1 Year Limited Manufacturer Warranty

..jeff..

Model: D130ERetail Price: $399.00

Model: D230ERetail Price: $669.00

Model: D130PRetail Price: $399.00

Model: D430ERetail Price: $1,099.00

Model: DE130ERetail Price: $449.00

Model: DE130PRetail Price: $449.00

Model: DE430PRetail Price: $1,799.00

Model: D230PRetail Price: $669.00

Model: D830ERetail Price: $1,599.00

Model: D830PRetail Price: $1,599.00

Model: DE830ERetail Price: $2,399.00

Model: DE830PRetail Price: $2,399.00

Model: DE430ERetail Price: $1,799.00

Model: DE230ERetail Price: $1,099.00

Model: DE230PRetail Price: $1,099.00

Model: D430PRetail Price: $1,099.00

Model: D130E
Retail Price: $399.00

Model: D230E
Retail Price: $669.00

Model: D130P
Retail Price: $399.00

Model: D430E
Retail Price: $1,099.00

Model: DE130E
Retail Price: $449.00

Model: DE130P
Retail Price: $449.00

Model: DE430P
Retail Price: $1,799.00

Model: D230P
Retail Price: $669.00

Model: D830E
Retail Price: $1,599.00

Model: D830P
Retail Price: $1,599.00

Model: DE830E
Retail Price: $2,399.00

Model: DE830P
Retail Price: $2,399.00

Model: DE430E
Retail Price: $1,799.00

Model: DE230E
Retail Price: $1,099.00

Model: DE230P
Retail Price: $1,099.00

Model: D430P
Retail Price: $1,099.00
