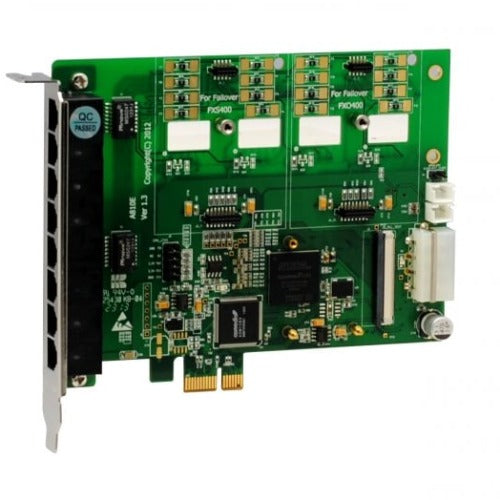

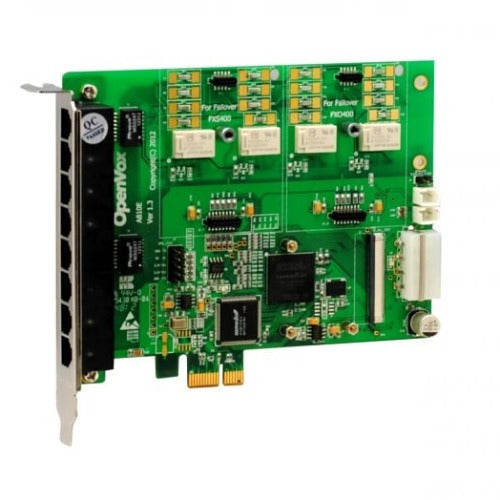

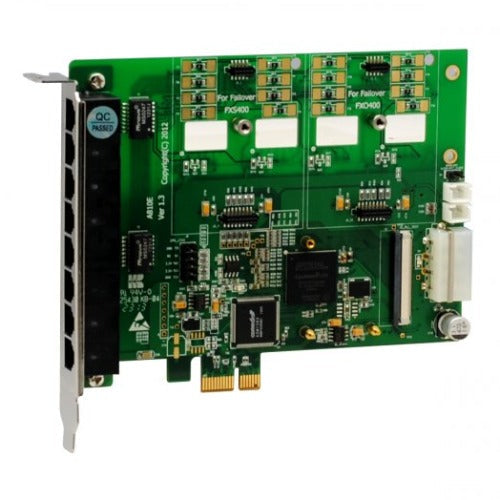

Model: A810E
Retail Price: $150

OpenVox A810P/E Series Card is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards

A810 Series Card is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The A810P/E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

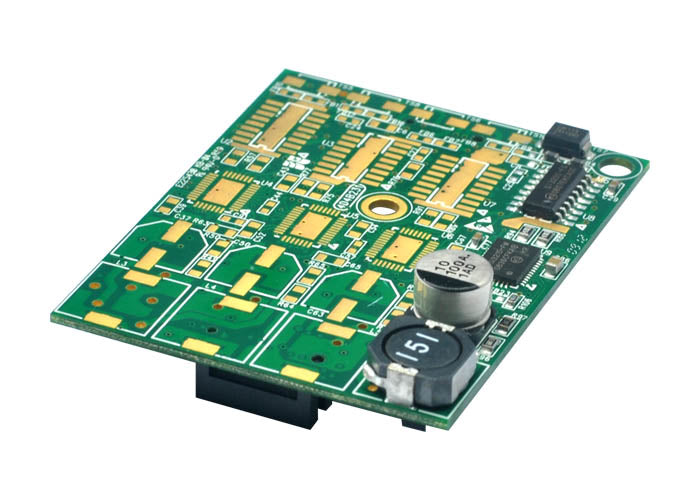

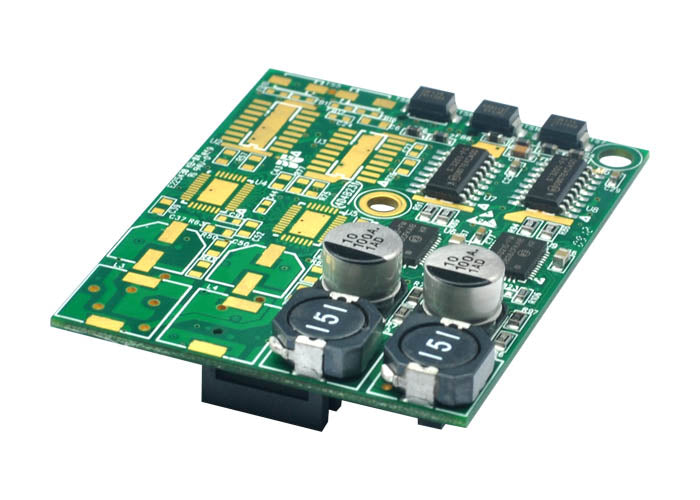

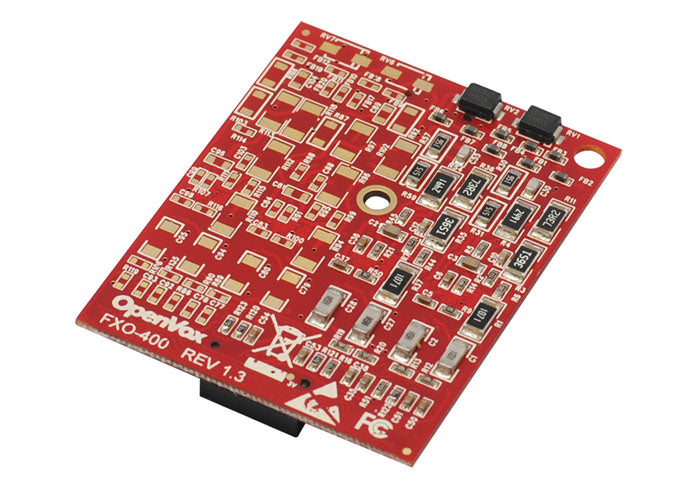

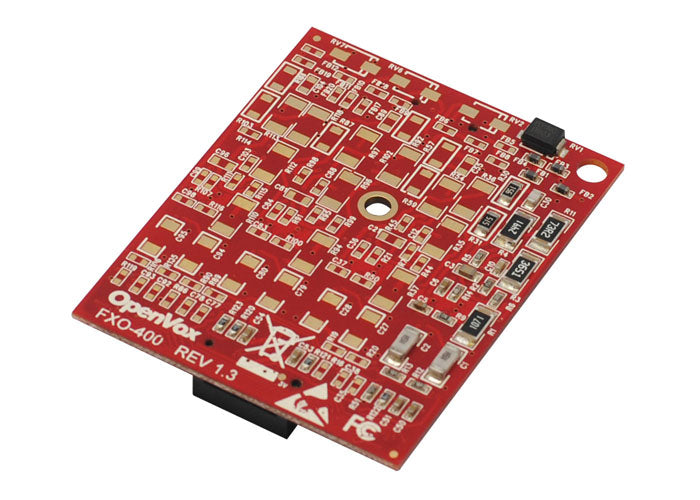

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses compatible
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*106.7mm*16mm
• Weight: 85g

• Linux (all versions, releases and distributions from 1.0 up)

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot

• FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant

Warranty: One Year Limited Manufacturer Warranty

..darwin..

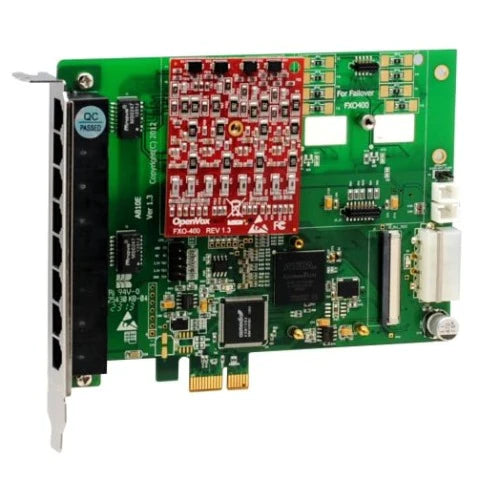

Model: A810E01
Retail Price: $1,115

OpenVox A810P/E Series Card is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards

A810 Series Card is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The A810P/E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses compatible
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*106.7mm*16mm
• Weight: 85g

• Linux (all versions, releases and distributions from 1.0 up)

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot

• FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant

Warranty: One Year Limited Manufacturer Warranty

..darwin..

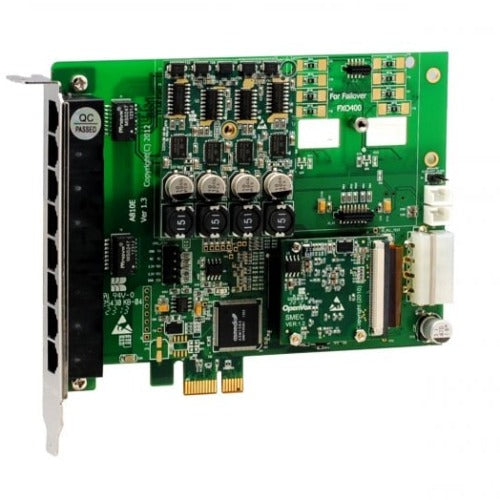

Model: A810E02
Retail Price: $1,265

OpenVox A810P/E Series Card is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards

A810 Series Card is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The A810P/E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses compatible
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*106.7mm*16mm
• Weight: 85g

• Linux (all versions, releases and distributions from 1.0 up)

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot

• FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant

Warranty: One Year Limited Manufacturer Warranty

..darwin..

Model: A810E10
Retail Price: $1,115

OpenVox A810P/E Series Card is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards

A810 Series Card is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The A810P/E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses compatible
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*106.7mm*16mm
• Weight: 85g

• Linux (all versions, releases and distributions from 1.0 up)

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot

• FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant

Warranty: One Year Limited Manufacturer Warranty

..darwin..

Model: A810E11
Retail Price: $1,265

OpenVox A810P/E Series Card is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards

A810 Series Card is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The A810P/E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses compatible
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*106.7mm*16mm
• Weight: 85g

• Linux (all versions, releases and distributions from 1.0 up)

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot

• FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant

Warranty: One Year Limited Manufacturer Warranty

..darwin..

Model: A810E20
Retail Price: $1,265

OpenVox A810P/E Series Card is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards

A810 Series Card is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The A810P/E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses compatible
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*106.7mm*16mm
• Weight: 85g

• Linux (all versions, releases and distributions from 1.0 up)

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot

• FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant

Warranty: One Year Limited Manufacturer Warranty

..darwin..

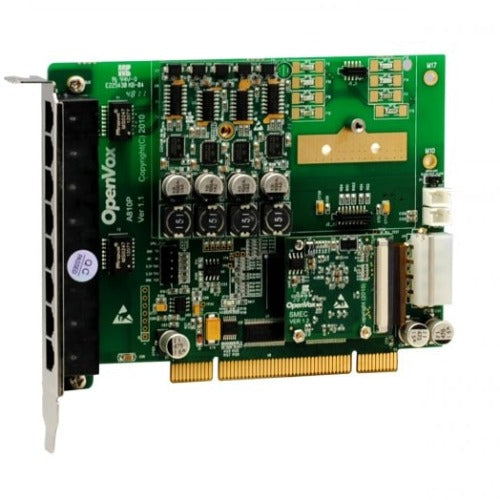

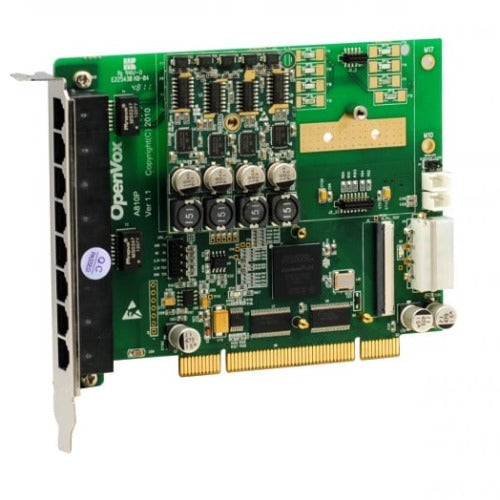

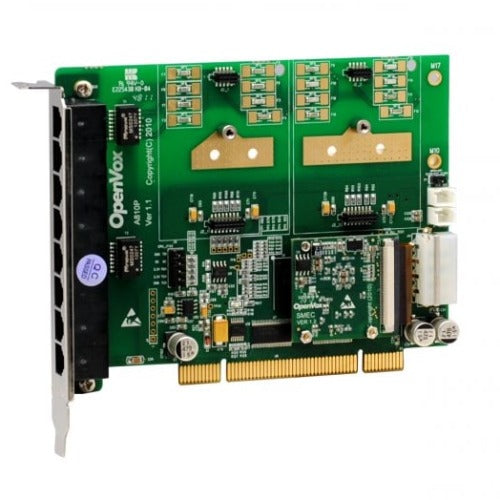

Model: A810P
Retail Price: $150

OpenVox A810P/E Series Card is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards

A810 Series Card is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The A810P/E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses compatible
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*106.7mm*16mm
• Weight: 85g

• Linux (all versions, releases and distributions from 1.0 up)

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot

• FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant

..darwin..

Model: A810P01
Retail Price: $1,115

OpenVox A810P/E Series Card is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards

A810 Series Card is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The A810P/E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses compatible
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*106.7mm*16mm
• Weight: 85g

• Linux (all versions, releases and distributions from 1.0 up)

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot

• FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant

Warranty: One Year Limited Manufacturer Warranty

A810P/E Series Model Configuration

..darwin..

Model: A810P02
Retail Price: $1,265

OpenVox A810P/E Series Card is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards

A810 Series Card is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The A810P/E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses compatible
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*106.7mm*16mm
• Weight: 85g

• Linux (all versions, releases and distributions from 1.0 up)

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot

• FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant

Warranty: One Year Limited Manufacturer Warranty

..darwin..

OpenVox A810P/E Series Card is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards

A810 Series Card is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The A810P/E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses compatible
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*106.7mm*16mm
• Weight: 85g

• Linux (all versions, releases and distributions from 1.0 up)

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot

• FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant

Warranty: One Year Limited Manufacturer Warranty

..darwin..

Model: A810P11
Retail Price: $1,265

OpenVox A810P/E Series Card is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards

A810 Series Card is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The A810P/E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses compatible
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*106.7mm*16mm
• Weight: 85g

• Linux (all versions, releases and distributions from 1.0 up)

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot

• FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant

Warranty: One Year Limited Manufacturer Warranty

A810P/E Series Model Configuration

..darwin..

Model: A810P20
Retail Price: $1,265

OpenVox A810P/E Series Card is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards

A810 Series Card is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The A810P/E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses compatible
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*106.7mm*16mm
• Weight: 85g

• Linux (all versions, releases and distributions from 1.0 up)

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot

• FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant

Warranty: One Year Limited Manufacturer Warranty

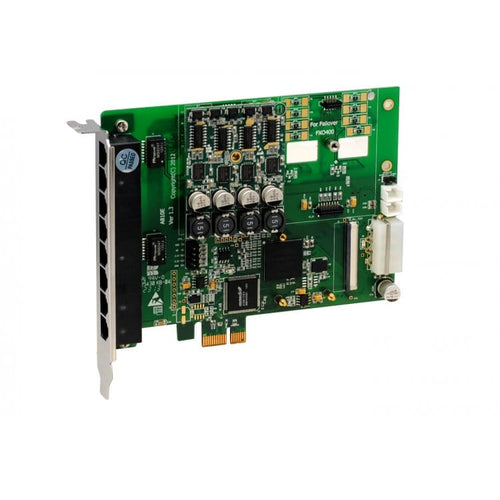

Model: AE810E
Retail Price: $399

OpenVox A810P/E Series Card is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards

A810 Series Card is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The A810P/E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses compatible
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*106.7mm*16mm
• Weight: 85g

• Linux (all versions, releases and distributions from 1.0 up)

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot

• FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant

Warranty: One Year Limited Manufacturer Warranty

..darwin..

Model: AE810E01
Retail Price: $1,364

OpenVox A810P/E Series Card is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards

A810 Series Card is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The A810P/E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses compatible
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*106.7mm*16mm
• Weight: 85g

• Linux (all versions, releases and distributions from 1.0 up)

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot

• FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant

Warranty: One Year Limited Manufacturer Warranty

..darwin..

OpenVox A810P/E Series Card is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards

A810 Series Card is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The A810P/E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses compatible
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*106.7mm*16mm
• Weight: 85g

• Linux (all versions, releases and distributions from 1.0 up)

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot

• FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant

Warranty: One Year Limited Manufacturer Warranty

..darwin..

Model: AE810E10
Retail Price: $1,364

OpenVox A810P/E Series Card is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards

A810 Series Card is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The A810P/E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses compatible
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*106.7mm*16mm
• Weight: 85g

• Linux (all versions, releases and distributions from 1.0 up)

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot

• FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant

Warranty: One Year Limited Manufacturer Warranty

..darwin..

Model: AE810E11
Retail Price: $1,514

OpenVox A810P/E Series Card is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards

A810 Series Card is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The A810P/E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses compatible
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*106.7mm*16mm
• Weight: 85g

• Linux (all versions, releases and distributions from 1.0 up)

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot

• FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant

Warranty: One Year Limited Manufacturer Warranty

..darwin..

Model: AE810E20
Retail Price: $1,514

OpenVox A810P/E Series Card is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards

A810 Series Card is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The A810P/E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses compatible
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*106.7mm*16mm
• Weight: 85g

• Linux (all versions, releases and distributions from 1.0 up)

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot

• FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant

Warranty: One Year Limited Manufacturer Warranty

..darwin..
