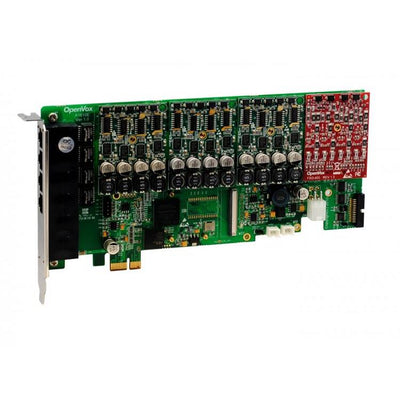

OpenVox A1610E 16 Port Analog PCI-E Card
Regular price $200.00 Sale price $176.00 Save $24.00Model: A1610E
Retail Price: $200
Product Spotlight
OpenVox A1610P/E Series Card takes full advantage of the optional Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality on both FXO and FXS interfaces in all 16 ports.
- Adjustable Interrupt Routing Design
- Interrupts Frequency Adjustment
- Up to 16 Simultaneous PSTN Calls (Per PCIe Slot)
- Compatible with All Commercially Available Motherboards
- Octasic® Hardware Echo Cancellation Module Available
Overview
OpenVox A1610P/E Series Card is a new generation analog card with the optional Octasic® Hardware Echo Cancellation Module on board. With the interchangeable quad-FXS and quad-FXO modules, this can eliminate the requirement for separate channel banks or access gateways.
Once the Octasic® DSP module EC2032 is added to the AE1610P/E, please make sure you are ready to say goodbye to the poor voice quality and echo echo echo in your phone system. No one will even get a chance to hear that any more! The AE1610E with Octasic DSP module will support Telco-grade hardware echo cancellation on all channels, up to the card’s maximum configuration in 16 ports with no additional CPU load.
The OpenVox A1610P/E Series Card works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.
Target Applications
- Channel Bank Replacement / Alternative
- Small Office Home Office (SOHO) applications
- Small and Medium Business (SMB) applications
- Gateway Termination to analog telephones/lines
Services And Features
- Caller ID and Call Waiting Caller ID
- ADSI Telephones
- Loopstart Signaling Support
Technical Specifications
- Up to 16 ports through a combination of FXS400 and FXO400 modules
- Full-length analog card
- Up to 4 quad FXS or FXO modules
- RJ45 connector
- FPGA design, upgradeable firmware onsite
- Power: 7.83W Minimum, 57.03W Maximum
- Operation temperature: 0°C to 50 °C
- Storage temperature: -40°C to 125°C
- Size: 21.9*11.6*1.8cm
- Weight: 128g
Optional Octasic® DSP Echo Cancellation Module — EC2032
- 1024 taps/128 ms tail/channel (on all channel densities)
- Octasic® music protection
- Automatic level control (G.169)
- Field upgradeable algorithm
- V.25 / V.8 answer tone
- DTMF as per Q.24
- No CPU load as a result of echo cancellation.
- Does not increase the physical size of the card, and no additional slot is required
- EC2032 (SMEC V1.1) power: 3.83W
Operating Systems
Linux (all versions, releases and distributions from 1.0 up)
Minimum Requirement
800-Mhz Pentium III
128MB RAM
Available PCI Slot
1 FXS400 or 1 FXO400 Module
Certification
FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant
Warranty: One Year Limited Manufacturer Warranty
A1610P/E Series Model Configuration
| A1610P/E | FXS400 | FXO400 | EC2032 | AE1610P/E | FXS400 | FXO400 | EC2032 | |
|---|---|---|---|---|---|---|---|---|
| A1610P/E | 0 | 0 | 0 | AE1610P/E | 0 | 0 | 1 | |

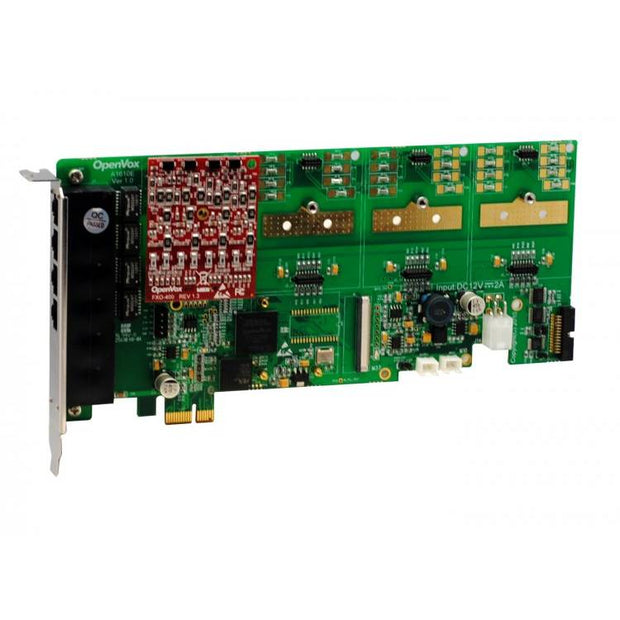

| A1610P/E01 | 0 | 1 | 0 | AE1610P/E01 | 0 | 1 | 1 | |
| A1610P/E02 | 0 | 2 | 0 | AE1610P/E02 | 0 | 2 | 1 | |
| A1610P/E03 | 0 | 3 | 0 | AE1610P/E03 | 0 | 3 | 1 | |
| A1610P/E04 | 0 | 4 | 0 | AE1610P/E04 | 0 | 4 | 1 | |
| A1610P/E10 | 1 | 0 | 0 | AE1610P/E10 | 1 | 0 | 1 | |
| A1610P/E20 | 2 | 0 | 0 | AE1610P/E20 | 2 | 0 | 1 | |
| A1610P/E30 | 3 | 0 | 0 | AE1610P/E30 | 3 | 0 | 1 | |
| A1610P/E40 | 4 | 0 | 0 | AE1610P/E40 | 4 | 0 | 1 | |

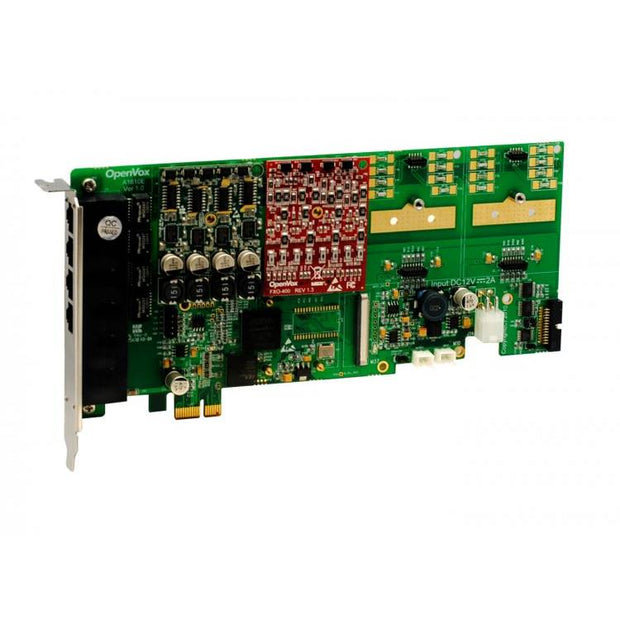

| A1610P/E11 | 1 | 1 | 0 | AE1610P/E11 | 1 | 1 | 1 | |
| A1610P/E12 | 1 | 2 | 0 | AE1610P/E12 | 1 | 2 | 1 | |

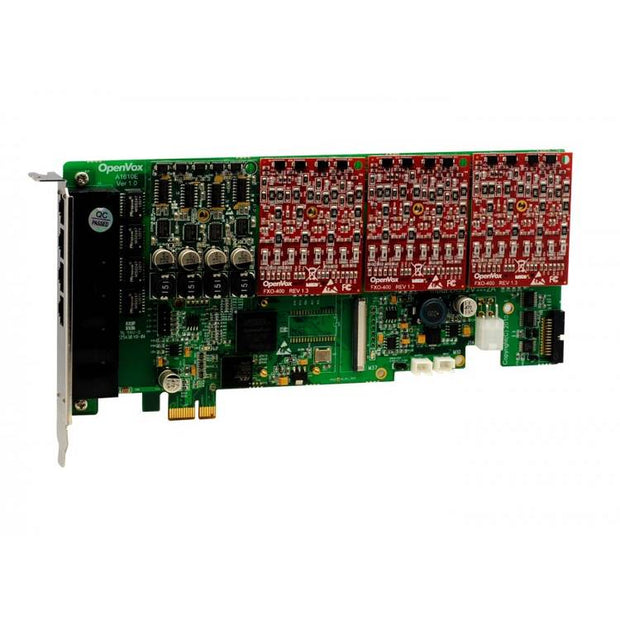

| A1610P/E13 | 1 | 3 | 0 | AE1610P/E13 | 1 | 3 | 1 | |
| A1610P/E21 | 2 | 1 | 0 | AE1610P/E21 | 2 | 1 | 1 | |

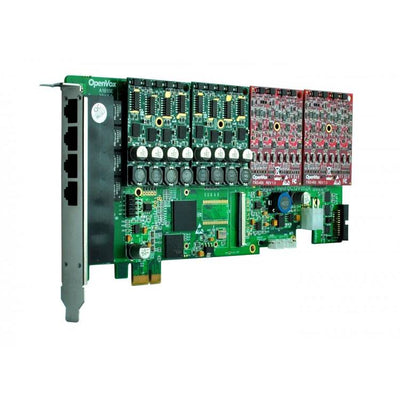

| A1610P/E22 | 2 | 2 | 0 | AE1610P/E22 | 2 | 2 | 1 | |
| A1610P/E31 | 3 | 1 | 0 | AE1610P/E31 | 3 | 1 | 1 |
