3 products

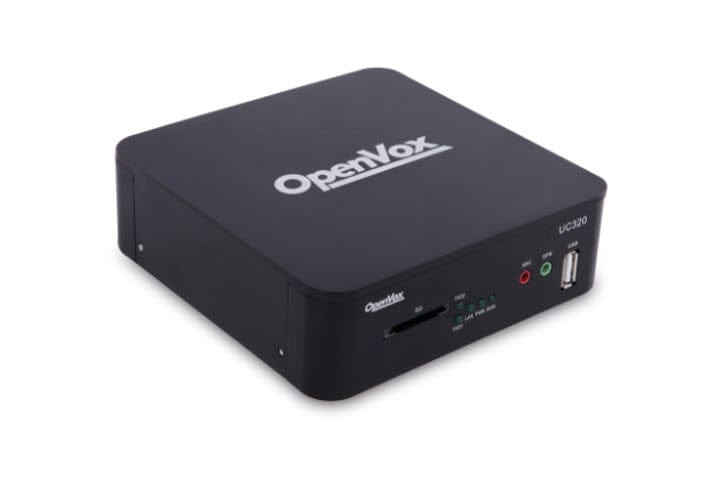

OpenVox UC300 SOHO Desktop 60 Users PBX 1 FXS 1 FXO
Regular price $399.00 Sale price $351.12 Save $47.88
Model UC300-A11EM1
Retail Price: 399.00
Description:
Whether you’re an SMB looking for a cost-effective, scalable phone system or a SOHO requiring an advanced unified communications system, OpenVox UC300 Series will be your first choice. With two distinct offerings, UC300-A11EM1/UC300-A20EM1 and UC300-A41EM1, OpenVox offers a complete set of products designed to meet your communication demand.
UC300 Series support analog FXO/FXS ports with up to 300 simultaneous calls in one single device. They are developed with a wide selection of codecs and signaling protocols, including ADPCM，G.711A，G.711U，G.722，G.723.1，G.726，G.728，G.729，ILBC. Taking full advantages of open source platform, the UC300 Series support industry standard SIP trunks, IAX2 trunks, analog PSTN trunks, and analog station trunks. What’s more, it is very convenient for users to increase ports to expand the system.
|
Model |
FXO |
FXS |
|
UC300-A11EM1 |
1 |
1 |
Technical Specification
- Up to 800 extension register
- 100 concurrent calls with G.729 codec
- 300 concurrent calls with G.711 codec
- Recording: 86,000 mins (.gsm); 9,500 mins (.wav)
- Voicemail: 86,000 mins (.gsm); 9,500 mins (.wav)
- Network Interface: 1×10/100M LAN port
- USB Port: 1×USB 2.0 for external storage or disaster recovery system
- External Storage: 1×SD slot, support up to 128G
- Telephony Interfaces: FXS/FXO interface, Optional
- Storage: 16GB Onboard Flash
- RAM: DDR3 1GB
- 1 MIC Interface: Audio Input
- 1 SPK Interface: Audio Output
- Power Consumption: 12V/.08A, 9.6W Maximum
- Failover Function (not support with 2 FXO model)
- Operational Temperature: 0°C to 50 °C
- Storage Temperature: -20 °C to 65 °C
- Size: 130*130*40mm
- Weight: 530g
Internet
- DHCP Server
- DHCP Client List
- Assign IP Address to Host
Security
- Firewall
- Audit
- Weak keys
Features:
EMAIL
PBX
- Supported codecs: ADPCM, G.711(A-Law & u-Law), G.722, G.723.1(pass through), G.726, G.728, G.729, GSM, iLBC(optional) among others.
- Support from analog interfaces such as FXS/FXO(PSTN/POTS)
- SIP and IAX2 support
- Incoming and outgoing routes with support for dial pattern matching
- Support for paging and intercom
- Web-based operator panel
- DISA(Direct Inward System Access)
- Call detail record(CDR) report
- Billing and consumption report
- Distributed DialPlan with dundi
- Call recording, Call parking, call queues, Voicemail, Conference
- Echo canceller
- Callback support
- Flexible and configuration IVR
- Support for PIN sets
- Support for time conditions
- VOIP provider configuration
- Support for follow-me
- Support for ring groups
- Support for video-phones
- Channel usage reports
- Mail server with multi-domain support
- Based in postfix for high email volume
- Remote SMTP Module
- Web based email client
- Support for quotas
- Antispam support
- Support for mail relay
- Email list management
FAX
- Fax to email application
- Fax visor with downloaded PDFs
- Can be integrated with Winprint Hylafax
- Fax send through Web Interface
- Fax to email customization
- Access control for fax clients
CENTRAL
- System resources monitor
- Backup Restore Validation
- Network configurator
- Heartbeat module
- Configurable server date, time and timezone
- Backup/restore support via web
- Server shutdown from the web
- DHCP server for dynamic IP
- Access control to the interface based on ACLs
Warranty:
- 1 Year Limited Manufacturer Warranty
..jeff..

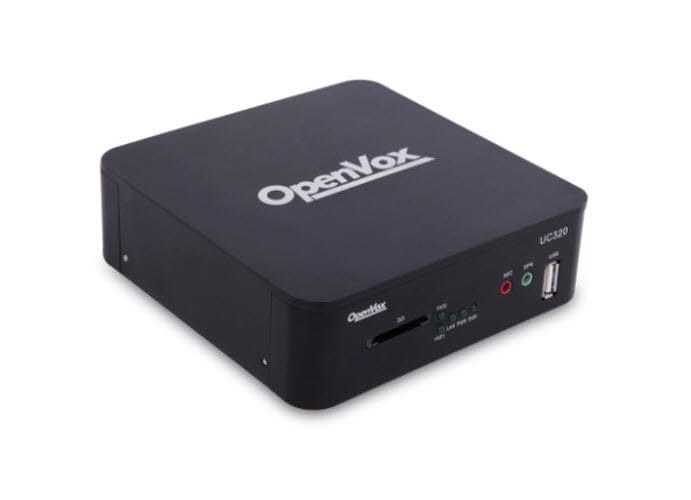

OpenVox UC300 SOHO Desktop 60 Users PBX with 1 FXS 4 FXO
Regular price $599.00 Sale price $527.12 Save $71.88
Model UC300-A14EM1
Retail Price: 599.00
Description:
Whether you’re an SMB looking for a cost-effective, scalable phone system or a SOHO requiring an advanced unified communications system, OpenVox UC300 Series will be your first choice. With two distinct offerings, UC300-A11EM1/UC300-A02EM1 and UC300-A14EM1, OpenVox offers a complete set of products designed to meet your communication demand.
UC300 Series support analog FXO/FXS ports with up to 300 simultaneous calls in one single device. They are developed with a wide selection of codecs and signaling protocols, including ADPCM，G.711A，G.711U，G.722，G.723.1，G.726，G.728，G.729，ILBC. Taking full advantages of open source platform, the UC300 Series support industry standard SIP trunks, IAX2 trunks, analog PSTN trunks, and analog station trunks. What’s more, it is very convenient for users to increase ports to expand the system.
|
Model |
FXS |
FXO |
|
UC300-A14EM1 |
1 |
4 |
Technical Specification
- Up to 800 extension register
- 100 concurrent calls with G.729 codec
- 300 concurrent calls with G.711 codec
- Recording: 86,000 mins (.gsm); 9,500 mins (.wav)
- Voicemail: 86,000 mins (.gsm); 9,500 mins (.wav)
- Network Interface: 1×10/100M LAN port
- USB Port: 1×USB 2.0 for external storage or disaster recovery system
- External Storage: 1×SD slot, support up to 128G
- Telephony Interfaces: FXS/FXO interface, Optional
- Storage: 16GB Onboard Flash
- RAM: DDR3 1GB
- 1 MIC Interface: Audio Input
- 1 SPK Interface: Audio Output
- Power Consumption: 12V/0.8A, 9.6W Maximum
- Failover Function (not support with 2 FXO model)
- Operational Temperature: 0°C to 50 °C
- Storage Temperature: -20 °C to 65 °C
- Size: 130*130*40mm
- Weight: 530g
Internet
- DHCP Server
- DHCP Client List
- Assign IP Address to Host
Security
- Firewall
- Audit
- Weak keys
Features:
PBX
- Supported codecs: ADPCM, G.711(A-Law & u-Law), G.722, G.723.1(pass through), G.726, G.728, G.729, GSM, iLBC(optional) among others.
- Support from analog interfaces such as FXS/FXO(PSTN/POTS)
- SIP and IAX2 support
- Incoming and outgoing routes with support for dial pattern matching
- Support for paging and intercom
- Web-based operator panel
- DISA(Direct Inward System Access)
- Call detail record(CDR) report
- Billing and consumption report
- Distributed DialPlan with dundi
- Call recording, Call parking, call queues, Voicemail, Conference
- Echo canceller
- Callback support
- Flexible and configuration IVR
- Support for PIN sets
- Support for time conditions
- VOIP provider configuration
- Support for follow-me
- Support for ring groups
- Support for video-phones
- Channel usage reports
- Mail server with multi-domain support
- Based in postfix for high email volume
- Remote SMTP Module
- Web based email client
- Support for quotas
- Antispam support
- Support for mail relay
- Email list management
FAX
- Fax to email application
- Fax visor with downloaded PDFs
- Can be integrated with Winprint Hylafax
- Fax send through Web Interface
- Fax to email customization
- Access control for fax clients
CENTRAL
- System resources monitor
- Backup Restore Validation
- Network configurator
- Heartbeat module
- Configurable server date, time and timezone
- Backup/restore support via web
- Server shutdown from the web
- DHCP server for dynamic IP
- Access control to the interface based on ACLs
Warranty:
- 1 Year Limited Manufacturer Warranty
