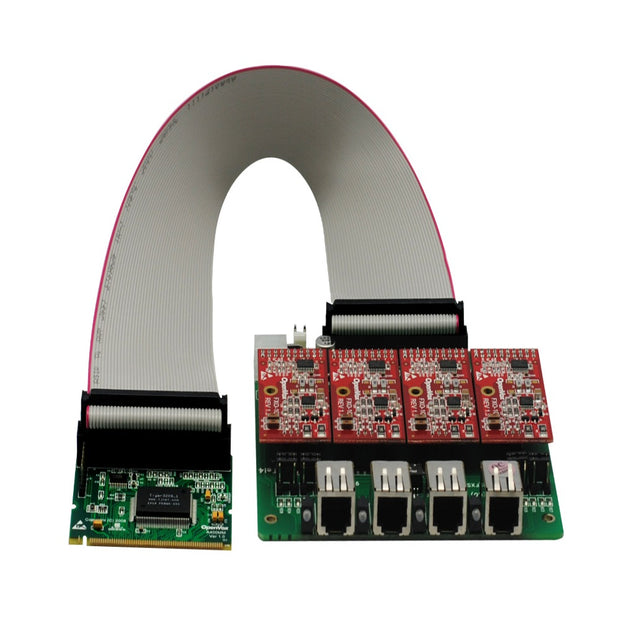

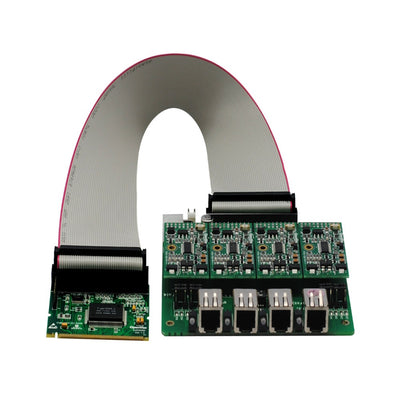

OpenVox A400M 4 Port Analog Mini-PCI Base Card, No Modules
Regular price $135.00 Sale price $118.80 Save $16.20Model: A400M
Retail Price: $135.00
Product Spotlight
OpenVox A400P/E/M Series Card can be used for connecting analog telephones and analog POTS lines through a PC. It supports combinations of FXS and/or FXO modules for a total of 4 lines.
- Up to 4 Simultaneous PSTN Calls (Per PCI Slot)
- Interchangeable FXS and FXO modules
Overview
OpenVox A400 Series Card delivers great voice quality in the telephony systems. With interchangeable FXS/FXO modules, it can eliminate the requirement for separate channel banks or access gateways.
The A400 Series Card contains 4 module banks. Each bank supports one analog interface. The module banks may be filled with up to 4 FXO or FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.
A400P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.
Target Applications
- Channel Bank Replacement / Alternative
- Small Office Home Office (SOHO) applications
- Small and Medium Business (SMB) applications
- Gateway Termination to analog telephones/lines
Services and Features
- Caller ID and Call Waiting Caller ID
- ADSI Telephones
- Loopstart Signaling Support
Technical Specifications
- Up to 4 ports through a combination of FXS and FXO modules
- 4 RJ-11 interfaces on a single PCI bracket
- 32 bit 33MHz PCI and fully PCI 2.2 compliant
- 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
- Autosense compatibility with 5 V and 3.3 V PCI busses compatible
- Firmware accelerate I/O access to achieve high stability
- Power: 2.77W Minimum, 11.6W Maximum at 3.3 V or 5 V.
- Operation temperature: 0°C to 50°C
- Storage temperature: -40°C to 125°C
- Dimension: 136.3mm*101mm*16mm
- Weight: 82g
Operating Systems
- Linux (all versions, releases and distributions from 1.0 up)
Minimum Hardware Requirement
- 800-Mhz Pentium III
- 128MB RAM
- Available PCI, PCIE, Mini-PCI Slot
Certification:
- FCC Part 15
- CE(EN55022, EN55024)
- LVD(EN60950-1)
- RoHS Compliant
Warranty: One Year Limited Manufacturer Warranty
A400 Series PCI, PCI-E, Mini-PCI Series Configuration Guide
| Model Series | FXS | FXO |
| A400P/ A400E / A400M00 | 0 | 0 |
| A400P/ A400E / A400M01 | 0 | 1 |
| A400P/ A400E / A400M02 | 0 | 2 |
| A400P/ A400E / A400M03 | 0 | 3 |
| A400P/ A400E / A400M04 | 0 | 4 |
| A400P/ A400E / A400M10 | 1 | 0 |
| A400P/ A400E / A400M20 | 2 | 0 |
| A400P/ A400E / A400M30 | 3 | 0 |
| A400P/ A400E / A400M40 | 4 | 0 |
| A400P/ A400E / A400M11 | 1 | 1 |
| A400P/ A400E / A400M12 | 1 | 2 |
| A400P/ A400E / A400M13 | 1 | 3 |
| A400P/ A400E / A400M21 | 2 | 1 |
| A400P/ A400E / A400M22 | 2 | 2 |
| A400P/ A400E / A400M31 | 3 | 1 |
- A400P for PCI
- A400E for PCI-E
- A400M for Mini-PCI
