Now shipping New Generation Model V2.

The OpenVox GW1202v2, GW1600v2, GW2120v2 Wireless Gateway Series comes with very friendly GUI for software configuration. The hardware is designed with flexibility and expandability in mind. This allows users to easily set the gateway for use with any wireless or analog modules.

The GW1202v2, GW1600v2, GW2120v2 Wireless Gateway series can house from 1 module to 11 modules. The "G" series uses the GSM Band Frequency, some states, cities no longer offer GSM frequency series. Please call your provider if GSM is available in your location.  If GSM is not available, please use the W or LTE Band Frequency.

The GW1202v2, GW1600v2, GW2120v2 Wireless Gateway series is developed for interconnecting a wide a selection of codecs, including G.711A, G.711U, G.729, G.722, G.723, G.726 & GSM, CDMA to the 4G LTE networks to easily reduce telecommunication expense and maximize cost-savings.

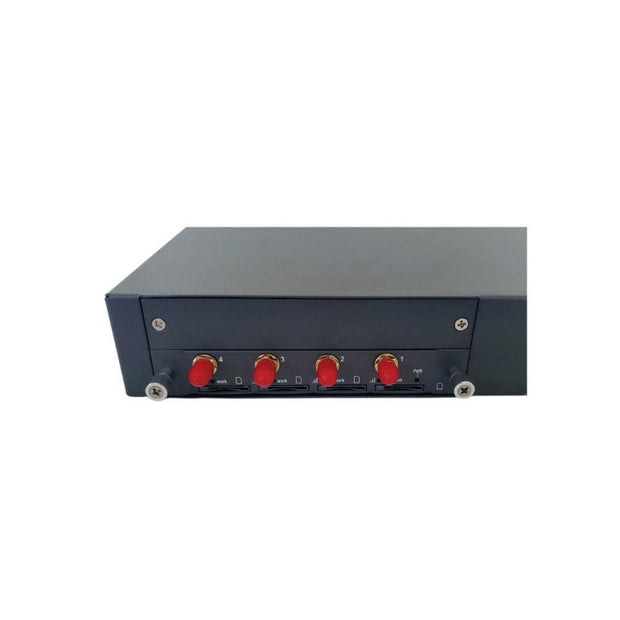

With the unique design of the OpenVox Wireless Gateway, comes easy hot swapping for the SIM cards in any of the installed modules. Users can also add or remove the modules for hardware expansion. Each 4G LTE module runs an independent asterisk system built into. The Wireless gateways comes with a LAN ethernet switch board that provides stickability for hardware upgrade.

The OpenVox Gateways support SMS messages sending and receiving individually or by grouping. This also fully support SMS to email. The Wireless Gateway use standard SIP protocol and compatible with the leading IMS/NGN platform, IPPBX and SIP servers, fully supports the VoIP operating platforms such as Asterisk, Elastix, FreePBX, 3CX BroadSoft and FreeSWITCH.

Technical Specifications:

• 4 to 44 GSM Channels
• GW1202v2 Series, 4 to 8 Channels
• GW1600v2 Series, 4 to 20 Channels
• GW2120v2 Series, 4 to 44 Channels
• 1 SIM card per GSM Channel
• Frequency Range: GSM 850/900/1800/1900MHz
• 10/100M LAN interfaces
• Up to 8 Standard SMA-K interfaces
• Storage temperature range: -20~70℃
• Operation temperature range: 0~40℃
• Operation humidity range: 10%~90% non-condensing
• Power source: 12V DC/2A 120-240V
• Dimension:
• GW1202v2: 6" x 7.5" x 1.7"
• GW1600v2: 17.3" x 11.8" x 1.8"
• GW2120v2: 19.1" x 13.1" x 3.5"
• Weight (without the modules)
• GW1202v2: 4 Pounds
• GW1600v2: 12 Pounds
• GW2120v2: 18 Pounds

Features

• Simple and convenient configuration via Web GUI
• Support http / https / SSH
• Basic security strategy (white/blacklist, security rules)
• Optional GSM Voice Codec
• Codecs support:
• G.711A
• G.711U
• G.729
• G.723.1
• G.722
• G.726
• GSM
• SIP (RFC3261) Compliance
• Support diverse SIP, IAX2 protocols.
• Multiple SIP/IAX2 Registration models: None, server, client
• DTMF Signaling support: RFC2833, Inband, SIPINFO
• Real Open API Protocol (based on Asterisk)
• Support static IP and DHCP
• Call Duration Limit
• CLIR (Call Line Identification Restriction)
• Call Waiting
• Call Forwarding (unconditional, no reply, busy, not reachable)
• SMSC/SMS/USSD
• SMS bulk transceiver, SMS automatically resend, Sent to Email
• Support HTTP SMS interface
• SMS Forwarding
• USSD transceiver
• SMS remotely controlling gateway.
• IMEI number automatic modification
• PIN identification
• Mobile number portability (MNP)
• Flexible routing settings & unlimited routing rules
• Support DISA
• Extensible Automatic Callback and Speed Dial
• Customizable IVR
• CDR (More than 200,000 Lines CDRs Storage Locally)
• Support configuration files backup and upload
• Support for custom scripts, dial plans
• Least Cost Routing (LCR), according to Time, Port, Calling Number
• Independent System for Each Module
• Affordable Price with Superior Performance
• Hot-swap Design for both Sim cards and Modules
• Compatible with sip server, such as: Asterisk, Elastix, 3CX, FreeSWITCH

Software & Platform:

• Asterisk / Linux

Certifications

• Certificates: CE

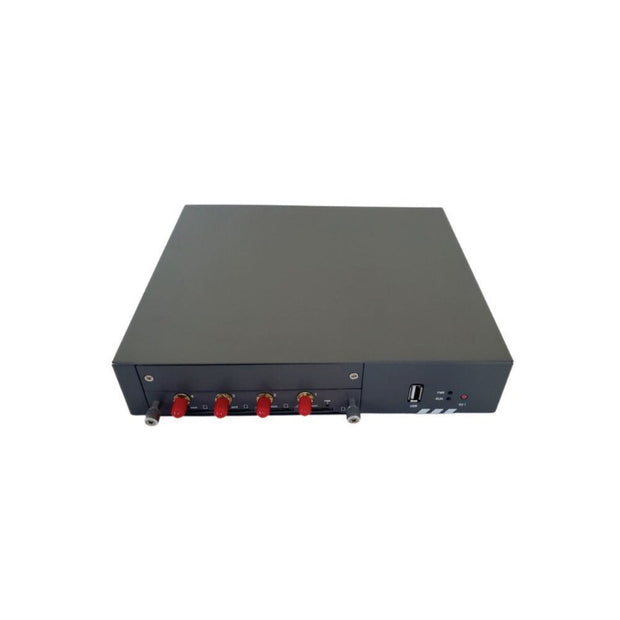

Model: GW1202v2-4W
Retail Price: $599.45

GW GW WCDMA UMTS GSM Series Model Configuration Guide

Model	Description
GW1202v2	Chassis Only - No Modules
GW1202v2-4W	4 WCDMA Channels (1 GWM4x0W Module)
GW1202v2-8W	8 WCDMA Channels (2 GWM4x0W Modules)
GW1600v2	Chassis Only - No Modules
GW1600v2-4W	4 WCDMA Channels (1 GWM4x0W Module)
GW1600v2-8W	8 WCDMA Channels (2 GWM4x0W Modules)
GW1600v2-12W	12 WCDMA Channels (3 GWM4x0W Modules)
GW1600v2-16W	16 WCDMA Channels (4 GWM4x0W Modules)
GW1600v2-20W	20 WCDMA Channels (5 GWM4x0W Modules)
GW2120v2	Chassis Only - No Modules
GW2120v2-4W	4 WCDMA Channels (1 GWM4x0W Module1)
GW2120v2-8W	8 WCDMA Channels (2 GWM4x0W Modules)
GW2120v2-12W	12 WCDMA Channels (3 GWM4x0W Modules)
GW2120v2-16W	16 WCDMA Channels (4 GWM4x0W Modules)
GW2120v2-20W	20 WCDMA Channels (5 GWM4x0W Modules)
GW2120v2-24W	24 WCDMA Channels (6 GWM4x0W Modules)
GW2120v2-28W	28 WCDMA Channels (7 GWM4x0W Modules)
GW2120v2-32W	32 WCDMA Channels (8 GWM4x0W Modules)
GW2120v2-36W	36 WCDMA Channels (9 GWM4x0W Modules)
GW2120v2-40W	40 WCDMA Channels (10 GWM4x0W Modules)
GW2120v2-44W	44 WCDMA Channels (11 GWM4x0W Modules)

..darwin..

Now shipping New Generation Model V2.

The OpenVox GW1202v2, GW1600v2, GW2120v2 Wireless Gateway Series comes with very friendly GUI for software configuration. The hardware is designed with flexibility and expandability in mind. This allows users to easily set the gateway for use with any wireless or analog modules.

The GW1202v2, GW1600v2, GW2120v2 Wireless Gateway series can house from 1 module to 11 modules. The "W" series uses the WCDMA UMTS and GSM Band Frequency, some states, cities no longer offer GSM WCDMA frequency series.  If GSM and WCDMA UMTS band is not available in your location, please select the LTE Band frequency under the "L" series.

The GW1202v2, GW1600v2, GW2120v2 Wireless Gateway series is developed for interconnecting a wide a selection of codecs, including G.711A, G.711U, G.729, G.722, G.723, G.726 & GSM, CDMA to the 4G LTE networks to easily reduce telecommunication expense and maximize cost-savings.

With the unique design of the OpenVox Wireless Gateway, comes easy hot swapping for the SIM cards in any of the installed modules. Users can also add or remove the modules for hardware expansion. Each 4G LTE module runs an independent asterisk system built into. The Wireless gateways comes with a LAN ethernet switch board that provides stickability for hardware upgrade.

The OpenVox Gateways support SMS messages sending and receiving individually or by grouping. This also fully support SMS to email. The Wireless Gateway use standard SIP protocol and compatible with the leading IMS/NGN platform, IPPBX and SIP servers, fully supports the VoIP operating platforms such as Asterisk, Elastix, FreePBX, 3CX BroadSoft and FreeSWITCH.

Technical Specifications:

• 4 to 44 WCDMA CDMA UTMS Channels
• GW1202v2 Series, 4 to 8 Channels
• GW1600v2 Series, 4 to 20 Channels
• GW2120v2 Series, 4 to 44 Channels
• 1 SIM card per GSM Channel
• Frequency Range:
• GSM 850/900/1800/1900MHz
• UMTS 850/1900MHz
• 10/100M LAN interfaces
• Up to 8 Standard SMA-K interfaces
• Storage temperature range: -20~70℃
• Operation temperature range: 0~40℃
• Operation humidity range: 10%~90% non-condensing
• Power source: 12V DC/2A 120-240V
• Dimension:
• GW1202v2: 6" x 7.5" x 1.7"
• GW1600v2: 17.3" x 11.8" x 1.8"
• GW2120v2: 19.1" x 13.1" x 3.5"
• Weight (without the modules)
• GW1202v2: 4 Pounds
• GW1600v2: 12 Pounds
• GW2120v2: 18 Pounds

Features

• Simple and convenient configuration via Web GUI
• Support http / https / SSH
• Basic security strategy (white/blacklist, security rules)
• Optional GSM Voice Codec
• Codecs support:
• G.711A
• G.711U
• G.729
• G.723.1
• G.722
• G.726
• GSM
• SIP (RFC3261) Compliance
• Support diverse SIP, IAX2 protocols.
• Multiple SIP/IAX2 Registration models: None, server, client
• DTMF Signaling support: RFC2833, Inband, SIPINFO
• Real Open API Protocol (based on Asterisk)
• Support static IP and DHCP
• Call Duration Limit
• CLIR (Call Line Identification Restriction)
• Call Waiting
• Call Forwarding (unconditional, no reply, busy, not reachable)
• SMSC/SMS/USSD
• SMS bulk transceiver, SMS automatically resend, Sent to Email
• Support HTTP SMS interface
• SMS Forwarding
• USSD transceiver
• SMS remotely controlling gateway.
• IMEI number automatic modification
• PIN identification
• Mobile number portability (MNP)
• Flexible routing settings & unlimited routing rules
• Support DISA
• Extensible Automatic Callback and Speed Dial
• Customizable IVR
• CDR (More than 200,000 Lines CDRs Storage Locally)
• Support configuration files backup and upload
• Support for custom scripts, dial plans
• Least Cost Routing (LCR), according to Time, Port, Calling Number
• Independent System for Each Module
• Affordable Price with Superior Performance
• Hot-swap Design for both Sim cards and Modules
• Compatible with sip server, such as: Asterisk, Elastix, 3CX, FreeSWITCH

Software & Platform:

• Asterisk / Linux

Certifications

• Certificates: CE

Now shipping New Generation Model V2.

The OpenVox GW1202v2, GW1600v2, GW2120v2 Wireless Gateway Series comes with very friendly GUI for software configuration. The hardware is designed with flexibility and expandability in mind. This allows users to easily set the gateway for use with any wireless or analog modules.

The GW1202v2, GW1600v2, GW2120v2 Wireless Gateway series can house from 1 module to 11 modules. The "G" series uses the GSM Band Frequency, some states, cities no longer offer GSM frequency series. Please call your provider if GSM is available in your location.  If GSM is not available, please use the W or LTE Band Frequency.

The GW1202v2, GW1600v2, GW2120v2 Wireless Gateway series is developed for interconnecting a wide a selection of codecs, including G.711A, G.711U, G.729, G.722, G.723, G.726 & GSM, CDMA to the 4G LTE networks to easily reduce telecommunication expense and maximize cost-savings.

With the unique design of the OpenVox Wireless Gateway, comes easy hot swapping for the SIM cards in any of the installed modules. Users can also add or remove the modules for hardware expansion. Each 4G LTE module runs an independent asterisk system built into. The Wireless gateways comes with a LAN ethernet switch board that provides stickability for hardware upgrade.

The OpenVox Gateways support SMS messages sending and receiving individually or by grouping. This also fully support SMS to email. The Wireless Gateway use standard SIP protocol and compatible with the leading IMS/NGN platform, IPPBX and SIP servers, fully supports the VoIP operating platforms such as Asterisk, Elastix, FreePBX, 3CX BroadSoft and FreeSWITCH.

Technical Specifications:

• 4 to 44 GSM Channels
• GW1202v2 Series, 4 to 8 Channels
• GW1600v2 Series, 4 to 20 Channels
• GW2120v2 Series, 4 to 44 Channels
• 1 SIM card per GSM Channel
• Frequency Range: GSM 850/900/1800/1900MHz
• 10/100M LAN interfaces
• Up to 8 Standard SMA-K interfaces
• Storage temperature range: -20~70℃
• Operation temperature range: 0~40℃
• Operation humidity range: 10%~90% non-condensing
• Power source: 12V DC/2A 120-240V
• Dimension:
• GW1202v2: 6" x 7.5" x 1.7"
• GW1600v2: 17.3" x 11.8" x 1.8"
• GW2120v2: 19.1" x 13.1" x 3.5"
• Weight (without the modules)
• GW1202v2: 4 Pounds
• GW1600v2: 12 Pounds
• GW2120v2: 18 Pounds

Features

• Simple and convenient configuration via Web GUI
• Support http / https / SSH
• Basic security strategy (white/blacklist, security rules)
• Optional GSM Voice Codec
• Codecs support:
• G.711A
• G.711U
• G.729
• G.723.1
• G.722
• G.726
• GSM
• SIP (RFC3261) Compliance
• Support diverse SIP, IAX2 protocols.
• Multiple SIP/IAX2 Registration models: None, server, client
• DTMF Signaling support: RFC2833, Inband, SIPINFO
• Real Open API Protocol (based on Asterisk)
• Support static IP and DHCP
• Call Duration Limit
• CLIR (Call Line Identification Restriction)
• Call Waiting
• Call Forwarding (unconditional, no reply, busy, not reachable)
• SMSC/SMS/USSD
• SMS bulk transceiver, SMS automatically resend, Sent to Email
• Support HTTP SMS interface
• SMS Forwarding
• USSD transceiver
• SMS remotely controlling gateway.
• IMEI number automatic modification
• PIN identification
• Mobile number portability (MNP)
• Flexible routing settings & unlimited routing rules
• Support DISA
• Extensible Automatic Callback and Speed Dial
• Customizable IVR
• CDR (More than 200,000 Lines CDRs Storage Locally)
• Support configuration files backup and upload
• Support for custom scripts, dial plans
• Least Cost Routing (LCR), according to Time, Port, Calling Number
• Independent System for Each Module
• Affordable Price with Superior Performance
• Hot-swap Design for both Sim cards and Modules
• Compatible with sip server, such as: Asterisk, Elastix, 3CX, FreeSWITCH

Software & Platform:

• Asterisk / Linux

Certifications

• Certificates: CE

Module

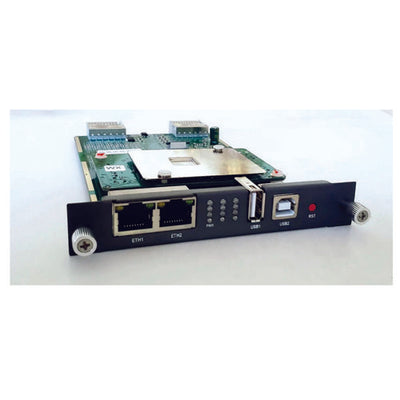

• 4 Channels 3G UMTS Module Plug-In
• Hot Swap Design
• Fully compatible with 3CX, Asterisk, Elastix, Trixbox, FreeSwitch SIP Servers
• Quad Band 3G UMTS Band 850/900/1900/2100 Mhz
• Supports SMS Sending, Receiving, Grouing Sending
• Support IMEI Modification
• Support USSD Service
