Vendor: Openvox

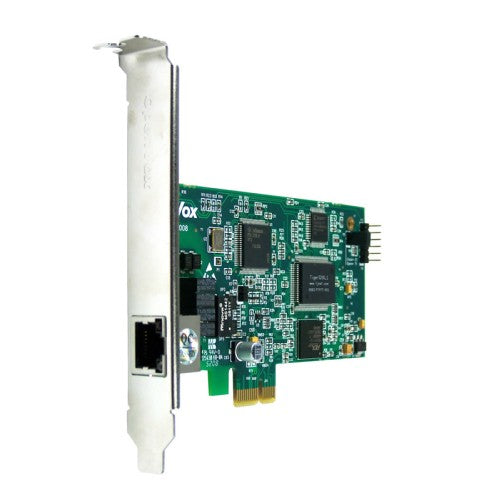

OpenVox D110E 1 Port T1/E1/J1 PRI PCI-E card

SKU: D110E
Regular price $342.32 Sale price $342.32 Regular price $389.00
Sale 12.0% $46.68 (12.0%)
Shipping calculated at checkout.
Out of stock
Description

Model: D110E
Retail Price:  $389.00

THIS ITEM IS DISCONTINUED and is being replaced with D130E

Product Spotlight
OpenVox D110E is the worldwide affordable single port T1/E1/J1 card and delivers the great voice quality over telephony systems. It supports up to 30 voice calls or 2.048 Mbps of full–duplex data throughput over four T1, E1, or J1 lines
  • Single T1/E1/J1 port with PCI-Express interface for high performance voice and data applications
  • Up to 30 Simultaneous voice calls
Overview The D110E supports E1, T1 and J1 environments. It is selectable on a per-card or per-port basis. This feature enables signaling translation between E1 and T1 equipment and allows inexpensive T1 channel banks to connect with E1 circuits.D110E supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.D110E works with Asterisk®, Elastix®, FreeSWITCH, PBX in a Flash, trixbox®, Yate and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.
Target Applications
  • Voice-over Internet Protocol (VoIP) Services
  • Complex IVR Trees
  • "Meet-Me" Bridge Conferencing
  • Calling Card Platforms
  • VoIP Gateways (support SIP, H.323, and IAX)
  • Legacy PBX/IVR Services
  • Voice/Data Router (replace expensive routers)
  • PRI/Switch Compatibility - Network or CPE
Technical Specifications
  • Single T1/E1/J1 port with PCI-Express interface for high performance voice and data applications
  • Half-length PRI card
  • RJ48 connector
  • Power: 1.2W Maximum
  • Operation temperature: 0°C to 50°C
  • Storage temperature: -65°C to 125°C
  • Dimension: 12.3cm*6.5cm*1.8cm
  • Weight: 54g
PRI Switch Compatibility
  • EuroISDN (PRI or PRA) - Q.931/Q.921
  • Network or CPE
  • AT&T 4ESS
  • National ISDN 2
  • CAS Voice Modes
  • DMS 100
  • Lucent 5E
Operating Systems
  • Linux (all versions, releases and distributions f rom 1.0 up)
Minimum Hardware Requirement
  • 800-Mhz Pentium III
  • 128MB RAM
  • Available PCI-Express SlotRoHS compliant
    Certificates: CE and FCC
Warranty:
  • 1 Year Limited Manufacturer Warranty
