Openvox SWG-M204L 4 2G 3G 4G LTE Channels Wireless 2nd Gen Gateway

The WIRELESS GATEWAY is SHIPPING from CHINA to OUTSIDE the USA only.
This is NOT to be shipped to the USA.

Model: SWG-M204L
Retail Price:  $759.00

OpenVox SWG-M20X series wireless gateways include SWG-M202G/W/L and SWG-M204G/W/L. SWG-M20X series wireless gateways support multiple codecs, including G.711U, G.711A, GSM, G.722, G.726, G.729 multiple coding. Our products support SMS messages sending, receiving, group sending and SMS to E-mail. The SWG-M20X series gateways is perfect compatible with Asterisk, 3CX, FreePBX, FreeSWITCH SIP server and VOS VoIP system platform. It can provides users with more diverse telecommunications access methods and helps users reduce communication costs.

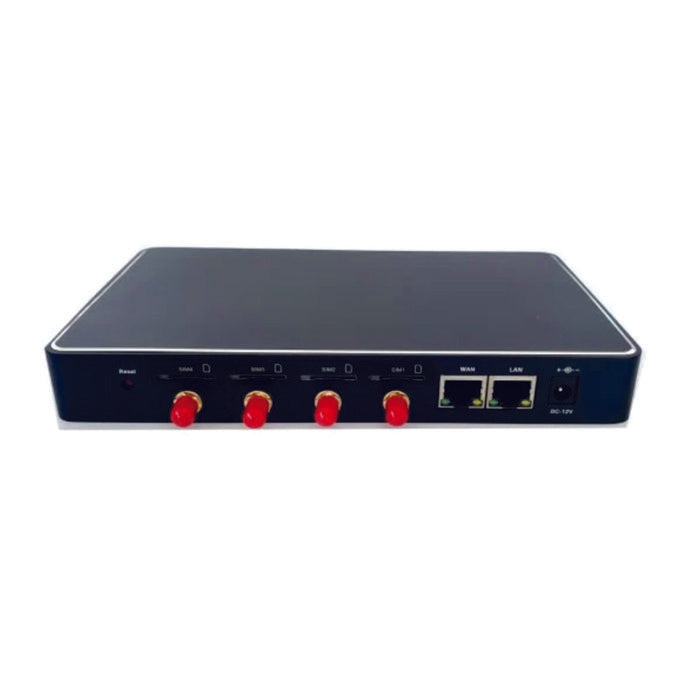

SWG-M204L, 4 Channel LTE Gateway

• Band: GSM, WCDMA, LTE
• Power: 12V, 1A
• LAN: 10/100M
• WAN: 10/100M
• SIM: Hot Swap

VoIP Specifications

• Support SIP，IAX2 Protocol
• Add, Modify & Delete SIP/IAX2 Trunk
• SIP/IAX2 Registration with Domain
• SIP V2.0 RFC3261 Compliance
• DTMF Mode: RFC2833/Inband/SIP Info
• Multiple SIP/IAX2 Registrations modes
• Codecs:G.711A, G.711U, G.729, G.722, G.726, GSM

Network

• IPv4，UDP/TCP，DHCP，TELNET，HTTP/HTTPS，TFTP
• PPTP VPN
• HTTP/SSH（Optcal Telnet）
• Ping & Traceroute Command on the Web
• Simple Security Strategy: white list, black list, security rules

Management

• Simple and convenient configuration via Web GUI
• Support maintenance and configuration by SSH
• Support configuration files backup and upload
• Support Chinese and English page
• Firmware Update by HTTP
• Support Web and SSH login password modification
• Restore Factory Settings
• CDR(More than 200,000 Lines CDRs Storage Locally)
• System log
• SIP/IAX2 log
• TCP and SIP capture

System Features

• Combine Different SIP/IAX2 Trunk into Group
• CLID Display & Hide (Need operators' support )
• Random call interval
• Call Duration Limitation
• Single Call Duration Limitation
• Real Open API Protocol (based on Asterisk)
• Support DISA
• SMSC/SMS/USSD
• PIN Identification
• Optional Voice Codec
• Ports Group Management
• SMS Remotely Controlling Gateway
• SMS Bulk Transceiver, Sent to Email and Automatically Resend
• SMS Coding/Detecting Automatically Identification
• SMS Forwarding and Quick Reply
• USSD transceiver
• Outbound
• Automatically Reboot
• Support MMP
• Support for custom scripts, dialplans
• Support Openvox cloud manage

Frequency Bands and Carriers for North America (USA Canada) (Use Module EC25-AF)

• Frequency:
  • LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71
  • LTE-TDD: NA
  • WCDMA: B2/B4/B5
  • GSM: NA
  • GNSS: GPS/GLONASS/BeiDou (Compass)/Galileo//QZSS
• Carriers:
  • USA: Verizon, AT&T (FirstNet), T-Mobile
  • Canada: Rogers, Telus

Frequency Bands for Mexico and Latin America, Australia and New Zealand, Taiwan, Brazil, Dominican Replublic, South Africa (use Module: EC25-AUX)

• Frequency:
  • LTE-FDD: B1/B2/B4/B5/B7/B8/B28
  • LTE-TDD: B40
  • WCDMA: B1/B2/B4/B5/B8
  • GSM: B2/B3/B5/B8
  • GNSS: GPS/GLONASS/BeiDou (Compass)/Galileo//QZSS
