Vendor: Openvox

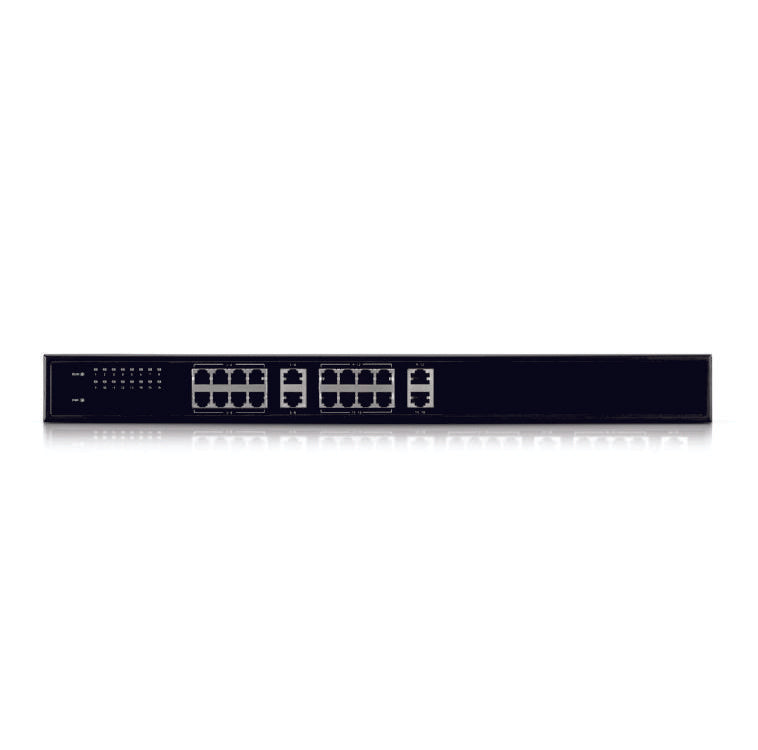

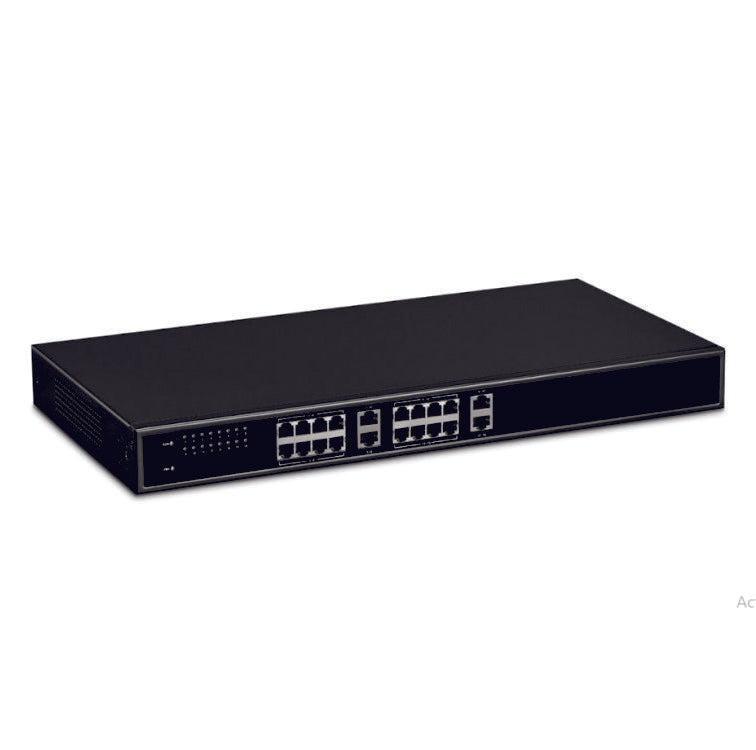

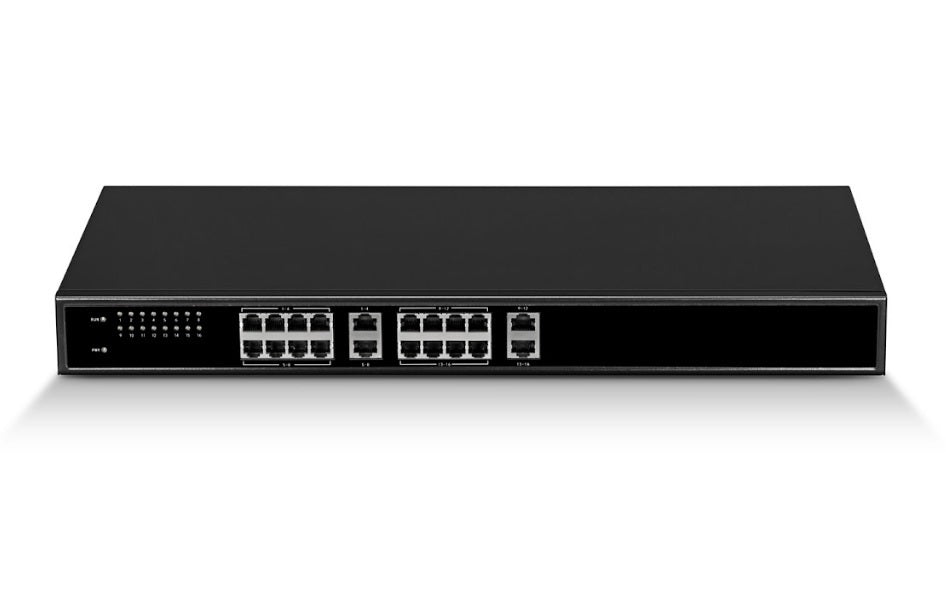

Openvox MAG1000-16O 16 FXO Rack Analog Gateway

SKU: MAG1000-16O
Regular price $430.32 Sale price $430.32 Regular price $489.00
Sale 12.0% $58.68 (12.0%)
Shipping calculated at checkout.
In stock: 1

Model: MAG1000-16O
Retail Price:  $489.00


OpenVox MAG 1000 is a multifunctional analog gateway for seamless connection between IPPBX, fax machines, analog phones and operators. It provides three interfaces of RJ11/RJ45/RJ21, covering almost all the wiring needs of users in all scenarios. In addition, it has excellent full concurrent voice/ fax processing capabilities, strong performance and high stability, and provides high-quality call services for operators, enterprises, call centers and residential users in residential communities.

The MAG1000 Analog Gateways are developed for interconnecting a wide selection of codecs including G.711A, G.711U, G.729A, G.722, G.726, iLBC. MAG1000 series use standard SIP protocol and compatible with Leading VoIP platform, IPPBX and SIP servers, such as Asterisk, Issabel, 3CX, FreeSWITCH ,BroadSoft and VOS VoIP operating platform.

Performance and Features

  • 16 FXO ports
  • Stable function, flexible dialplan and friendly
  • Web GUI
  • Strong security and high stability
  • Designed for almost all kinds of users
  • Fully Compatible with Leading SIP based VoIP
  • Telephony System
  • Support voice, fax and POS terminal access

System Features
● NTP time synchronization and client time synchronization
● Support modify username and password for web login
● Update firmware online, backup/restore configuration file
● Abundant Log Info, Automatically Reboot, Call status display
● Language selection (Chinese/English)
● Open API interface, support the secondary development of applications
● Support SSH remote operation and restore the factory settings
Telephony Features
● Support Volume adjustment, Gain adjustment, call transfer, call hold, call waiting, call forward, Caller ID display
● Three way calling, Call transfer, Dial-up matching table
● Support T.38 fax relay and T.30 fax transparent, FSK and DTMF signaling
● Support Ring cadence and frequency setting, WMI (Message Waiting Indicator)
● Support Echo cancellation, Jitter buffer
● Support customizable DISA and other applications
SIP Features
● Support add, modify & delete SIP Accounts ,batch add, modify & delete SIP Accounts
● Support multiple SIP registrations : Anonymous, Endpoint registers with this gateway, This gateway registers with the endpoint
● SIP accounts can be registered to multiple servers
● Network type:Static IP, Dynamic
● Support DDNS, DNS, DHCP, DTMF relay, NAT
● Telnet, HTTP, HTTPS, SSH
● VPN clients :PPTP/OpenVPN/Zerotier/L2TP/N2N(Not available for Russia)
● Network Toolbox
● CE

Product Name: MAG1000-16
Ports: 16 FXO ports

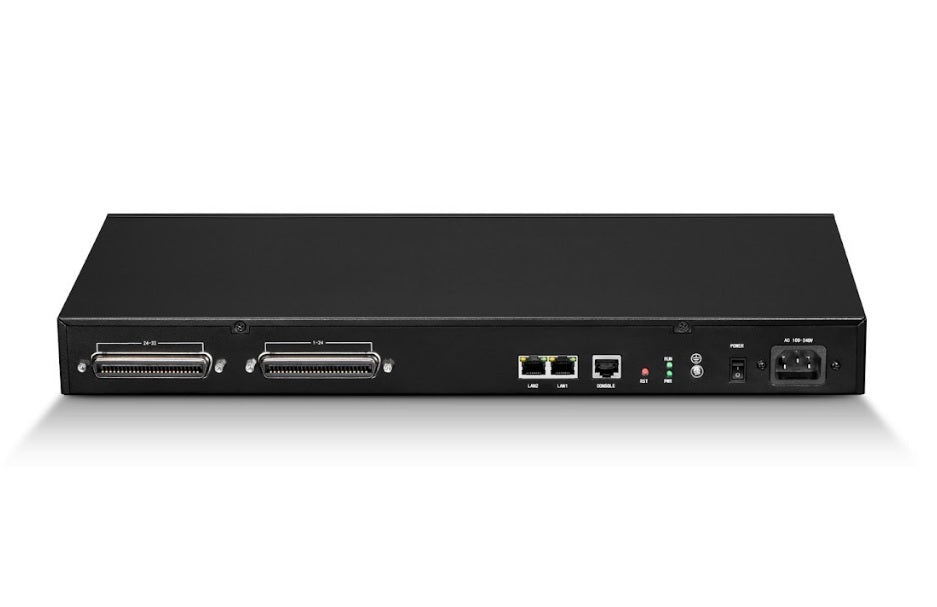

Port type: RJ11/RJ45/RJ21
Ethernet port: 2 * 10/100Mbps ports
Power Supply: 90-264VAC
Operation Temperature: 0°C ~ 45°C
Operation Humidity Range: 10% ~ 90% NON-CONDENSING
Storage Temperature Range: -20°C ~ 70°C
Certification: CE


  • 1 Year Limited Manufacturer Warranty
