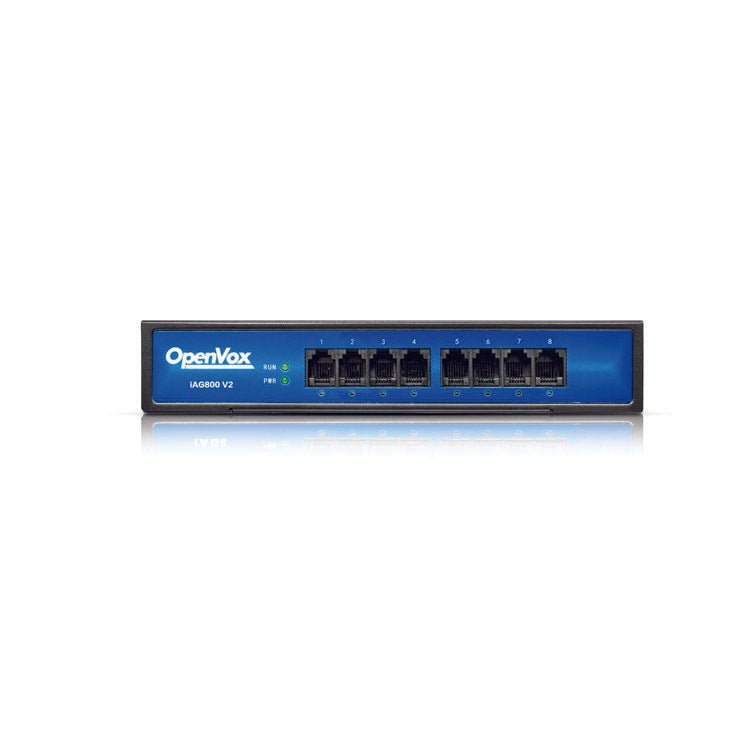

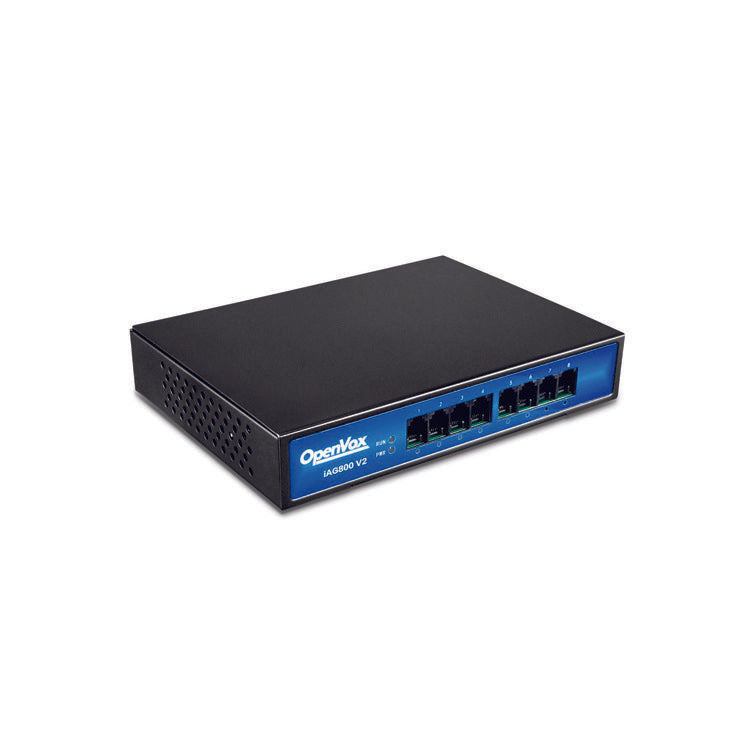

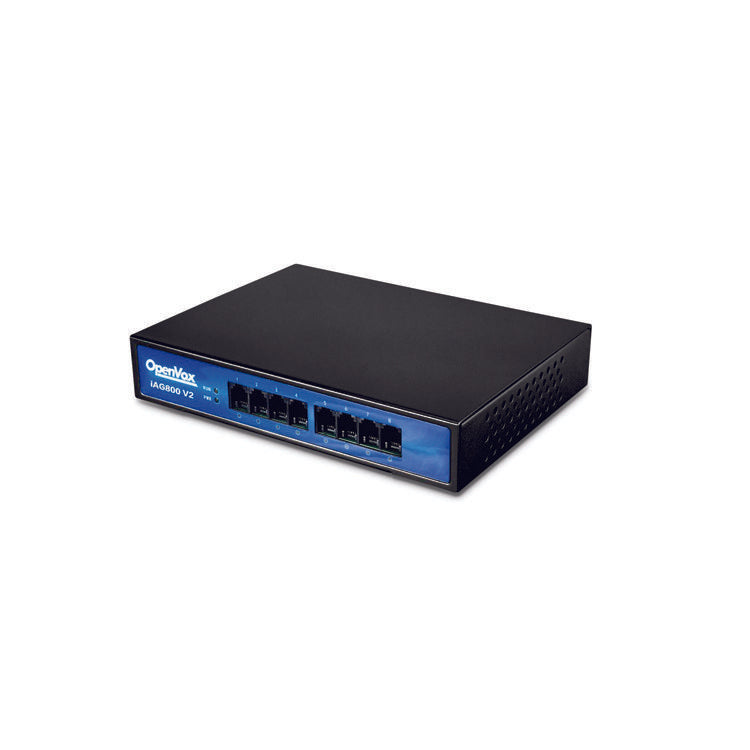

OpenVox iAG800v2-4S4O-F 4 FXS 4 FXO Analog Gateway with Failover

Model: iAG800v2-4S4O-F
Retail Price:  $314.00

OpenVox iAG800 V2 Series Analog VoIP Gateway

• Supports 4/8 ports of FXO/FXS port combination;
• Use standard SIP protocol;
• Compatible with Leading IMS/NGN platform, IPPBX and SIP servers.

Specifications
OpenVox iAG800 Series Analog VoIP Gateway supports 4/8 ports of FXO/FXS port combination. With features of small size, exquisite enclosure and high performance, the iAG Analog VoIP Gateway is specially designed for saving space and maximizing cost savings, it is ideal for SMBs and SOHOs.

It can be configured for different country uses, provides a wide selection of codecs including G.711A、G.711U、G.729、G.722、G.726、ILBC. The iAG Analog VoIP Gateways use standard SIP protocol and fully compatible with Leading IMS/NGN platform, IPPBX and SIP servers.

Model: iAG800v2-4S4O-F
Ports: 4 FXS ports and 4 FXO ports

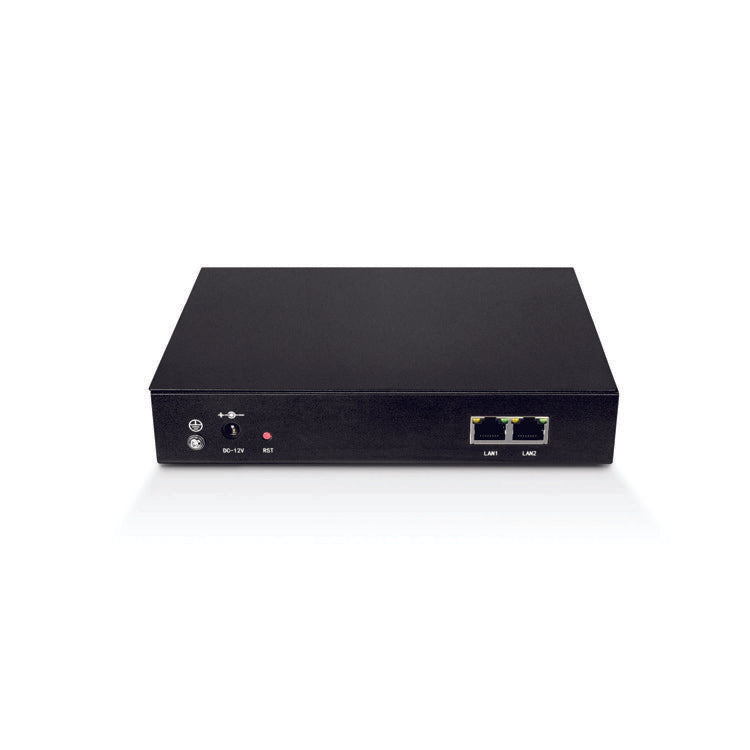

Ethernet Ports: 2 * 10/100Mbps Ports
Weight: 637g
Dimension: 19cm*14.2cm*3.5cm
Power Supply: 12V DC/2A
Maximum Power Consumption: 12W
Operation Temperature: 0°C ~ 50°C
Operation Humidity Range: 10% ~ 90% NON-CONDENSING
Storage Temperature Range: -20°C ~ 70°C
Short/Long Haul Ring Load: 2 REN, up to 3km on 24AWG line
Certification: CE
Software & Platform: Linux OS

Features:

• Simple and convenient configuration via Web GUI
• Abundant Log Features, Automatically Reboot, Call status display
• Language selection (Chinese/English)
• Open API interface（AMI）
• Support T.38 fax relay and T.30 fax transparent, FSK and DTMF signaling, can continually fax multiple pages
• Echo cancellation and Static jitter buffer
• Support DTMF relay
• Support Ring cadence and frequency setting
• Support Volume adjustment, Gain adjustment, call transfer, call hold, call waiting, call forward, Caller ID display
• Three-way calling, Call transfer, Dial-up matching table
• Support MWI(Message waiting indicator)
• Support DHCP、DNS/DDNS、NAT networking
• Support diverse SIP protocols
• Diverse extensible applications, such as DISA
• Support NTP time synchronization and client time synchronization
• Support modify username and password for web login
• Support SSH remote operation
• Support add, modify & delete SIP Accounts ,batch add, modify & delete SIP Accounts
• Support multiple SIP registrations: Anonymous, Endpoint registers with this gateway, This gateway registers with the endpoint
• SIP accounts can be registered to multiple servers
• Support update firmware online
• Support configuration file backup and upload
• Support for custom scripts, dialplans
• Support restore the factory settings
• Network type：Static IP, Dynamic
• Telnet, HTTP, HTTPS, SSH
• VPN clients：PPTP/OpenVPN/Zerotier/L2TP/N2N（Not available for EAEU）
• Network Toolbox
• Affordable Price with Superior Performance
• Compatible with Asterisk, Issabel, 3CX, FreeSWITCH Sip Server and VOS VoIP operating platform
• Available for OEM
