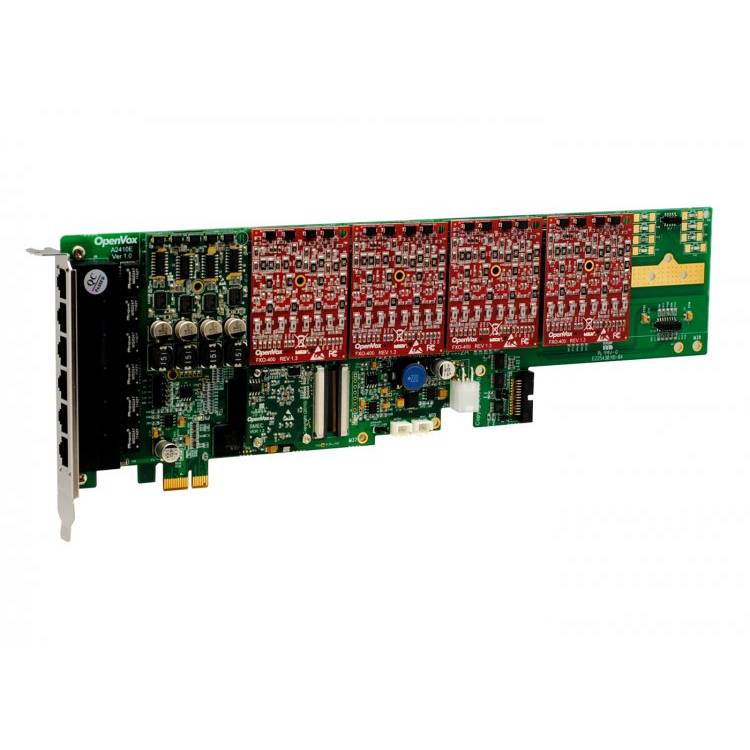

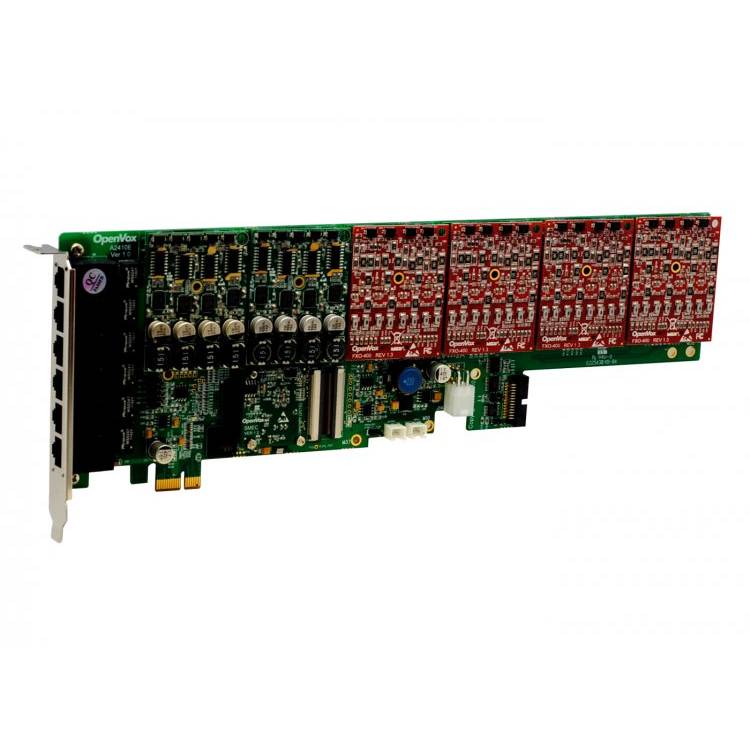

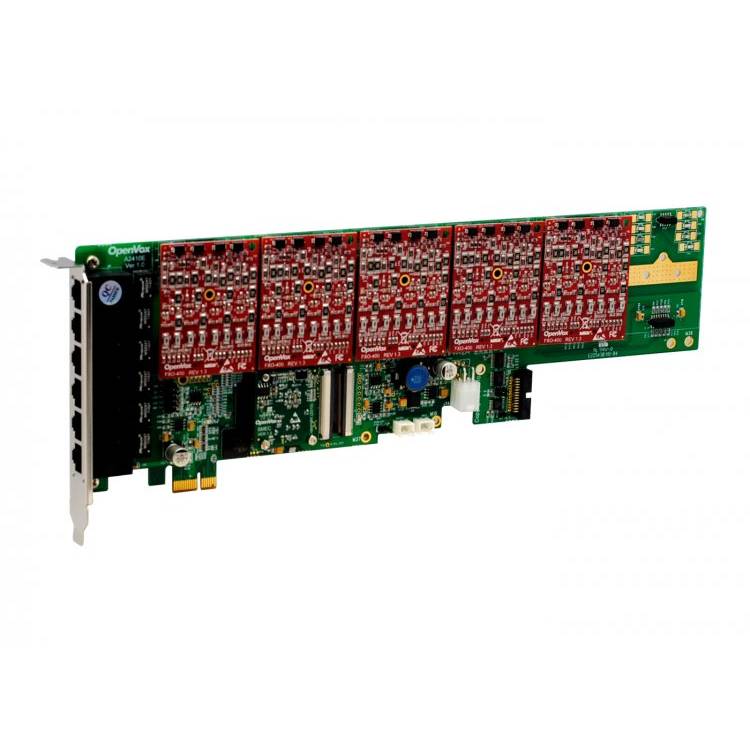

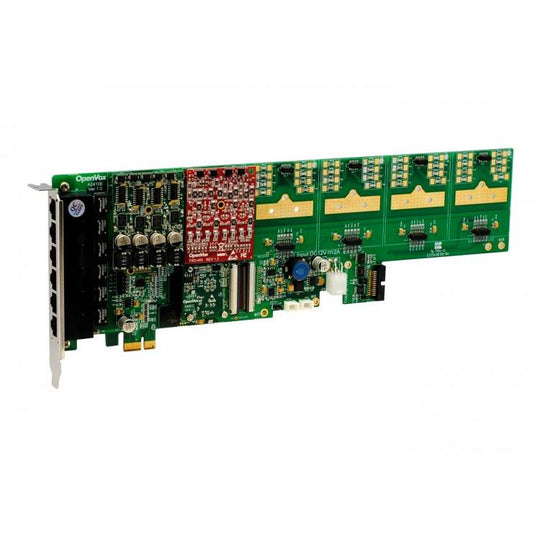

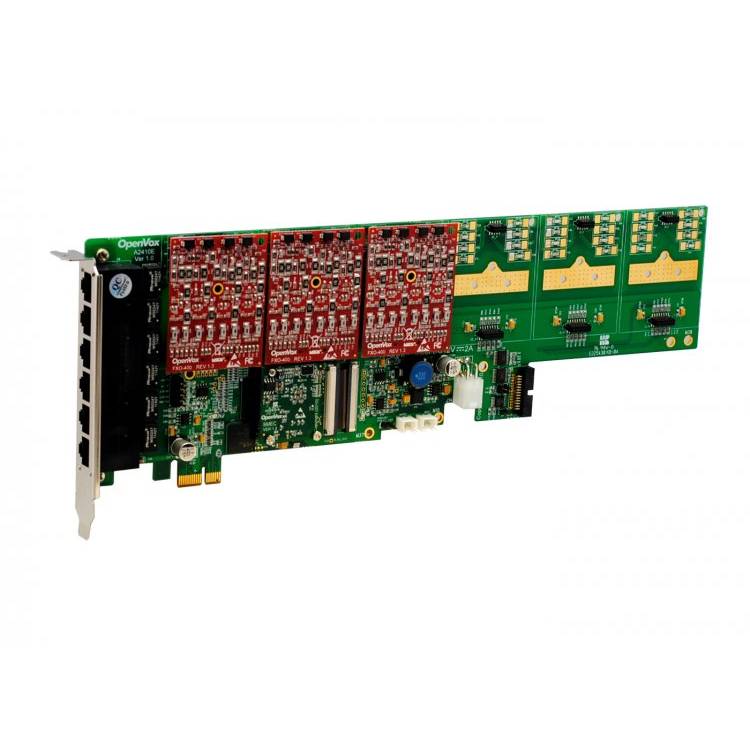

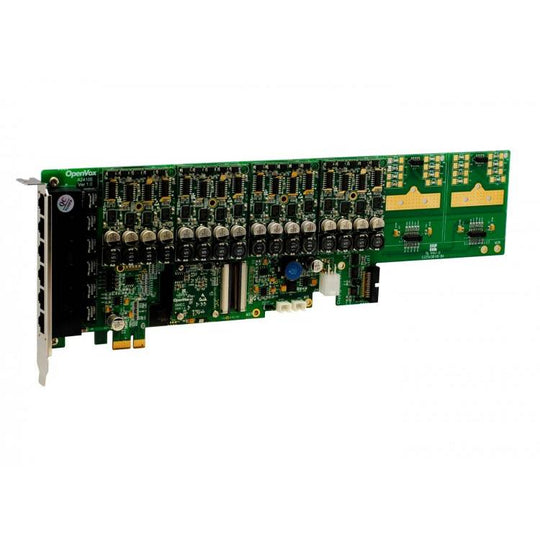

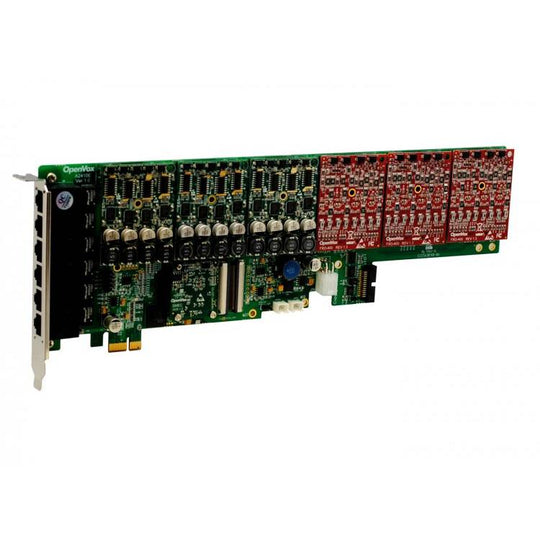

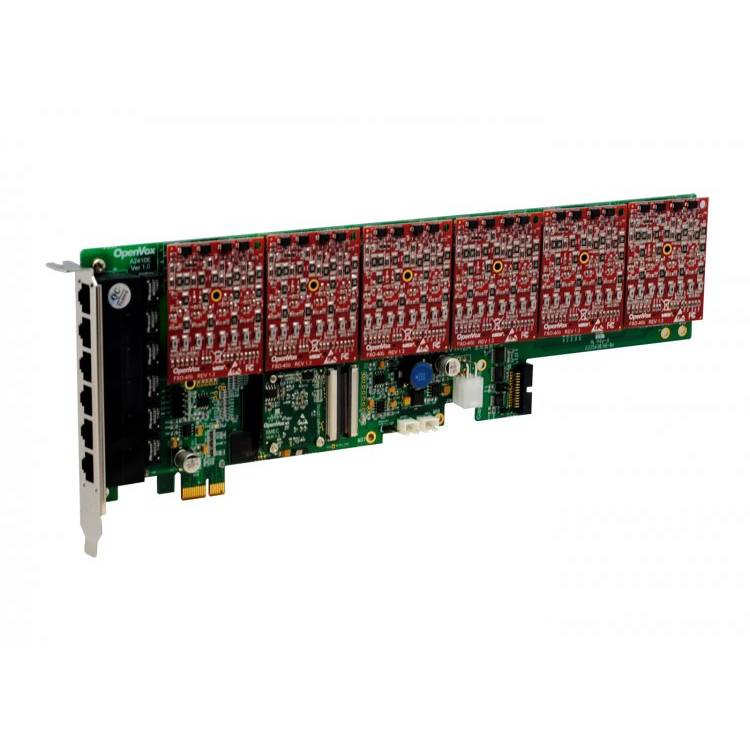

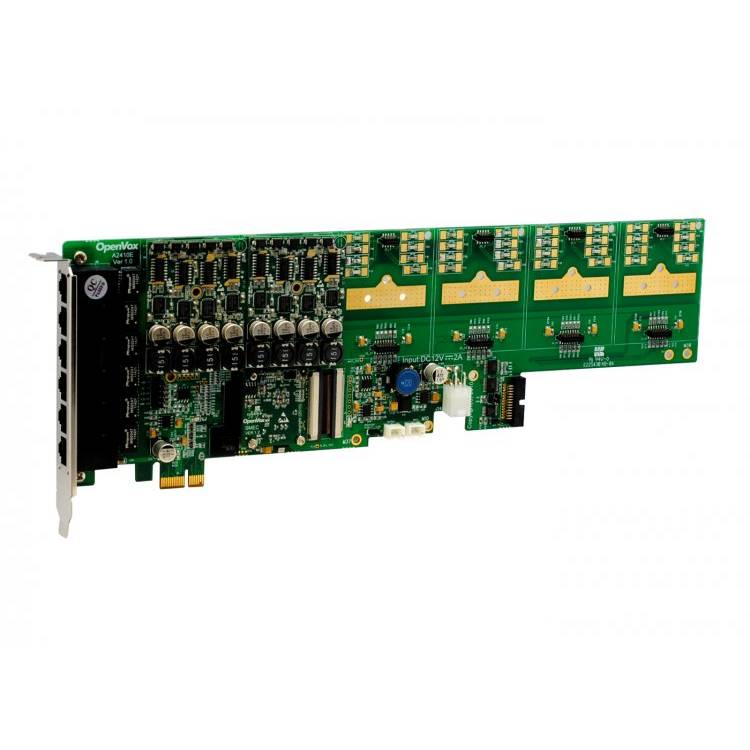

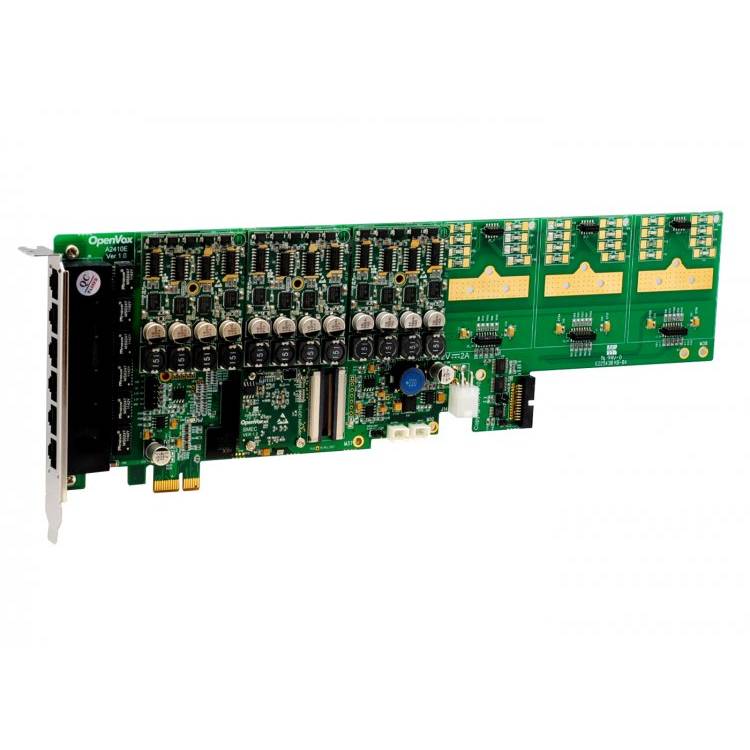

OpenVox AE2410E 24 Ports PCI-E Series Cards with Echo Cancellation

Product Spotlight
OpenVox A(E)2410P/E takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality on both FXO and FXS interfaces in all 24 ports.

• Adjustable Interrupt Routing Design
• Interrupts frequency adjustment
• Up to 24 Simultaneous PSTN Calls (Per PCI Slot)
• Compatible with All Commercially Available Motherboards
• Octasic® Hardware Echo Cancellation Module Available

Overview

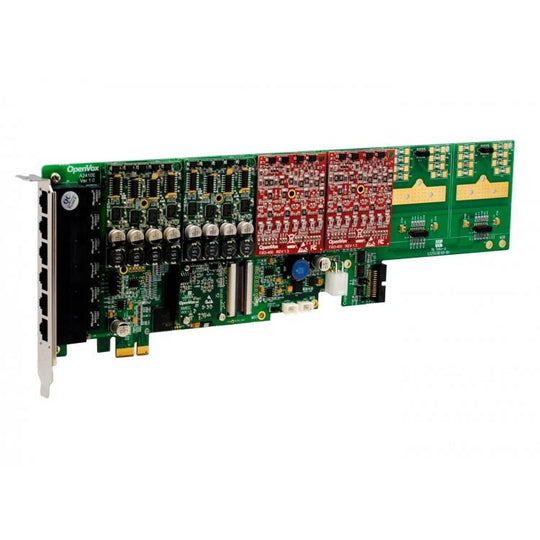

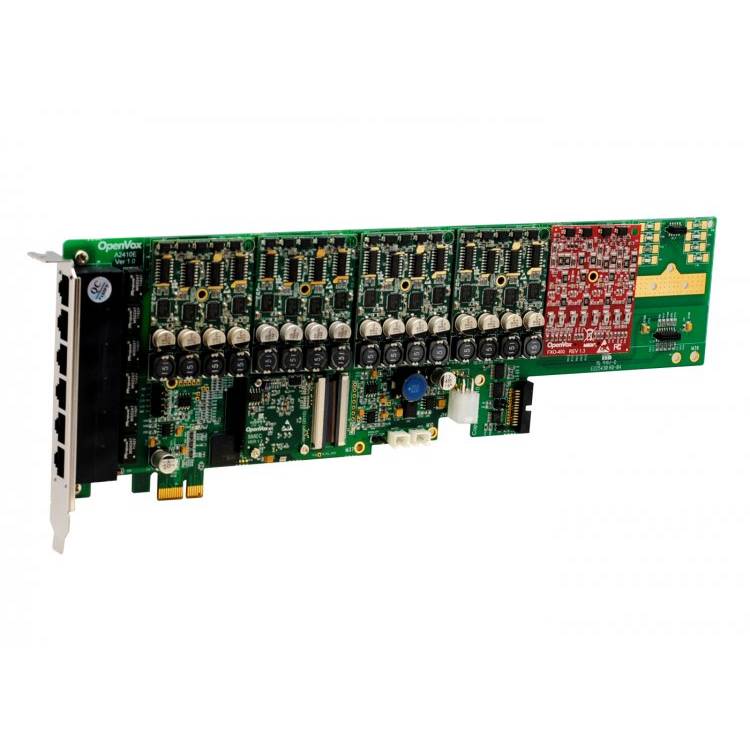

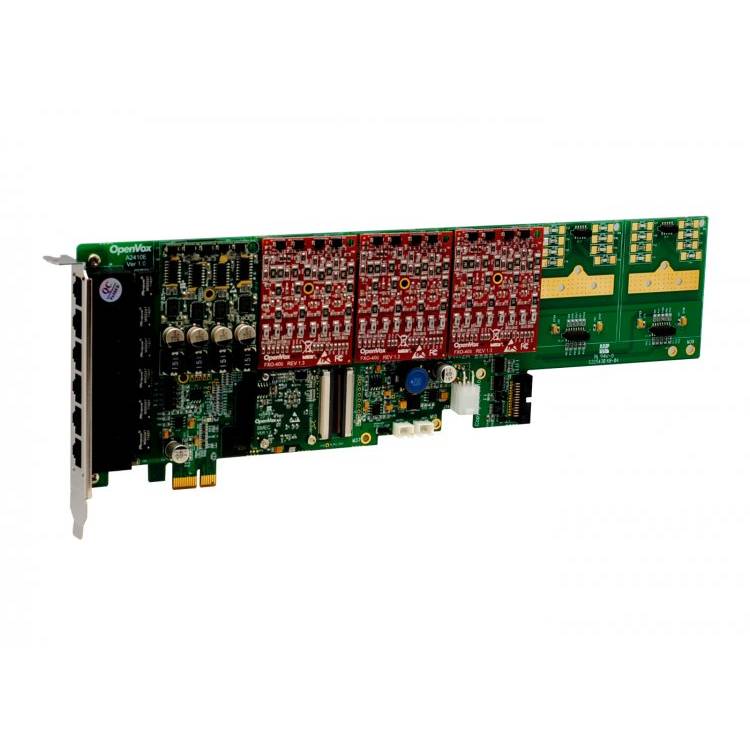

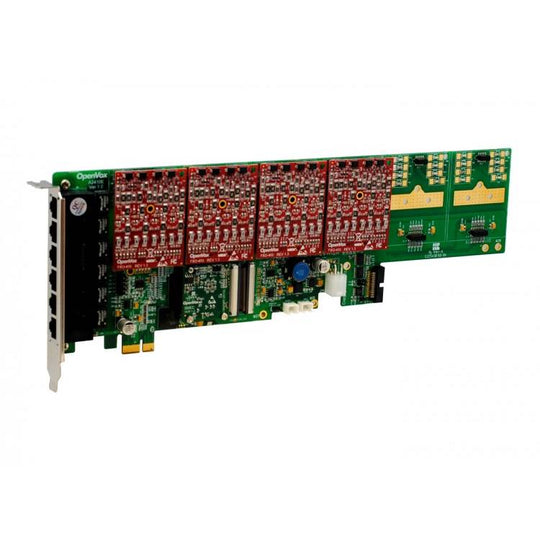

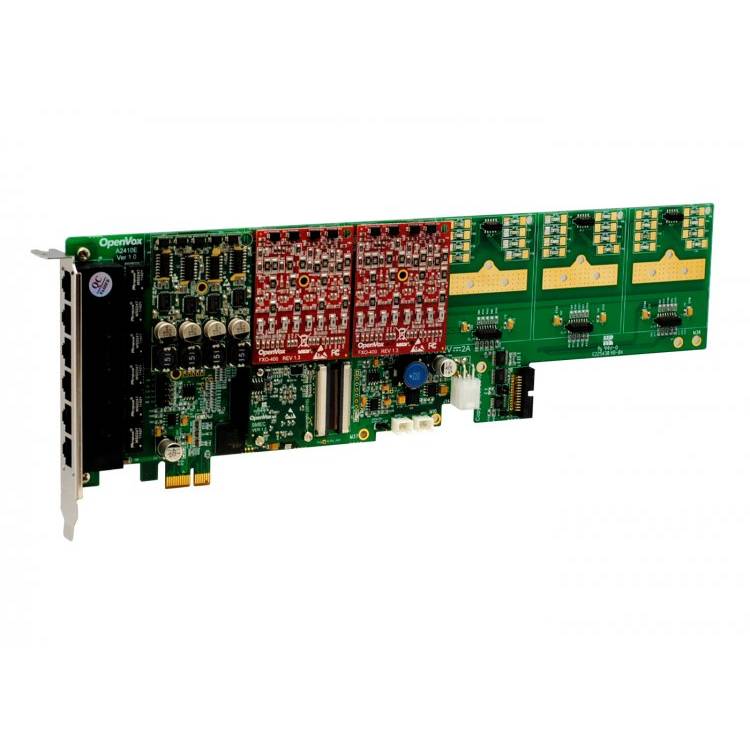

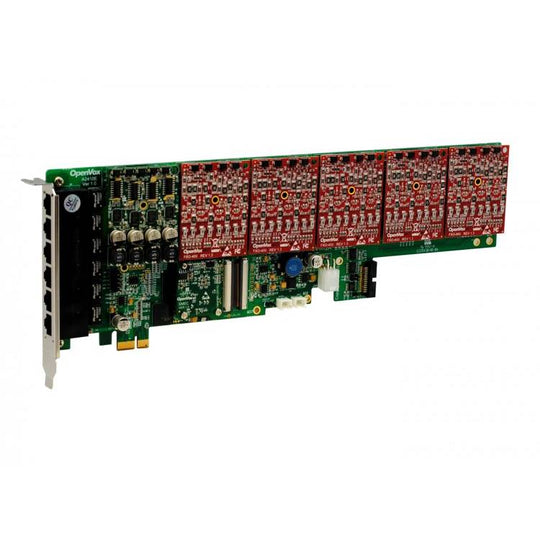

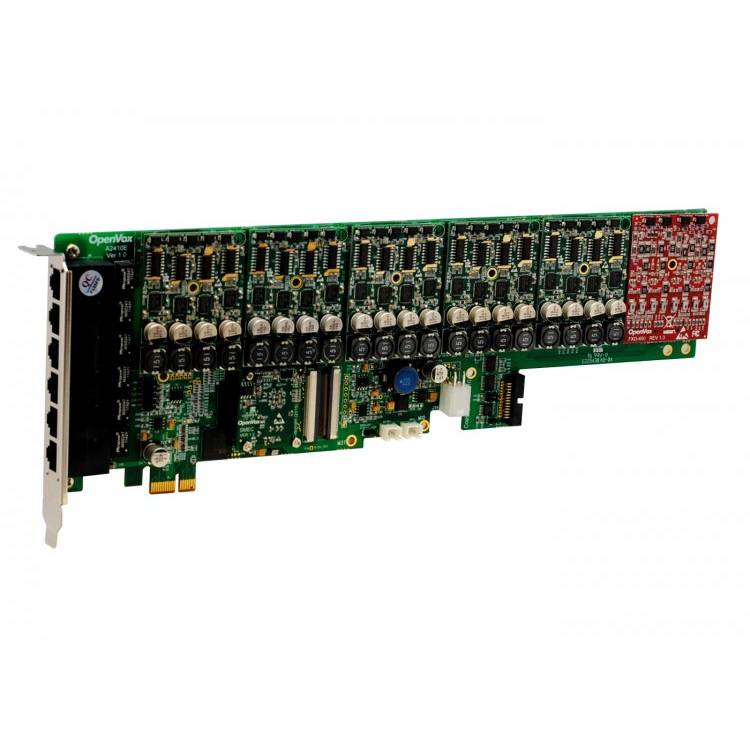

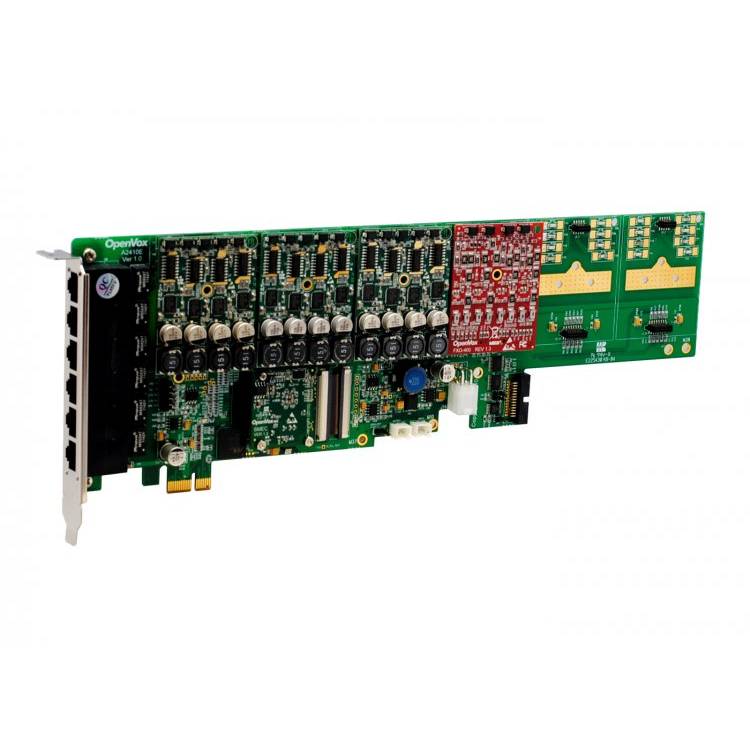

A(E)2410P/E is a new generation analog card with Octasic® Hardware Echo Cancellation Module on board. With the interchangeable quad-FXS and quad-FXO modules, AE2410P can eliminate the requirement for separate channel banks or access gateways. The AE2410P with optional Octasic DSP module supports Telco-grade hardware echo cancellation on all channels, up to the card’s maximum configuration in 24 ports with no additional CPU load.AE2410P/E works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

Services And Features

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support

Technical Specifications

• Up to 24 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 6 quad FXS or FXO modules
• RJ45 connector
• 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
• 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI bus.
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 31.1*9.8*1.8cm
• Weight: 175g

Optional Octasic® DSP Echo Cancellation Module — EC2032

• 1024 taps/128 ms tail/channel (on all channel densities)
• Octasic® music protection
• Automatic level control (G.169)
• Field upgradeable algorithm
• V.25 / V.8 answer tone
• DTMF as per Q.24
• No CPU load as a result of echo cancellation.
• Does not increase the physical size of the card, and no additional slot is required.
• EC2032 (SMEC V1.1) power: 3.83W

Operating Systems
Linux (all versions, releases and distributions from 1.0 up)

Minimum Hardware Requirement

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI Slot
• 1 FXS400 or 1 FXO Module

Certification
FCC Part 15, FCC Part 68, CE(EN55022, EN55024), CS-03 and RoHS Compliant

Warranty:

• 1 Year Limited Manufacturer Warranty
