Vendor: Openvox

OpenVox A800E 8 Port Analog PCI-E Base Card, No Modules

SKU: A800E
Regular price $121.00 Sale price $121.00
Shipping calculated at checkout.
Out of stock
Description
Product Spotlight

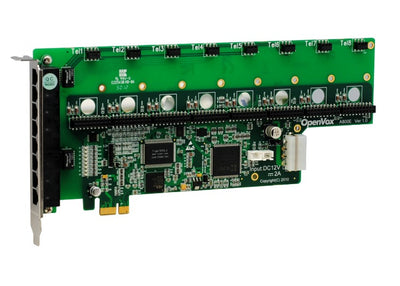

OpenVox A800E can be used for connecting analog telephones and analog POTS lines through a PC. It supports combinations of FXS and/or FXO modules for a total of 8 lines.

  • Up to 8 Simultaneous PSTN Calls (Per PCI-Express Slot)
  • Interchangeable FXS and FXO modules
Overview

OpenVox A800E delivers great voice quality in the telephony systems. With interchangeable FXS/FXO modules, it can eliminate the requirement for separate channel banks or access gateways.

The A800E contains 8 module banks. Each bank supports one analog interface. The module banks may be filled with up to 8 FXO or FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A800E works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

  • Channel Bank Replacement / Alternative
  • Small Office Home Office (SOHO) applications
  • Small and Medium Business (SMB) applications
  • Gateway Termination to analog telephones/lines

Services and Features

  • Caller ID and Call Waiting Caller ID
  • ADSI Telephones
  • Loopstart Signaling Support

Technical Specifications

  • Up to 8 ports through a combination of FXS and FXO modules
  • 8 RJ-11 interfaces on a single PCI bracket
  • PCI Express 1.0,
  • Firmware accelerate I/O access to achieve high stability
  • Power: 7W Minimum, 37W Maximum
  • Operation temperature: 0°C to 50°C
  • Storage temperature: -40°C to 125°C
  • Dimension: 246.7mm*111.4mm*16mm
  • Weight: 124g

Operating Systems

  • Linux (all versions, releases and distributions from 1.0 up)

Minimum Hardware Requirement

  • 800-Mhz Pentium III
  • 128MB RAM
  • Available PCI Express Slot

Certification

  • FCC Part 15, CE(EN55022, EN55024), LVD(EN60950-1) and RoHS Compliant

Five Year Warranty!
