Vendor: OpenVox

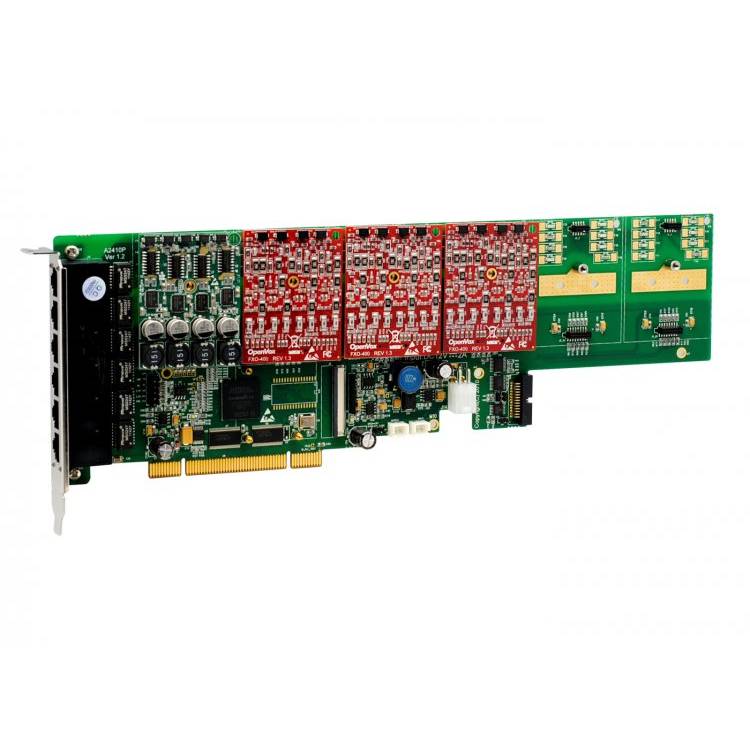

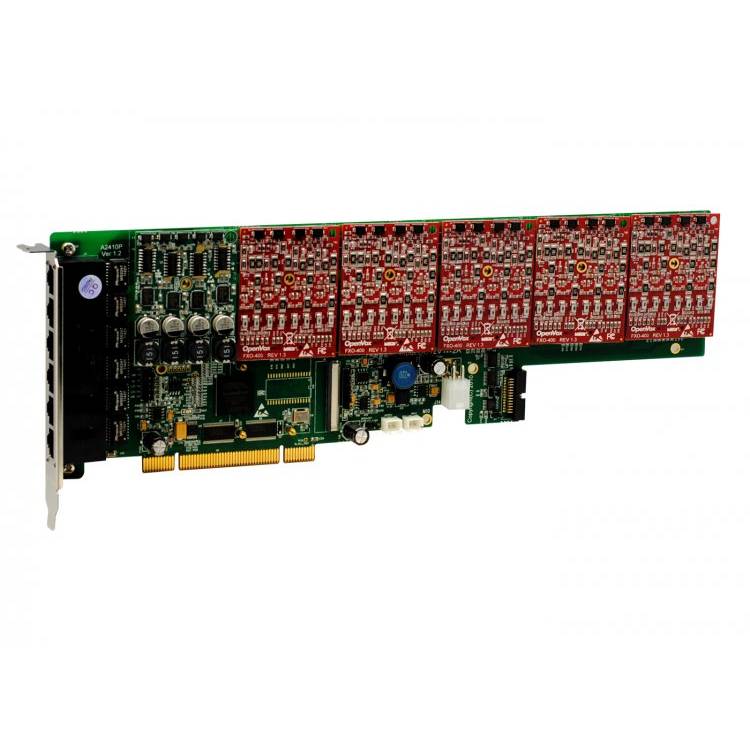

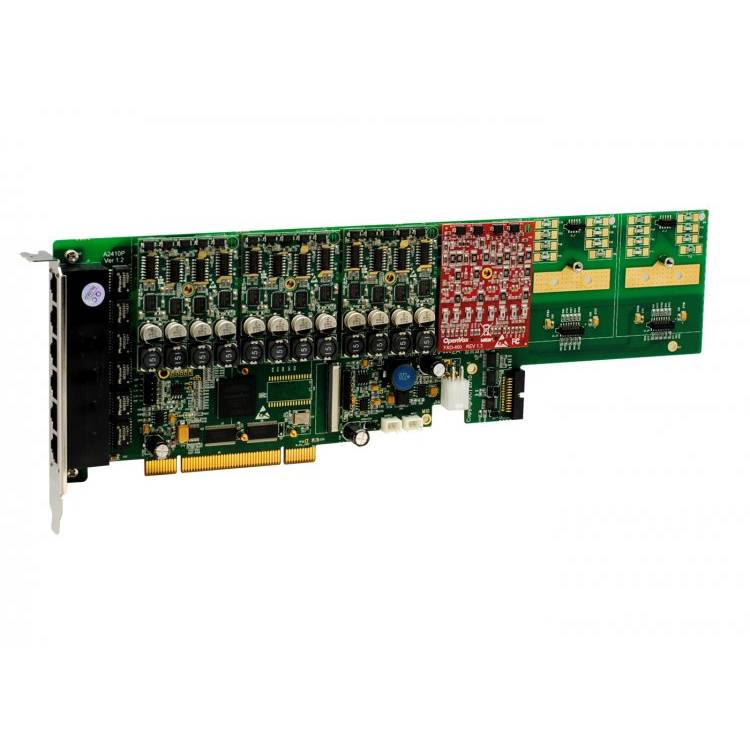

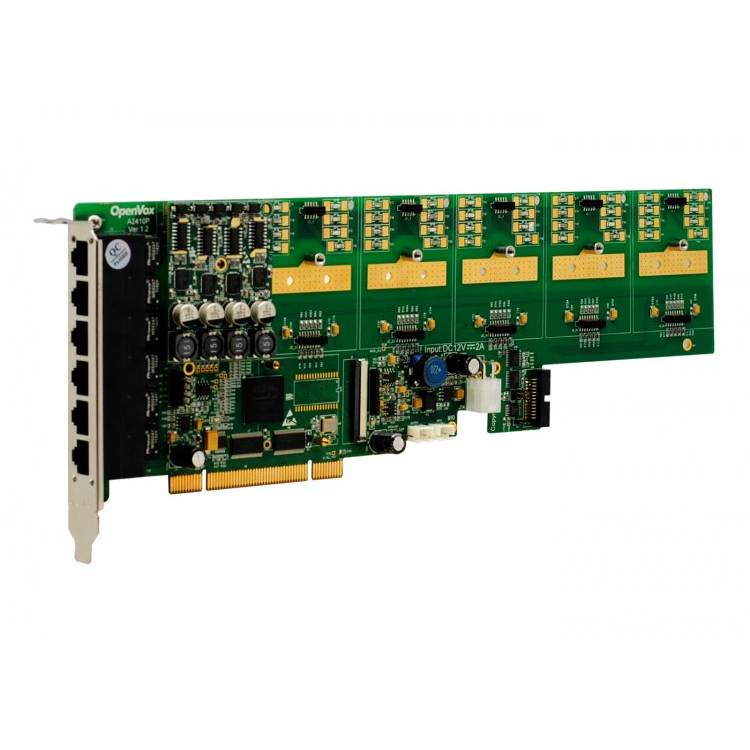

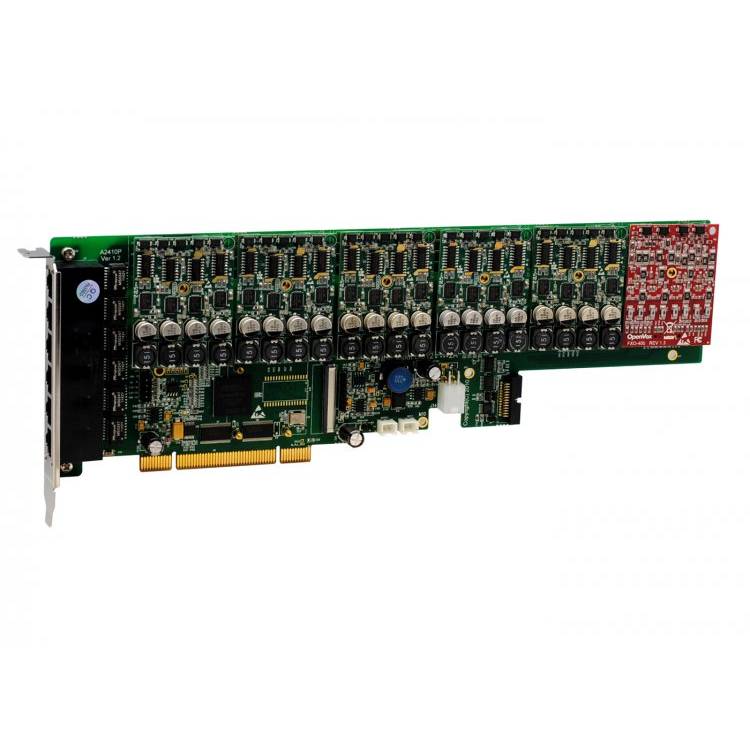

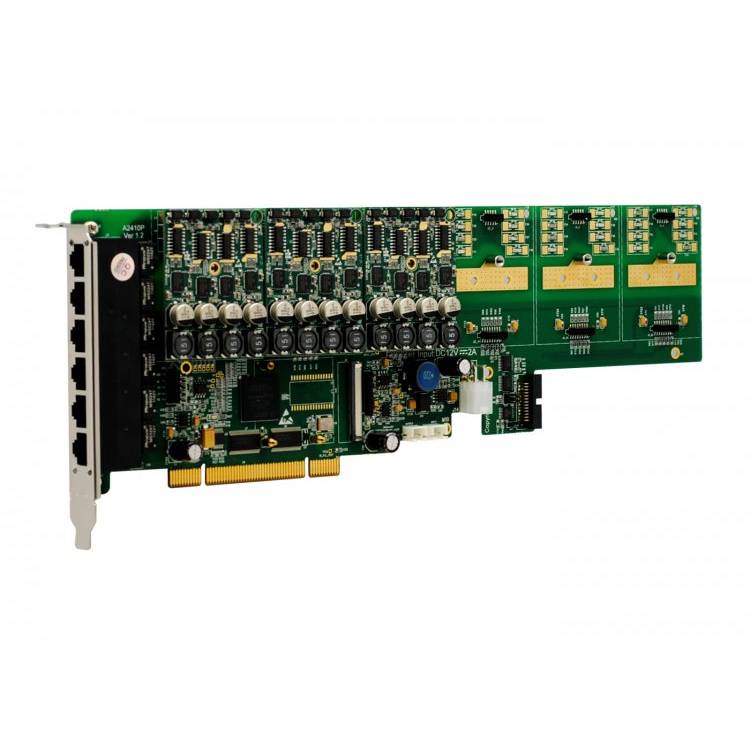

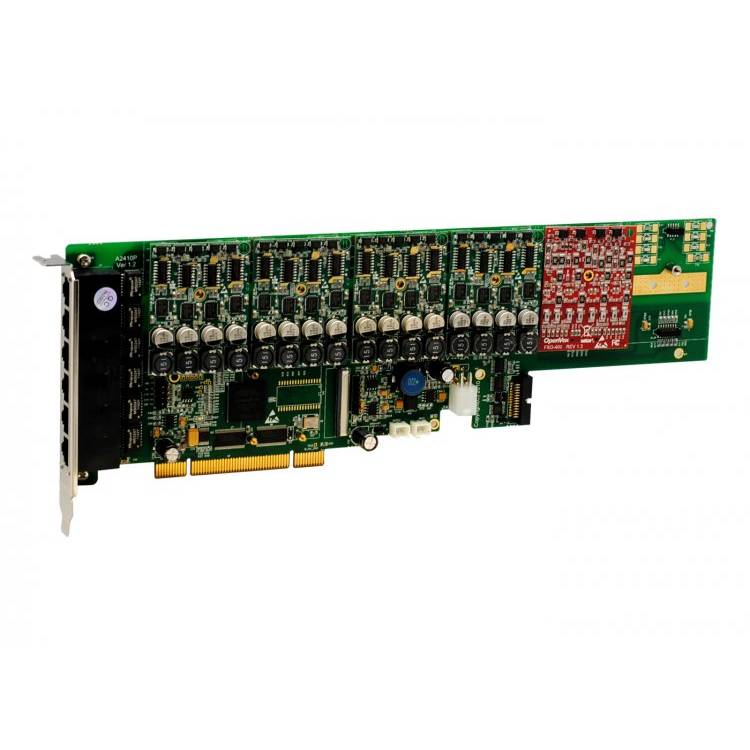

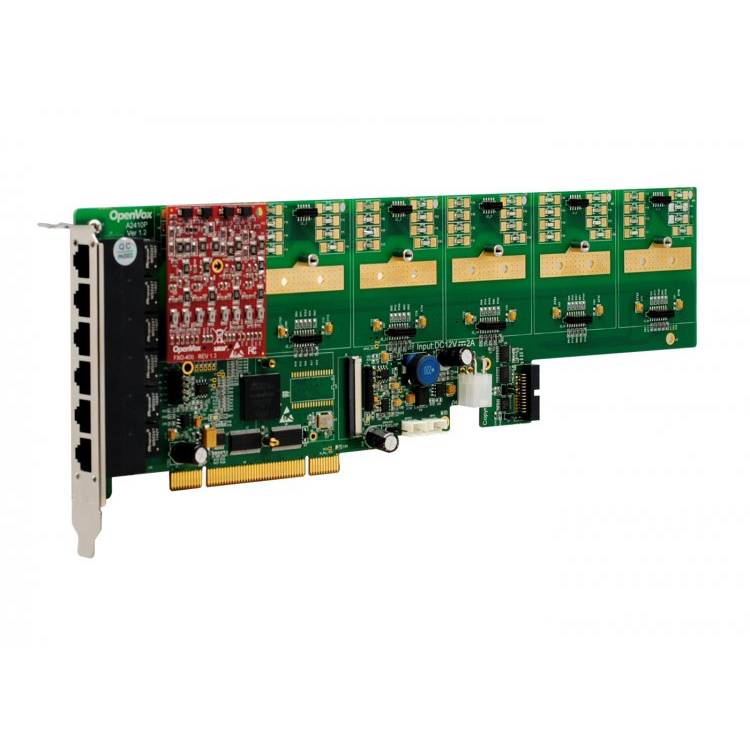

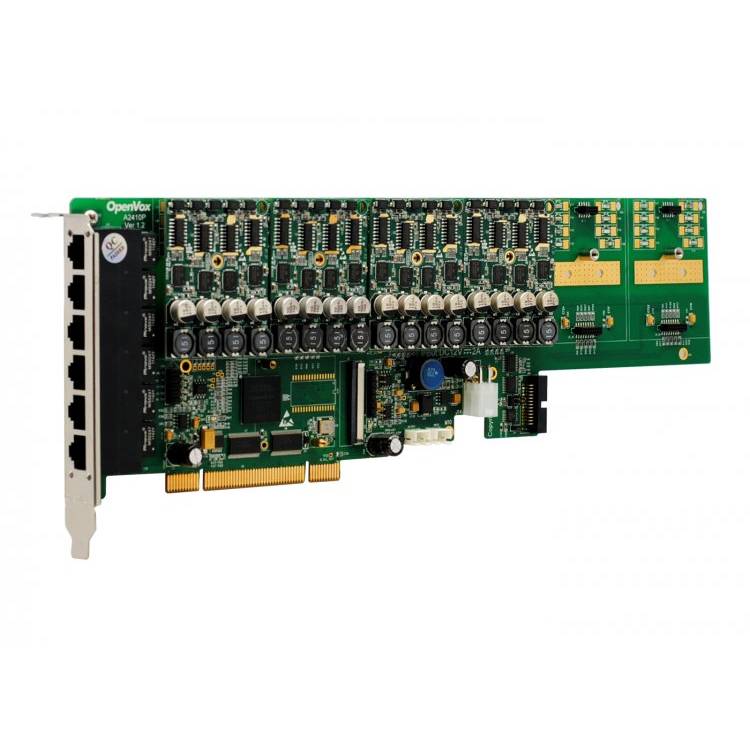

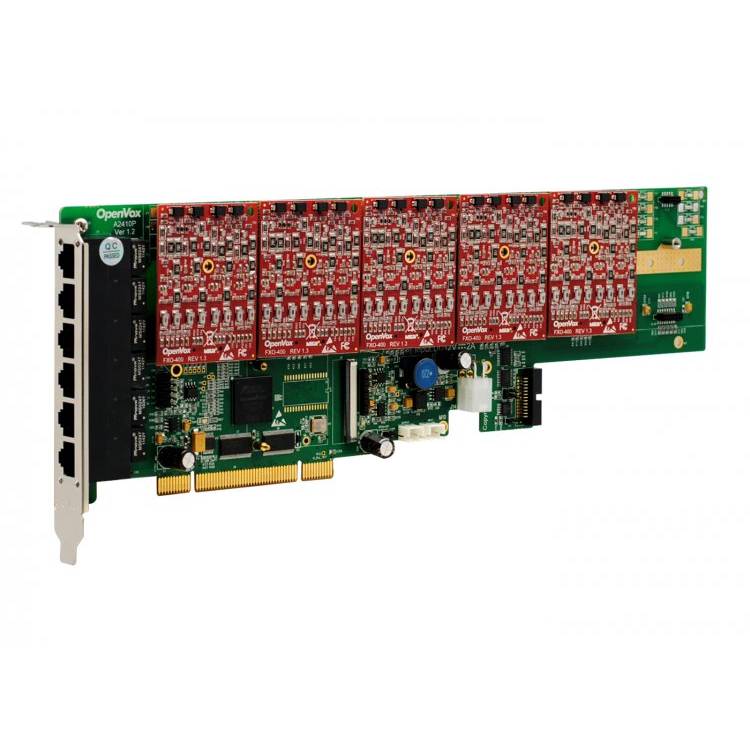

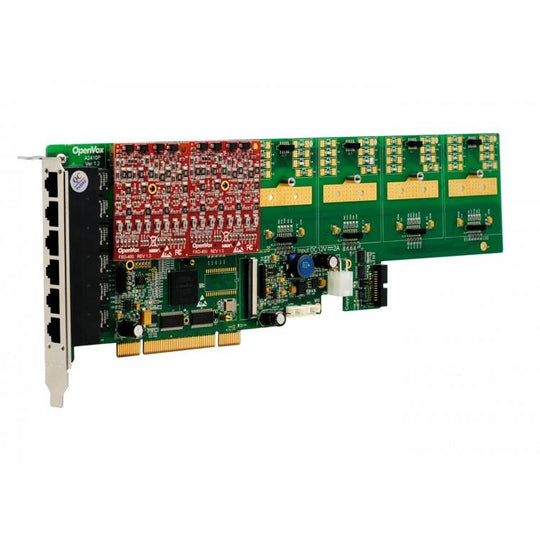

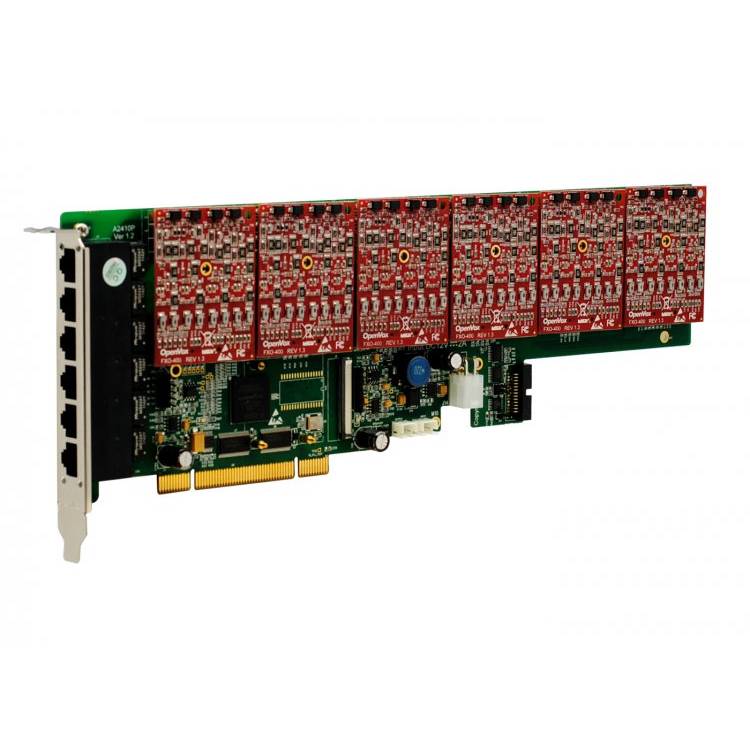

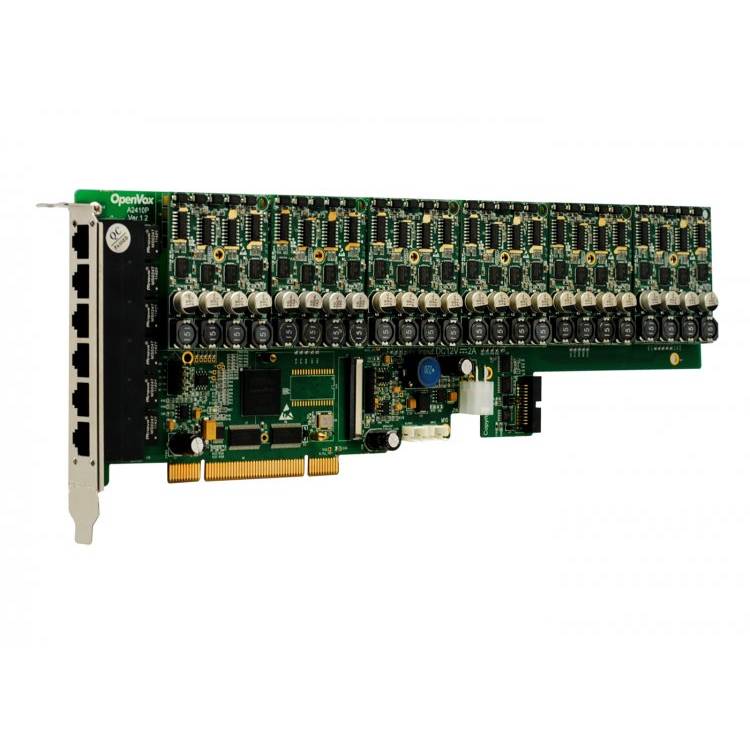

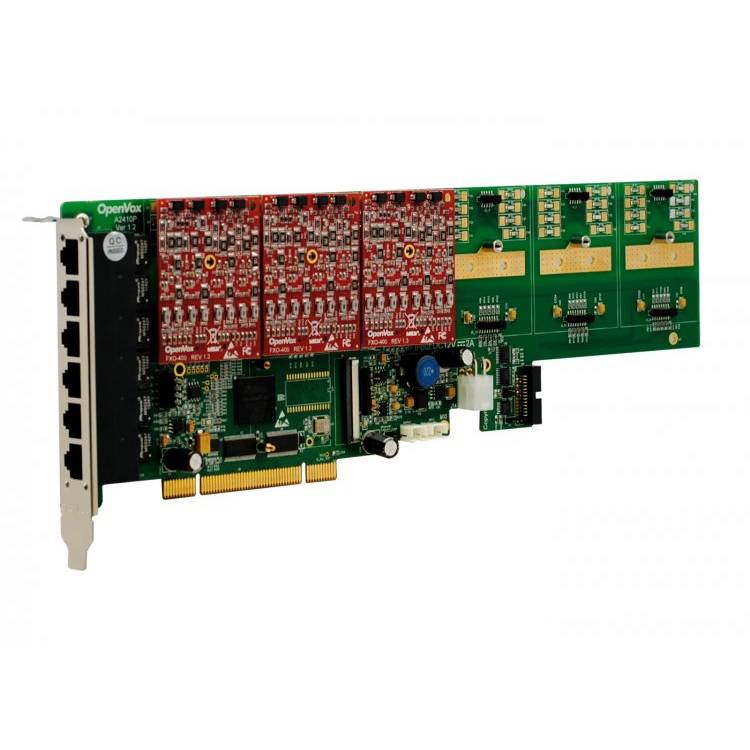

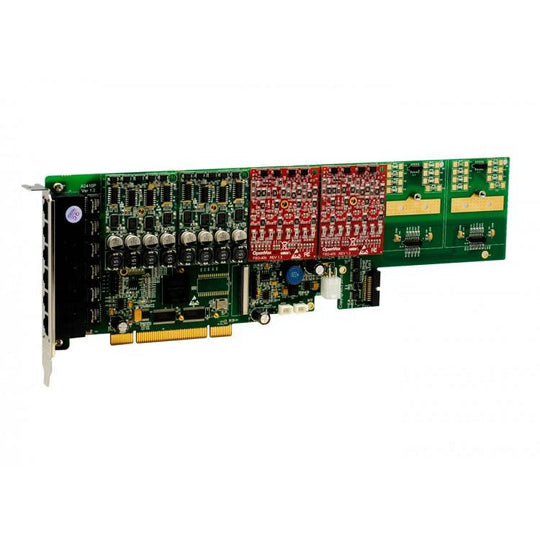

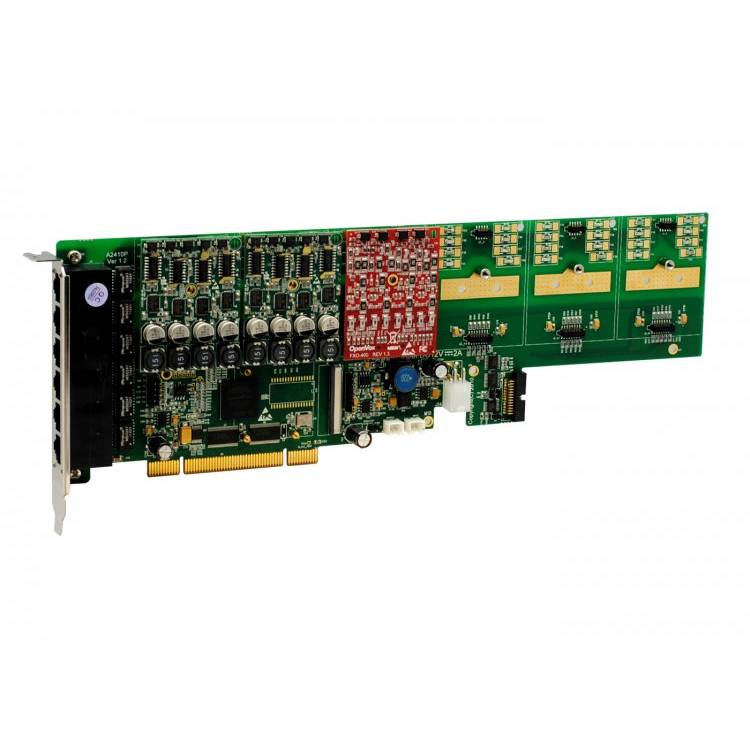

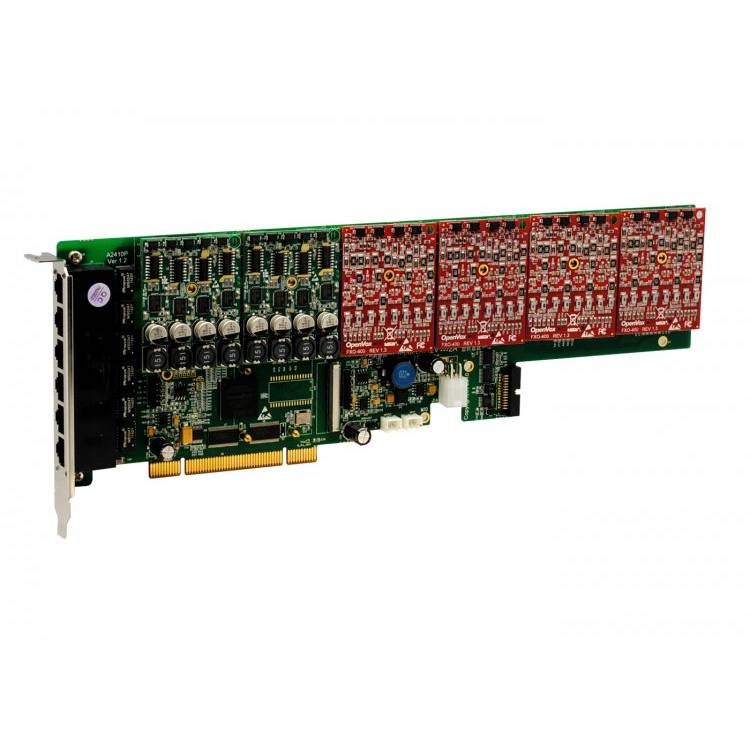

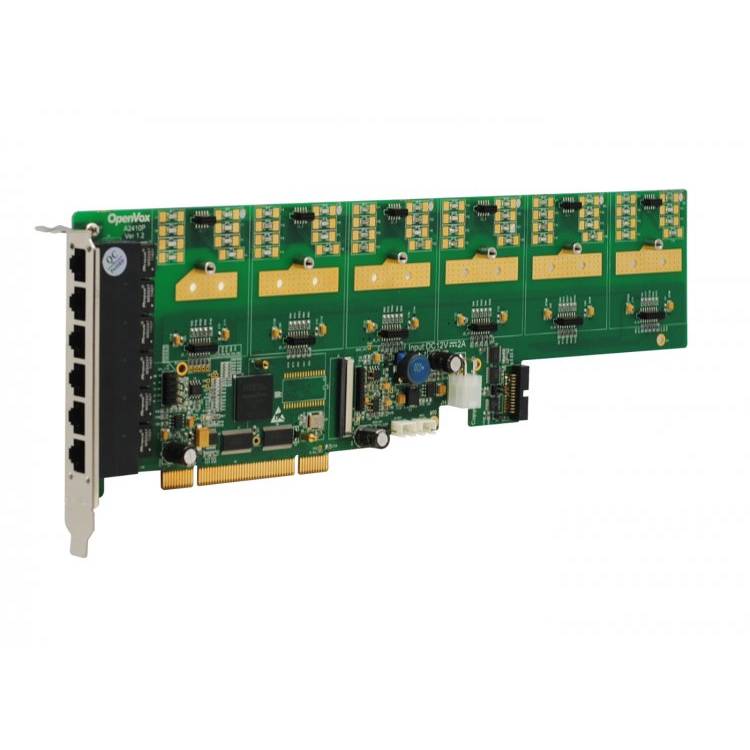

OpenVox A2410P 24 Ports PCI Series Cards

SKU: A2410P
Regular price $228.80 Sale price $228.80 Regular price $260.00
Sale 12.0% $31.20 (12.0%)
Shipping calculated at checkout.
PCI 24 PORT CARD A2410P 0 FXS 0 FXO
In stock: 2
Description

Product Spotlight
OpenVox A(E)2410P/E takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality on both FXO and FXS interfaces in all 24 ports.

  • Adjustable Interrupt Routing Design
  • Interrupts frequency adjustment
  • Up to 24 Simultaneous PSTN Calls (Per PCI Slot)
  • Compatible with All Commercially Available Motherboards
  • Octasic® Hardware Echo Cancellation Module Available

Overview
A(E)2410P/E is a new generation analog card with Octasic® Hardware Echo Cancellation Module on board. With the interchangeable quad-FXS and quad-FXO modules, AE2410P can eliminate the requirement for separate channel banks or access gateways. The AE2410P with optional Octasic DSP module supports Telco-grade hardware echo cancellation on all channels, up to the card’s maximum configuration in 24 ports with no additional CPU load.AE2410P/E works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

  • Channel Bank Replacement / Alternative
  • Small Office Home Office (SOHO) applications
  • Small and Medium Business (SMB) applications
  • Gateway Termination to analog telephones/lines

Services And Features

  • Caller ID and Call Waiting Caller ID
  • ADSI Telephones
  • Loopstart Signaling Support

Technical Specifications

  • Up to 24 ports through a combination of FXS400 and FXO400 modules
  • Full-length analog card
  • Up to 6 quad FXS or FXO modules
  • RJ45 connector
  • 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
  • 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
  • Autosense compatibility with 5 V and 3.3 V PCI bus.
  • FPGA design, upgradeable firmware onsite
  • Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
  • Operation temperature: 0°C to 50 °C
  • Storage temperature: -40°C to 125°C
  • Size: 31.1*9.8*1.8cm
  • Weight: 175g

Optional Octasic® DSP Echo Cancellation Module — EC2032

  • 1024 taps/128 ms tail/channel (on all channel densities)
  • Octasic® music protection
  • Automatic level control (G.169)
  • Field upgradeable algorithm
  • V.25 / V.8 answer tone
  • DTMF as per Q.24
  • No CPU load as a result of echo cancellation.
  • Does not increase the physical size of the card, and no additional slot is required.
  • EC2032 (SMEC V1.1) power: 3.83W

Operating Systems
Linux (all versions, releases and distributions from 1.0 up)

Minimum Hardware Requirement

  • 800-Mhz Pentium III
  • 128MB RAM
  • Available PCI Slot
  • 1 FXS400 or 1 FXO Module

Certification
FCC Part 15, FCC Part 68, CE(EN55022, EN55024), CS-03 and RoHS Compliant

Warranty:

  • 1 Year Limited Manufacturer Warranty
