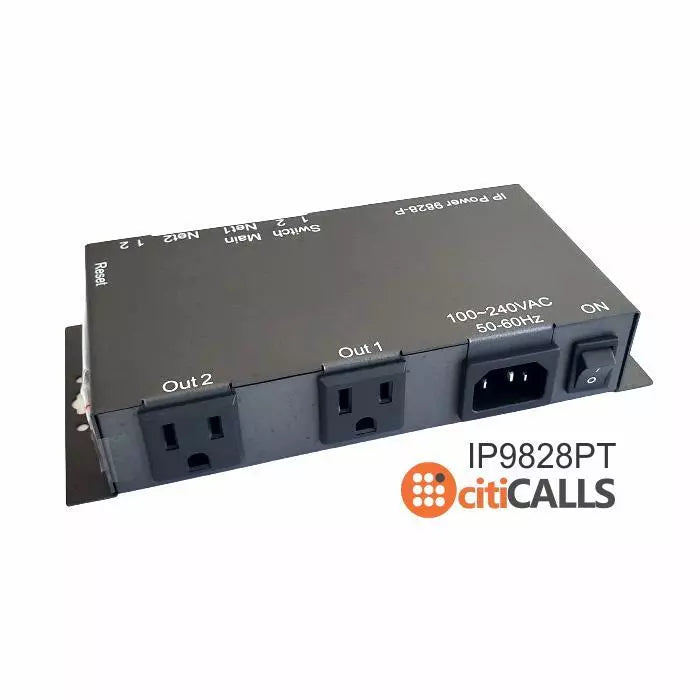

Aviosys IP9828PT 2 Port Web Power Controller Switch Pro Reboot w Ping Timer

Aviosys IP9828PT is the Next Generation Web Power Controller (The "IP9828PT" is the upgraded version to the IP9828)

The IP9828PT is a web-controlled power distribution unit. This model has a metal enclosure built that is slim and low height of 3.5 cm and with a small footprint that best suits location where you have limited space.

This model can be used worldwide with the Power Cord plug that is required for your country's power connector. The power cord is sold separately

Please see the power cord connector type guide below:

Special Features:

• 2x C13 outlets, 10A
• 100~240VAC C14 in, max 15A
• Latched Relay design (Green)
• 2x programmable button
• Surge suppressor circuit
• Auto Timer inside
• VPN Client Built-In

Standard Features:

• Magnetic "Latching Relay" (KEEP relay)
• Low Power Consumption.
• Manual Direct Command on each port (2 buttons)
• Current Sensor Meter Detection (on both ports)
• Power surge protection
• Easy back-up and save functions like Time Schedule, Network Setting, Ping Setting.
• Time Schedule.
• Log Capability
• Email PoP3 ON/OFF control
• Wake on LAN / Shutdown on LAN
• uPNP. Port forwarding not required, simple enter the Web Gui via WAN
• SSH/Telnet, HTTPS-HTTPS SSL 3.0, SNMPv3
• MQTT (CNT2)

Specifications:

• Dimensions: 195x88x35 mm (7.67" x 3.46" x 1.37")
• Power Input: 100~240VAC
• Maximum Current Rate: 10A
• Maximum Total Loading: 15A / 110V & 10A / 220V
• Interface: 4 LED indicator lights button
• Reset: Hardware Reset Button
• On/Off: 2 Push Buttons
• Network: 2 RJ45, 10/100 Ethernet WAN/LAN+

USA Power Cord Order Guide (NEMA 5-15 to C13)

• PXT101_3, 3 FT Standard
• PXT101, 6 FT Standard
• PXT101_10, 10 FT Standard
• PXT101143, 3 FT Heavy Duty
• PXT101146, 6 FT Heavy Duty <-- Recommended
• PXT1011410, 10 FT Heavy Duty
