Aviosys IP9258TP 4 Port Web Power Distribution Control Switch Unit PDU w Auto-PING

Aviosys IP9258TP 4 Port Web Power Distribution Control Switch Unit PDU w Auto-PING

Regular price $167.40
Regular price $186.00 Sale price $167.40
Sale Sold out
Shipping calculated at checkout.

Model: IP9258TP (with Auto-Ping Feature)

Retail Price: $186.00

The IP POWER IP9258T/TP is a web controller which can be easily used in the networking industry field. With the remote network control technology, user can control or query the power supply of connected devices. User can easily do this in any browser over the internet or over the local area network, no special program is required.

You can remotely control any Powered devices including Personal Computer, Server, Netowkr Router or Switches, and even security and surveillance system.

Main Features

  • Input 90-230VAC
  • Output 8A/100VAC or 8A/240VAC
  • Use of regular 15A PC Power Cord

Front Panel:

  • Power Reset Button
  • 4 LED Status Indicator
  • 9 PIN Serial Port
  • 10/100 Mbps Ethernet Port
  • On/Off Buttons

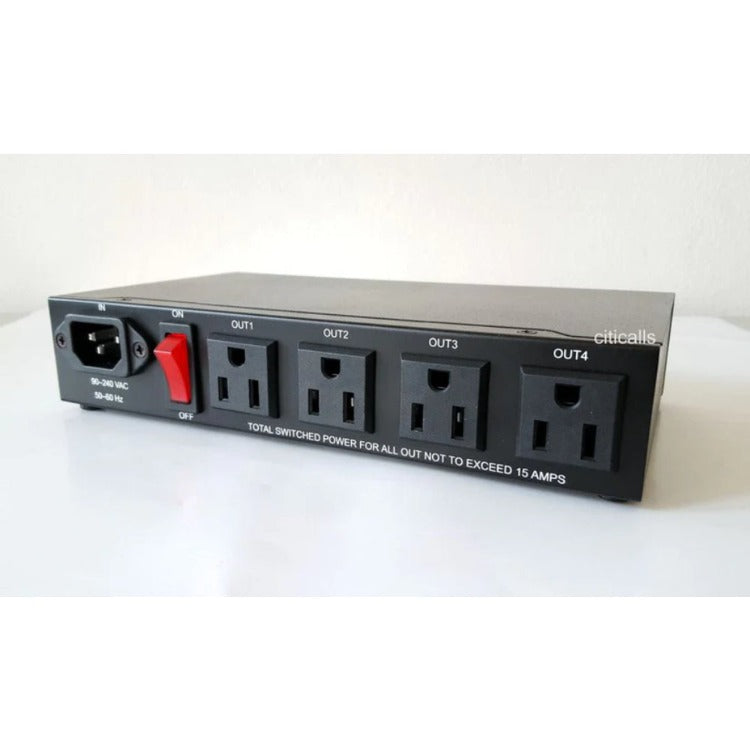

Back Panel:

  • Four (4) Power Outlets (NEMA5)
  • On/Off Switch
  • Input Power Plug Connector

Network Function

  • Web server design, via LAN or WAN (Requires opening Firewall Port to access via over Internet)
  • Support HTTP and DHCP/IP protocol. Windows SDK available, Telnet.
  • Security password
  • Watchdog design to avoid abnormal network interruptions
  • Timer and scheduler design, power can be booted by program.
  • Online update firmware available when required
  • SNMP functionality



  • English
  • Chinese Traditional


  • RJ-45 10 BASE-T/100BASE-TX


  • Maximum Voltage for 4 outlet total: 250V AC, 24V DC
  • Maximum Current for 4 outlet total: 15A AC/DC
  • Maximum Rated Current (Each Outlet): 6A AC/DC

The NEMA5 are popularly use in the following countries:

  • Brazil
  • China
  • Canada
  • Japan
  • Mexico
  • Philippines
  • Taiwan
  • Thailand
  • USA
  • South America

Regulalatory Approvals

  • FCC
  • CE
  • C-Tick
  • RoHS

What's Included

  • IP92858TP
  • Quick Installation Guide

Power Cord is NOT included and is sold separately  You will require a PC Type Power 15 14 AWG Cord

Series Models:

  • IP9258T
  • IP9258TP - includes Ping Function
