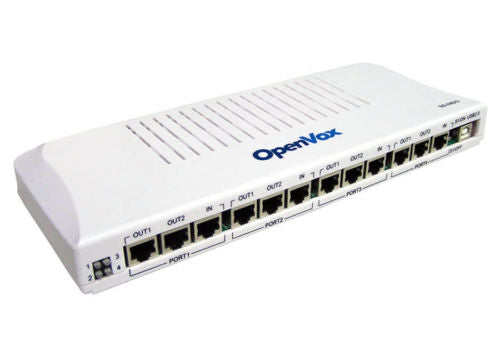

FB40 is a 4-port ISDN BRI interface failover box. It can better protect the unpredictable problems happen to the Asterisk PBX. It will provide an effective way to backup the Asterisk PBX when undesirable changes are detected (often when Asterisk fails or power-off of the system). FB40 provides a reliable and flexible solution to Asterisk PBX.
FB40 is controlled through an Asterisk loadable module res_failover.so. This module keeps sending "running" signal to FB40 when Asterisk is running. Once Asterisk is down or system power is cut off, the module will not be able to send out the "running" signal to FB40 and thus FB40 will automatically switch to the standby server.
Technical Specifications
Easy installation; uses USB to connect computer or server
Industry standard USB type B connector
USB 2.0 and 1.1 compliant
Low power consumption, takes power from USB bus
Standard length type A to type B cable provided
Supports hardware watchdog
Supports up to 4 ISDN BRI interfaces
Supports multiple FB40 devices in one system
Fully supports Asterisk (Version1.2/1.4/1.6)
Small plastic enclosure
4 power supply indicator lights
Dimension: 28.5cm*11.0cm*3.4cm
Weight: 448g
Certification FCC Part 15, CE(EN55022, EN55024) and RoHS Compliant Five Year Warranty!
