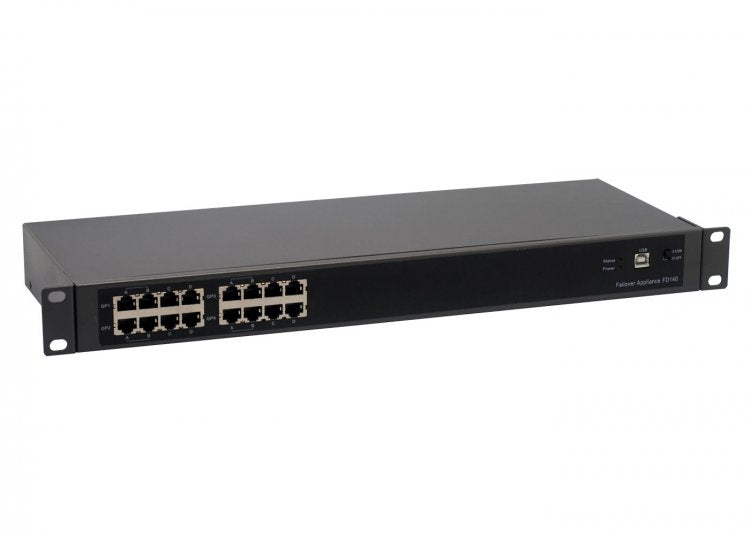

OpenVox Asterisk IPPBX Failover Box - 4 Digital PRI T1 E1 BRI 1U w 1 ETH

FD140 is a 4-port E1/T1/BRI interface failover appliance. It can better protect the unpredictable problems happen to the Asterisk PBX. It will provide an effective way to backup the Asterisk PBX when undesirable changes are detected (often when Asterisk fails or power-off of the system).

• Support up to 4 Port Digital T1/E1/PRI/BRI Failover Appliance
• Support multiple FD140 devices in one system
• Support all compatible PRI and BRI interface cards
• Unique highlight：1 USB power supply

Overview
FD140 provides a reliable and flexible solution to Asterisk PBX.

FD140 is controlled through an Asterisk loadable module res_failover.so. This module keeps sending “running” signal to redundant server when Asterisk is running. Once Asterisk is down or system power is cut off, the module will not be able to send out the “running” signal to FD140 and thus FD140 will automatically switch to the redundant server.

Technical Specifications

• 4 E1 / T1 / BRI ports
• Easy installation; use USB to connect computer or server
• Industry standard USB type B connector
• USB 2.0 and 1.1 compliant
• Two power supply indicator lights
• Support the BRI or PRI circuit connection
• Support multiple FD140 devices in one system
• Support hardware watchdog
• Low power consumption, take power from USB bus
• Fully support Asterisk (Version1.2/1.4/1.6)
• Dimension: 44cm*6.6cm*4.5cm
• Weight: 1458g

Five Year Warranty!
