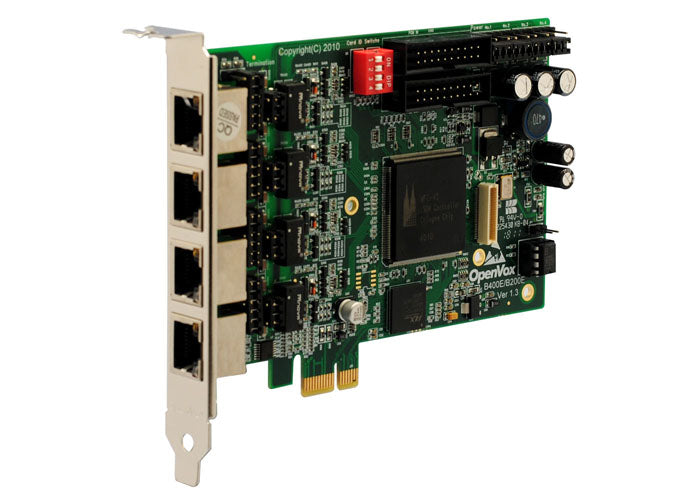

OpenVox B400E 4 Port ISDN BRI PCI-E card

OpenVox B400E provides 4 ports of S/T BRI interface. All 4 BRI ports can be configured for TE or NT mode individually by jumpers. This port configuration is detected by the driver automatically.

• Up to 8 Simultaneous Voice Calls Over 4 ISDN BRI Lines (Per PCI-Express Slot)
• Mix TE and NT Modes as Required

Overview

B400E S/T BRI interface card delivers great voice quality in the telephony systems. It turns your legacy ISDN BRI equipment into powerful Voice over IP devices and provides a soft migration path from ISDN technology to the new Voice over IP world.

The B400E brings powerful ISDN BRI connectivity to your Linux machine. It comes with fully GPLed drivers for the Linux kernel. Multiple B400E can be interconnected over an external PCM bus. The card’s active channel switching capability is also working over the external PCM bus.

B400E works with Asterisk^®, Elastix^®, FreeSWITCH^™, PBX in a Flash, trixbox^®, Yate^™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

• ISDN BRI PBX (embedded)
• VoIP BRI Gateways
• ISDN LAN Routers for BRI
• ISDN Least Cost Routers for BRI
• ISDN Test Equipment for BRI
• PBX to PBX trunking

Technical Specifications

• Up to 4 ports of S/T BRI interface
• 4 RJ-45 interfaces on a single PCI bracket
• ITU-T I.430 and TBR 3 certified and S/T ISDN supporting in TE and NT mode
• PCI Express 1.0
• DTMF detection on all B-channels
• Multiparty audio conferences bridge
• PCM bus connectors daisy chaining
• Each of the 4 ports can be independently configured for TE or NT mode
• Power: 0.93W Minimum, 8.8W Maximum
• Operation temperature: 0°C to 50°C
• Storage temperature: -40°C to 125°C
• Dimension: 139mm*99.3mm*16mm
• Weight: 104g

Operating Systems

• Linux (all versions, releases and distributions from 1.0 up)

Minimum Hardware Requirement

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI-Express Slot

Certification

· FCC Part 15, CE(EN55022, EN55024), LVD(EN60950-1) and RoHS Compliant
