Model: MAG1000-32S Retail Price: $519.00

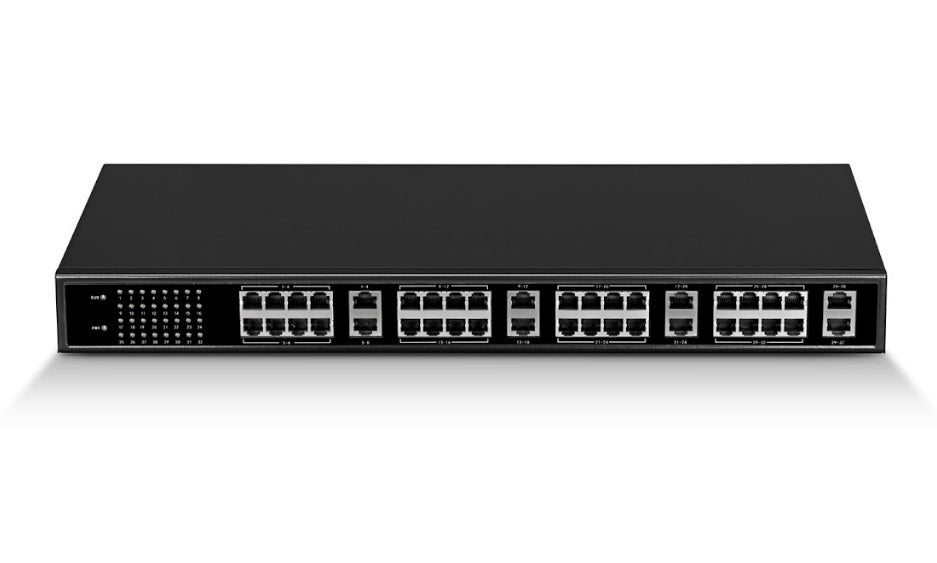

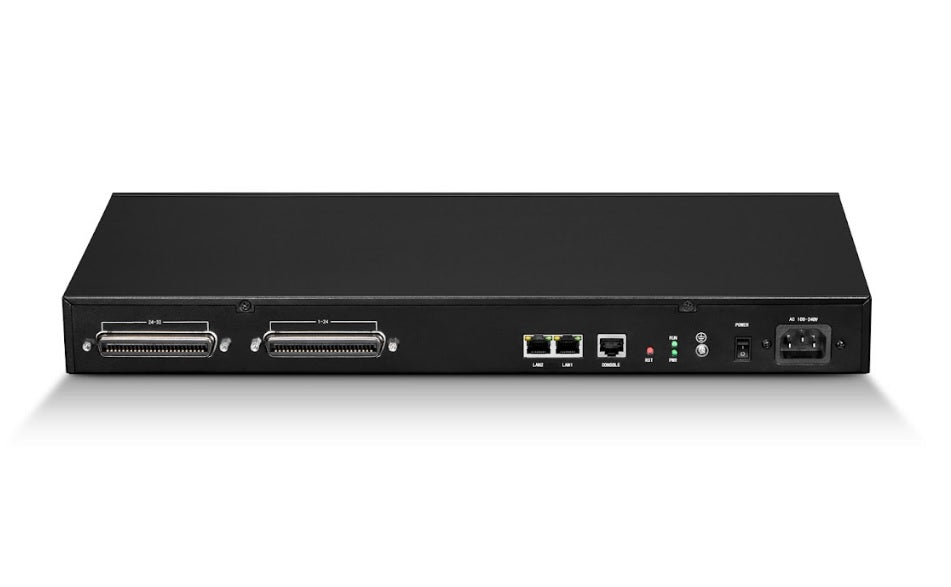

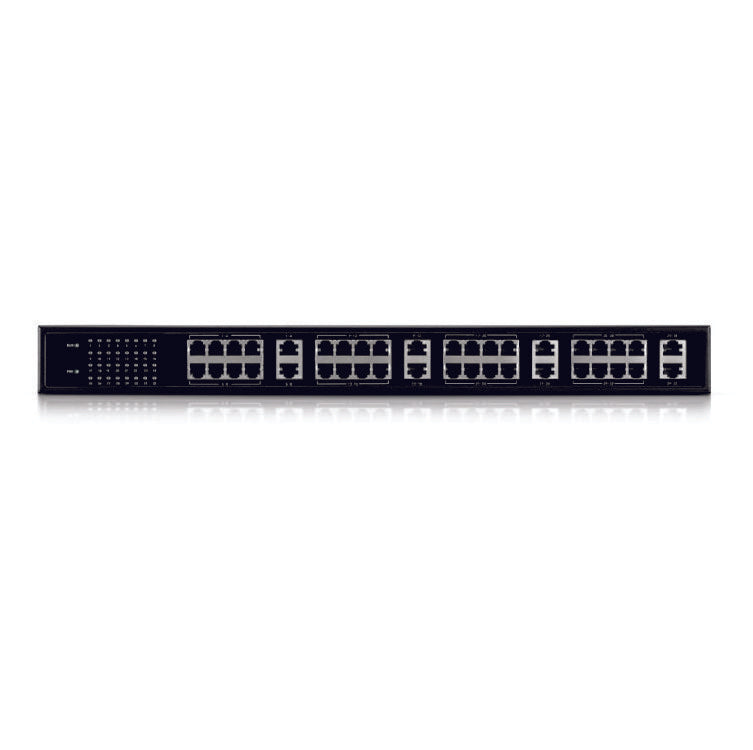

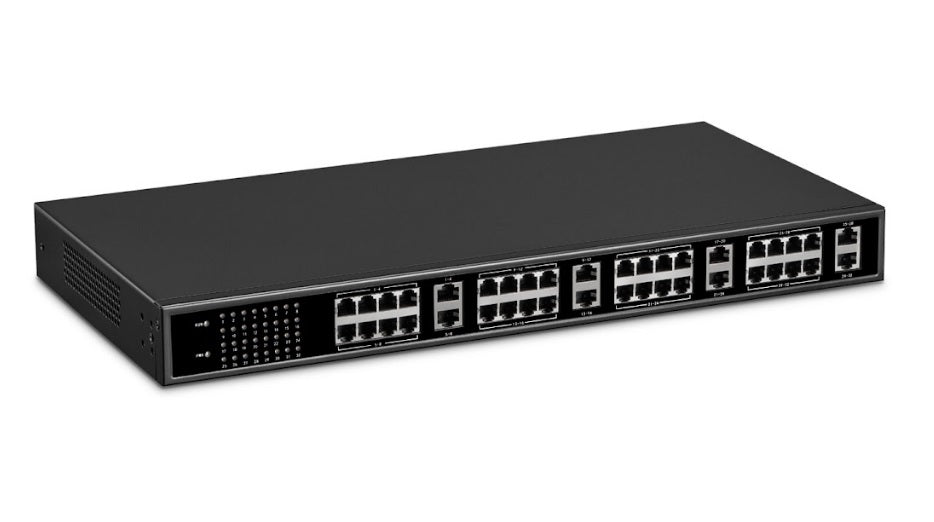

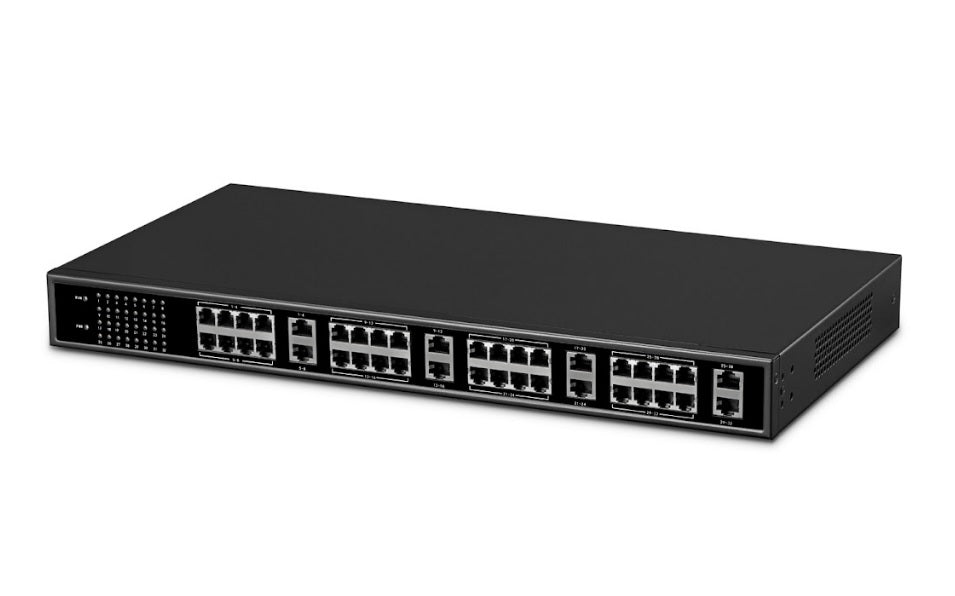

OpenVox MAG 1000 is a multifunctional analog gateway for seamless connection between IPPBX, fax machines, analog phones and operators. It provides three interfaces of RJ11/RJ45/RJ21, covering almost all the wiring needs of users in all scenarios. In addition, it has excellent full concurrent voice/ fax processing capabilities, strong performance and high stability, and provides high-quality call services for operators, enterprises, call centers and residential users in residential communities.
The MAG1000 Analog Gateways are developed for interconnecting a wide selection of codecs including G.711A, G.711U, G.729A, G.722, G.726, iLBC. MAG1000 series use standard SIP protocol and compatible with Leading VoIP platform, IPPBX and SIP servers, such as Asterisk, Issabel, 3CX, FreeSWITCH ,BroadSoft and VOS VoIP operating platform.
Performance and Features
32 FXS ports
Stable function, flexible dialplan and friendly
Strong security and high stability
Designed for almost all kinds of users
Fully Compatible with Leading SIP based VoIP
Support voice, fax and POS terminal access
System Features ● NTP time synchronization and client time synchronization ● Support modify username and password for web login ● Update firmware online, backup/restore configuration file ● Abundant Log Info, Automatically Reboot, Call status display ● Language selection (Chinese/English) ● Open API interface, support the secondary development of applications ● Support SSH remote operation and restore the factory settings Telephony Features ● Support Volume adjustment, Gain adjustment, call transfer, call hold, call waiting, call forward, Caller ID display ● Three way calling, Call transfer, Dial-up matching table ● Support T.38 fax relay and T.30 fax transparent, FSK and DTMF signaling ● Support Ring cadence and frequency setting, WMI (Message Waiting Indicator) ● Support Echo cancellation, Jitter buffer ● Support customizable DISA and other applications SIP Features ● Support add, modify & delete SIP Accounts ,batch add, modify & delete SIP Accounts ● Support multiple SIP registrations : Anonymous, Endpoint registers with this gateway, This gateway registers with the endpoint ● SIP accounts can be registered to multiple servers Network ● Network type：Static IP, Dynamic ● Support DDNS, DNS, DHCP, DTMF relay, NAT ● Telnet, HTTP, HTTPS, SSH ● VPN clients ：PPTP/OpenVPN/Zerotier/L2TP/N2N（Not available for Russia） ● Network Toolbox Certification ● CE
