Openvox Simbank-320 320 Channels 2G 3G 4G Gateway

Regular price $3,179.00 Sale price $2,797.52 Save $381.48
2 in stock

Model: Simbank-320
Retail Price:  $3,179.00

Special Order item. Ships directly from Factory.

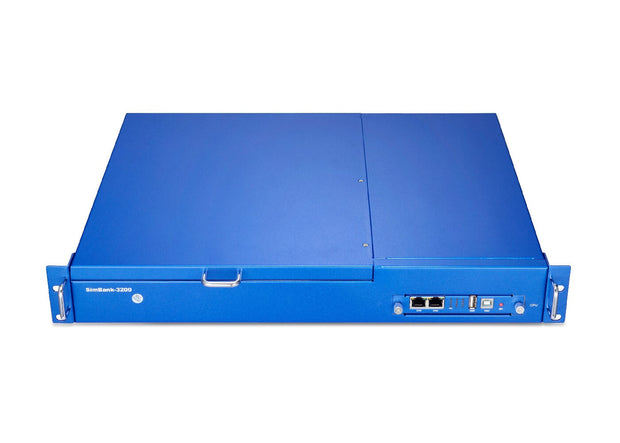

OpenVox Simbank-320
Simbank-320 is a device that can centrally store and manage a large number of sim cards, provides 320 channels SIM slots.

Model:  Simbank-320
SIM Card Slot: 320
Lan: 1×10/100M
Power Consumption: 25W
Power Supply: 100-240V AC
SIM Card Voltage: 1.8V/3V
Operation Temperature Range: 0℃ ~ 40℃
Operation Humidity Range: 10% ~ 90% non-condensing
Storage Temperature Range: -20℃ ~ 70℃

OpenVox Simbank is an equipment that can achieve the centralized management and flexible adjustment of a large quantity of sim cards.It equipped with 64, 128 and 320 card slots, which can match up with our wireless gateways perfectly. After having registered on the Simbank, the wireless gateways are capable to connect with sim cards remotely via TCP/IP without inserting sim cards in the gateways' slots. It features simple operation too. The machine can adapt perfectly to 2G/3G/4G frequency band. Besides, it is compatible with 2G, 3G and 4G sim cards, supporting dynamic allocation and hot plug of sim cards.


  • Compatible with 2G/3G/4G SIM cards
  • 320 SIM Slots depends on need
  • Dynamic Allocation of SIM Cards
  • Hot Swap of SIM Cards with No Service Interruption
  • Support call restriction of SIM Cards individually
  • Support SIM Card Switchover by Max Call Time
  • Support SIM Card Switchover by Max Call Count
  • Support SIM Card Switchover by Work Time
  • Lock SIM card by Call Time
  • Lock SIM card by Call Count
  • Lock SIM card by Call Receive Count
  • Support SIM card Group
  • Support one-to-one allocation of gateways and card group
  • Support inquiry mobile bill/number via SMS
  • Support SIM card information batch export
Network Features
  • Network Method: Static IP
  • Ping & traceroute
  • OPlink, NAT traverse
  • Network Toolkit
Management and Maintenance
  • Support cluster expansion
  • Friendly GUI and easy configuration
  • Support NTP time synchronization & Client time synchronization
  • Firmware Update by HTTP
  • Multiple Detailed LOG Output
  • Support Chinese/English interface


  • 1 Year Limited Manufacturer Warranty
