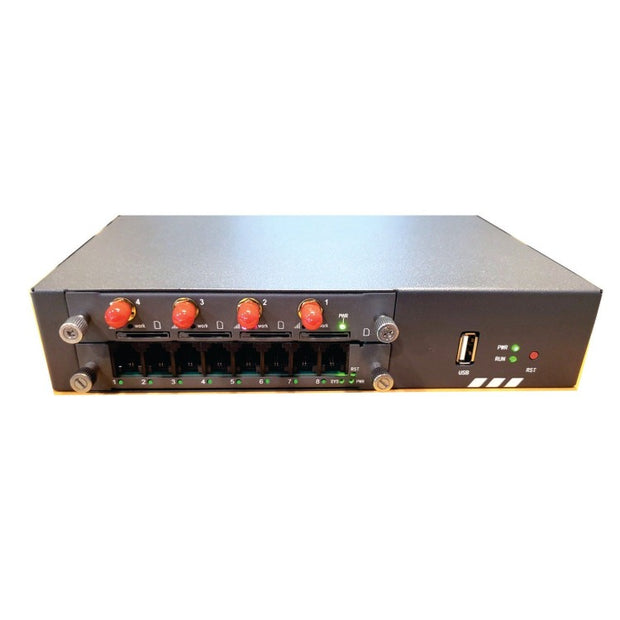

Openvox GW1202v2-4L8S Desktop Hybrid Gateway 4 2G 3G 4G LTE Channels 8 FXS
Openvox GW1202v2-4L8S Desktop Hybrid Gateway 4 2G 3G 4G LTE Channels 8 FXS
Openvox GW1202v2-4L8S Desktop Hybrid Gateway 4 2G 3G 4G LTE Channels 8 FXS
Openvox GW1202v2-4L8S Desktop Hybrid Gateway 4 2G 3G 4G LTE Channels 8 FXS
Openvox GW1202v2-4L8S Desktop Hybrid Gateway 4 2G 3G 4G LTE Channels 8 FXS
Openvox GW1202v2-4L8S Desktop Hybrid Gateway 4 2G 3G 4G LTE Channels 8 FXS

Openvox GW1202v2-4L8S Desktop Hybrid Gateway 4 2G 3G 4G LTE Channels 8 FXS

$1,253.05 $1,102.68 Save $150.37
2 in stock

Model: GW1202v2-4L8S
Retail Price: $1,253.05

  • 4 Channels of 4G/LTE Band Wireless
  • 8 FXS Analog Ports

Overview

The OpenVox Hybrid Gateway is the VoIP industry 1st Open Source Asterisk-based Hybrid VoIP Gateway solution for SMBs and SOHOs. With a friendly GUI and unique modular design, users may easily setup their customized Gateway. In house development can be completed through AMI (Asterisk Management Interface).

Technical Specifications:

  • Storage temperature range: -20~70℃
  • Operation temperature range: 0~40℃
  • Operation humidity range: 10%~90% non-condensing

Software & Platform:

  • Linux Asterisk

Features:

  • Simple and convenient configuration via Web GUI
  • Multiple Languages
  • Codecs support: G.711A, G.711U, G.729, G.723.1, G.722, G.726, GSM
  • 4G LTE Band binding (USA) - Other Countries available on request
  • SIP(RFC3261) compliance
  • Support diverse SIP, IAX2 protocols (coming soon)
  • DTMF Signaling support: RFC2833, Inband, SIP Info
  • Open API interface (AMI）
  • Echo Cancellation: ITU-T G.168 LEC
  • Support static IP and DHCP
  • Support OpenVPN and PPTP (coming soon)
  • Call Duration Limit
  • CLIR (Call Line Identification Restriction)
  • Call Waiting
  • Call Forwarding (unconditional, no reply, busy, not reachable)
  • SMS bulk transceiver, SMS automatically resent
  • Support HTTP SMS interface
  • SMS sent to Email
  • USSD transceiver
  • SMS remotely controlling gateway
  • IMEI number automatically modify
  • PIN identification
  • Mobile number portability (MNP)
  • Flexible routing settings & unlimited routing rules
  • Diverse extensible applications, such as IVR, DISA
  • Support configuration file backup and upload
  • Support for custom scripts, dial plans
  • Least Cost Routing (LCR), according to Time, Port, Calling Number
  • Independent System for Each Module
  • Affordable Price with Superior Performance
  • Hot-swap Design for both Sim cards and Modules
  • Compatible with Asterisk, Elastix, 3CX, FreeSWITCH Sip Server and VOS VoIP operating platform

WEB GUI Fix Addresses:

  • GWM420L 4G LTE       172.16.98.1
  • GWM800 FXO/FXS.    172.168.99.1
  • Default User: admin, Default Password: admin (for security, please change user and password before deployment)

Warranty: One Year Limited Manufacturer Warranty
