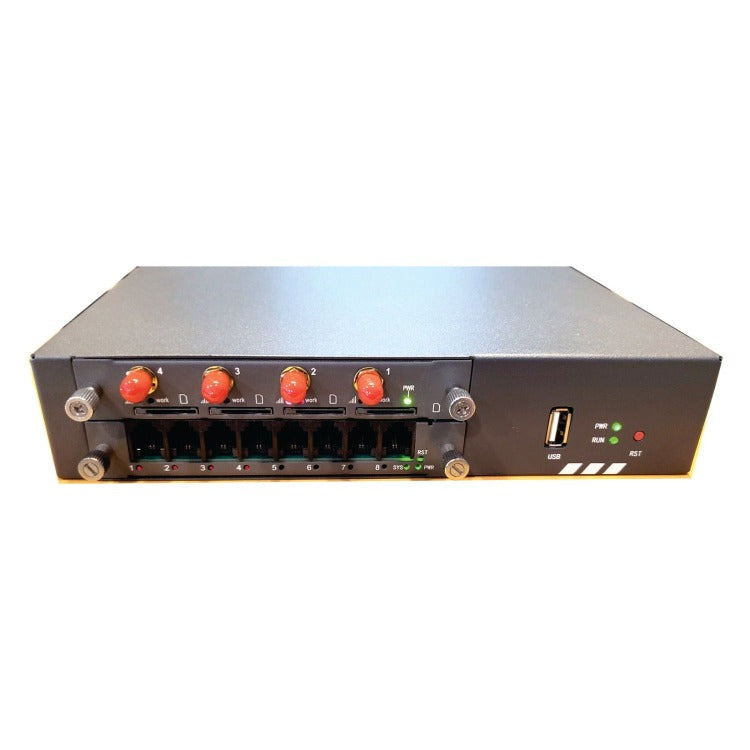

Openvox GW1202v2-4L4O Desktop Hybrid Gateway 4x4G LTE w 4 FXO

• 4 Channels of 4G/LTE Band Wireless
• 4 FXO Analog Ports

Overview

The OpenVox Hybrid Gateway is the VoIP industry 1st Open Source Asterisk-based Hybrid VoIP Gateway solution for SMBs and SOHOs. With a friendly GUI and unique modular design, users may easily setup their customized Gateway. In house development can be completed through AMI (Asterisk Management Interface).

Technical Specifications:

• Storage temperature range: -20~70℃
• Operation temperature range: 0~40℃
• Operation humidity range: 10%~90% non-condensing

Software & Platform:

• Linux Asterisk

Features:

• Simple and convenient configuration via Web GUI
• Multiple Languages

• Codecs support: G.711A, G.711U, G.729, G.723.1, G.722, G.726, GSM
• 4G LTE Band binding (USA) - Other Countries available on request
• SIP(RFC3261) compliance
• Support diverse SIP, IAX2 protocols (coming soon)
• DTMF Signaling support: RFC2833, Inband, SIP Info
• Open API interface (AMI）
• Echo Cancellation: ITU-T G.168 LEC
• Support static IP and DHCP
• Support OpenVPN and PPTP (coming soon)
• Call Duration Limit
• CLIR (Call Line Identification Restriction)
• Call Waiting
• Call Forwarding (unconditional, no reply, busy, not reachable)
• SMS bulk transceiver, SMS automatically resent
• Support HTTP SMS interface
• SMS sent to Email
• USSD transceiver
• SMS remotely controlling gateway
• IMEI number automatically modify
• PIN identification
• Mobile number portability (MNP)
• Flexible routing settings & unlimited routing rules
• Diverse extensible applications, such as IVR, DISA
• Support configuration file backup and upload
• Support for custom scripts, dial plans
• Least Cost Routing (LCR), according to Time, Port, Calling Number
• Independent System for Each Module
• Affordable Price with Superior Performance
• Hot-swap Design for both Sim cards and Modules
• Compatible with Asterisk, Elastix, 3CX, FreeSWITCH Sip Server and VOS VoIP operating platform

WEB GUI Fix Addresses:

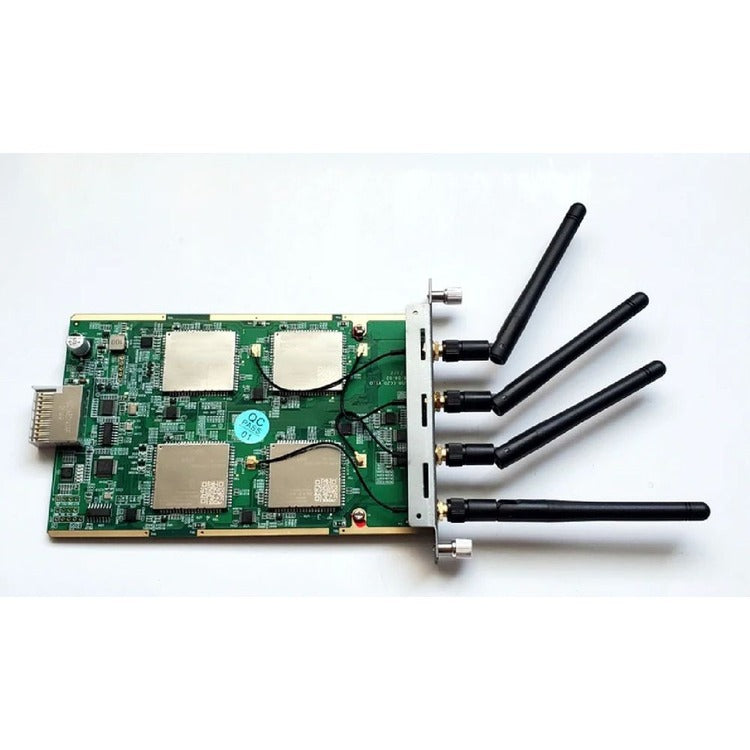

• GWM420L 4G LTE       172.16.98.1

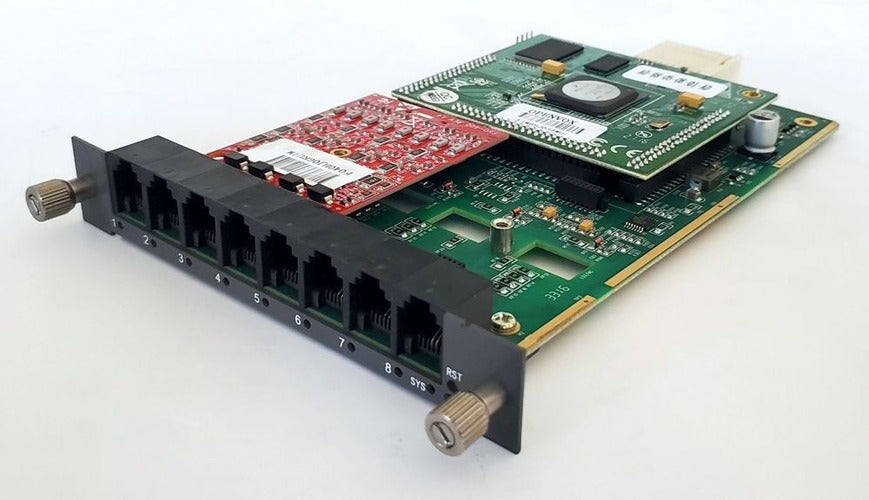

• GWM800 FXO/FXS.    172.168.99.1
• Default User: admin, Default Password: admin (for security, please change user and password before deployment)
