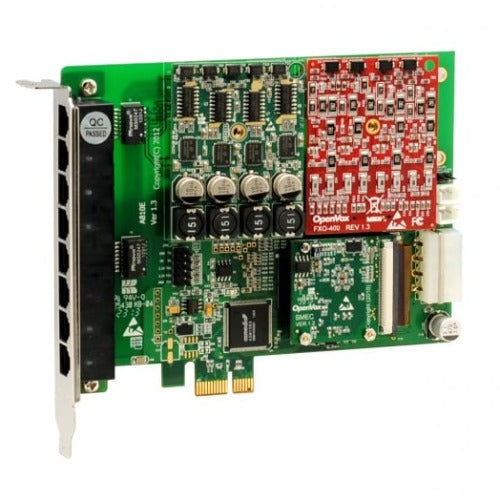

OpenVox AE810EF11 8 Port Analog PCI-E card 1 FXS400 1 FXO400 w Failover & EC2032

Model: AE810EF11
Retail Price: $1,514

Product Overview
OpenVox AE810EF is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

AE810EF is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The AE810EF contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

AE810EF works with Asterisk®, Elastix®, FreeSWITCH?, PBX in a Flash, trixbox®, Yate? and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Features

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support
• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCIe Slot)
• Compatible with All Commercially Available Motherboards

Target Applications

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

Technical Specifications

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• Optional Failover function with A810EF11 only.
• RJ45 connector
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*111.2mm*16mm
• Weight: 85g

Operating Systems

• Linux (all versions, releases and distributions from 1.0 up)

Minimum Hardware Requirement

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI-E x1 Slot

Certifications

• RoHS Compliant
• Certificates: FCC, CE and CS-03

A810EF / AE810EF Series Model Configuration
