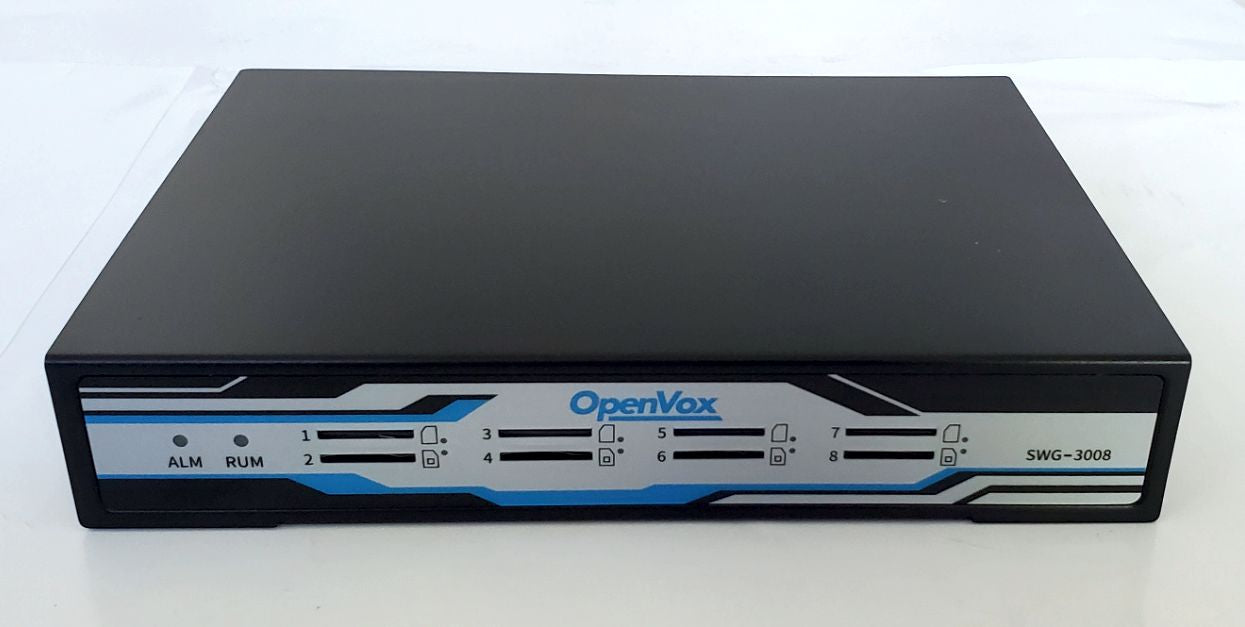

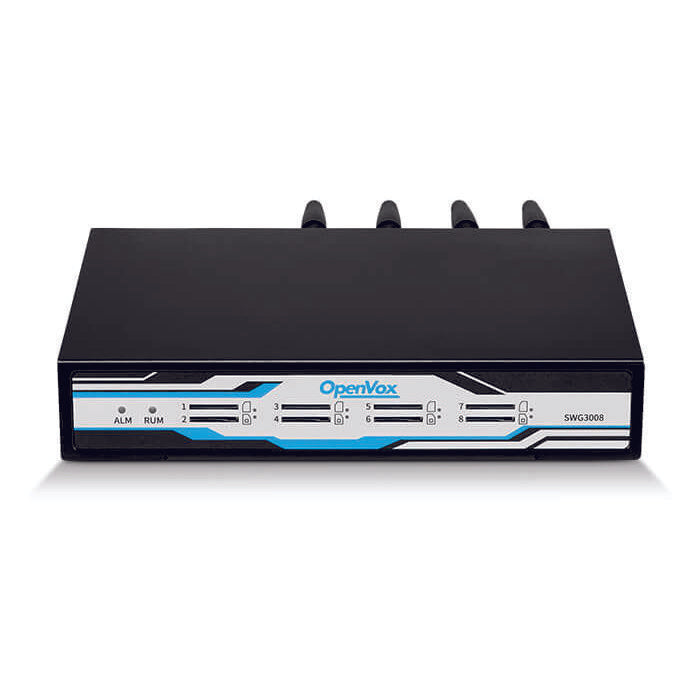

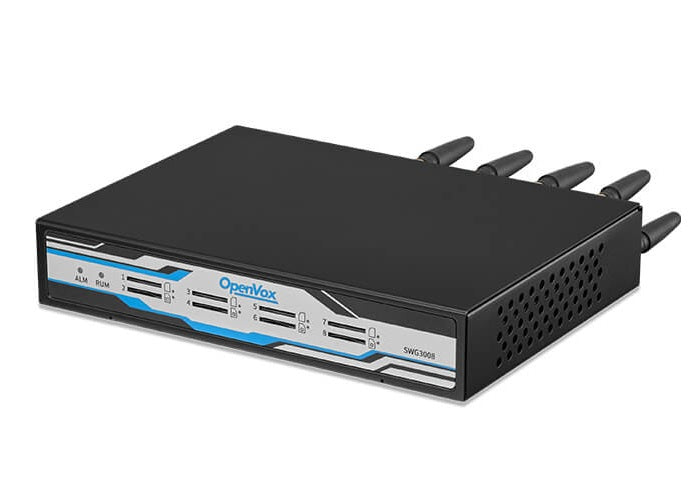

OpenVox SWG-3008L 2G 3G 4G LTE 8 Channels Wireless Gateway

OpenVox SWG-3008L 2G 3G 4G LTE 8 Channels Wireless Gateway

Regular price $1,239.92
Regular price $1,409.00 Sale price $1,239.92
Sale Sold out
Shipping calculated at checkout.

Model: SWG-3008L-AF
Retail Price:  $1,409.00


OpenVox SWG-3008 series wireless gateways which can compatible with a series of modules(2G/3G/4G), enabling interconncetion between GSM / WCDMA / LTE network and VoIP network safely and efficiently. It can bring you excellent HD voice service with multiple codecs, including G.711U, G.711A, GSM, G.722, G.726, G.729. Our products support SMS messages sending, receiving, group sending and SMS to E-mail.

The SWG-3008 series gateways is perfectly compatible with Asterisk, 3CX, FreePBX, FreeSWITCH SIP server and VOS VoIP system platform. It can provides users with more diverse telecommunications access methods and helps users reduce communication costs.

With features of small size, exquisite enclosure and high performance, It is specially designed for saving space and maximizing cost savings, it is an ideal solution for SMBs and SOHOs. The SWG-3008 wireless gateway has incredible processing capacity. It could be configured 8 Ports of Wireless-to-IP transmission, and support a diversity of wireless networks in a single system.

It also could match all brands of terminal mobile devices and a complete range of SIP trunking worldwide, support auto-provision in complex network environment. It is an excellent solution for the industry VoIP gateway, which makes a variety of choices in the market for users who need a higher demanding wireless gateway.

Product Name: SWG-3008L
Module Type: WCDMA / LTE
Module Number: 8
Channel Number: 8

LTE FDD: B1/B3/B5/B8
LTE TDD: B38/B39/B40/B41
GSM: 900/1800MHz

Europe/Middle East/Africa/Korea/Thailand
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
GSM: B3/B88

North America
LTE FDD: B2/B4/B5/

Australia/New Zealand/Taiwan/Brazil
LTE FDD: B1/B2/B3/B4/B5/
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8

Power Consumption: 10W
SIM Card: Hot-Swap
LAN: 1*10/100M
WAN: 1*10/100M
USB Micro-B: 1(Supports USB Micro-B storage)
Operaton Temperature: 0℃ ~ 45℃
Operaton Humidity Range: 10% ~ 90%
Storage Temperature Range: -20℃ ~ 70℃

VoIP Characters

  • Support SIP,IAX2 Protocol
  • Add, Modify & Delete SIP/IAX2 Trunk
  • SIP/IAX2 Registration with Domain
  • SIP V2.0 RFC3261 Compliance
  • DTMF Mode: RFC2833/Inband/SIP Info
  • Multiple SIP/IAX2 Registrations modes
  • Abundant Codecs:G.711A, G.711U, G.729, G.722, G.726, GSM


  • VPN Type:OpenVPN / PPTP VPN / N2N VPN / L2TP VPN (Not available for EAEU)
  • HTTP/SSH(Optcal Telnet)
  • Ping & Traceroute Command on the Web
  • Simple Security Strategy: white list, black list, security rules


  • Simple and convenient configuration via Web GUI
  • Support maintenance and configuration by SSH
  • Support configuration files backup and upload
  • Support Chinese and English page
  • Firmware Update by HTTP
  • Support Web and SSH login password modification
  • Restore Factory Settings
  • CDR(More than 200,000 Lines CDRs Storage Locally)
  • System log
  • SIP/IAX2 log
  • TCP and SIP capture

System Features

  • Combine Different SIP/IAX2 Trunk into Group
  • CLID Display & Hide (Need operators' support )
  • Random call interval
  • Call Duration Limitation
  • Single Call Duration Limitation
  • Real Open API Protocol (based on Asterisk)
  • Support DISA
  • PIN Identification
  • Optional Voice Codec
  • Ports Group Management
  • SMS Bulk Transceiver, Sent to Email and Automatically Resend
  • SMS Coding/Detecting Automatically Identification
  • SMS Remotely Controlling Gateway
  • SMS Forwarding and Quick Reply
  • USSD transceiver
  • Outbound
  • Automatically Reboot
  • Support MMP / SNMP / SMPP
  • Support for custom scripts, dialplans
  • Support Openvox cloud manage


  • 1 Year Limited Manufacturer Warranty
