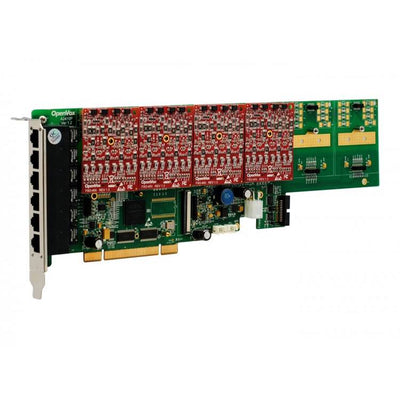

OpenVox A2410P04 24 Port Analog PCI Card 0 FXS400 3 FXO400
Regular price $665.00 Sale price $585.20 Save $79.80
Model: A2410P04
Retail Price: $665.00
Product Spotlight
OpenVox A(E)2410P/E takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality on both FXO and FXS interfaces in all 24 ports.
- Adjustable Interrupt Routing Design
- Interrupts frequency adjustment
- Up to 24 Simultaneous PSTN Calls (Per PCI Slot)
- Compatible with All Commercially Available Motherboards
- Octasic® Hardware Echo Cancellation Module Available
A(E)2410P/E is a new generation analog card with Octasic® Hardware Echo Cancellation Module on board. With the interchangeable quad-FXS and quad-FXO modules, AE2410P can eliminate the requirement for separate channel banks or access gateways.Once the Octasic® DSP module EC2032 is added to the AE2410P/E, please make sure you are ready to say goodbye to the poor voice quality and echo echo echo in your phone system. No one will even get a chance to hear that any more! The AE2410P with Octasic DSP module will support Telco-grade hardware echo cancellation on all channels, up to the card’s maximum configuration in 24 ports with no additional CPU load.AE2410P/E works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.
Target Applications
- Channel Bank Replacement / Alternative
- Small Office Home Office (SOHO) applications
- Small and Medium Business (SMB) applications
- Gateway Termination to analog telephones/lines
- Caller ID and Call Waiting Caller ID
- ADSI Telephones
- Loopstart Signaling Support
- Up to 24 ports through a combination of FXS400 and FXO400 modules
- Full-length analog card
- Up to 6 quad FXS or FXO modules
- RJ45 connector
- 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
- 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
- Autosense compatibility with 5 V and 3.3 V PCI busses compatible
- FPGA design, upgradeable firmware onsite
- Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
- Operation temperature: 0°C to 50 °C
- Storage temperature: -40°C to 125°C
- Size: 31.1*9.8*1.8cm
- Weight: 175g
- 1024 taps/128 ms tail/channel (on all channel densities)
- Octasic® music protection
- Automatic level control (G.169)
- Field upgradeable algorithm
- V.25 / V.8 answer tone
- DTMF as per Q.24
- No CPU load as a result of echo cancellation.
- Does not increase the physical size of the card, and no additional slot is required
- EC2032 (SMEC V1.1) power: 3.83W
Linux (all versions, releases and distributions from 1.0 up)
Minimum Hardware Requirement
- 800-Mhz Pentium III
- 128MB RAM
- Available PCI Slot
- 1 FXS400 or 1 FXO Module
Certification
FCC Part 15,FCC Part 68,CE(EN55022, EN55024),CS-03 and RoHS Compliant
| A2410P | FXS400 | FXO400 | EC2032 | AE210P/E | FXS400 | FXO400 | EC2032 |
| A2410P/E | 0 | 0 | 0 | AE2410P/E | 0 | 0 | 1 |
| A2410P/E10 | 1 | 0 | 0 | AE2410P/E10 | 1 | 0 | 1 |
| A2410P/E20 | 2 | 0 | 0 | AE2410P/E20 | 2 | 0 | 1 |
| A2410P/E30 | 3 | 0 | 0 | AE2410P/E30 | 3 | 0 | 1 |
| A2410P/E40 | 4 | 0 | 0 | AE2410P/E40 | 4 | 0 | 1 |
| A2410P/E50 | 5 | 0 | 0 | AE2410P/E50 | 5 | 0 | 1 |
| A2410P/E60 | 6 | 0 | 0 | AE2410P/E60 | 6 | 0 | 1 |
| A2410P/E01 | 0 | 1 | 0 | AE2410P/E01 | 0 | 1 | 1 |
| A2410P/E02 | 0 | 2 | 0 | AE2410P/E02 | 0 | 2 | 1 |
| A2410P/E03 | 0 | 3 | 0 | AE2410P/E03 | 0 | 3 | 1 |
| A2410P/E04 | 0 | 4 | 0 | AE2410P/E04 | 0 | 4 | 1 |
| A2410P/E05 | 0 | 5 | 0 | AE2410P/E05 | 0 | 5 | 1 |
| A2410P/E06 | 0 | 6 | 0 | AE2410P/E06 | 0 | 6 | 1 |
| A2410P/E11 | 1 | 1 | 0 | AE2410P/E11 | 1 | 1 | 1 |
| A2410P/E21 | 2 | 1 | 0 | AE2410P/E21 | 2 | 1 | 1 |
| A2410P/E31 | 3 | 1 | 0 | AE2410P/E31 | 3 | 1 | 1 |
| A2410P/E41 | 4 | 1 | 0 | AE2410P/E41 | 4 | 1 | 1 |
| A2410P/E51 | 5 | 1 | 0 | AE2410P/E51 | 5 | 1 | 1 |
| A2410P/E12 | 1 | 2 | 0 | AE2410P/E12 | 1 | 2 | 1 |
| A2410P/E13 | 1 | 3 | 0 | AE2410P/E13 | 1 | 3 | 1 |
| A2410P/E14 | 1 | 4 | 0 | AE2410P/E14 | 1 | 4 | 1 |
| A2410P/E15 | 1 | 5 | 0 | AE2410P/E15 | 1 | 5 | 1 |
| A2410P/E22 | 2 | 2 | 0 | AE2410P/E22 | 2 | 2 | 1 |
| A2410P/E23 | 2 | 3 | 0 | AE2410P/E23 | 2 | 3 | 1 |
| A2410P/E24 | 2 | 4 | 0 | AE2410P/E24 | 2 | 4 | 1 |
| A2410P/E32 | 3 | 2 | 0 | AE2410P/E32 | 3 | 2 | 1 |
| A2410P/E33 | 3 | 3 | 0 | AE2410P/E33 | 2 | 3 | 1 |
| A2410P/E42 | 4 | 2 | 0 | AE2410P/E42 | 3 | 2 | 1 |
Warranty:
- 1 Year Limited Manufacturer Warranty
