Model: IP9255

Retail Price: $135

Overview

The IP9255 is built with high quality components, and a robust design, this compact device was created for small spaces that require remote power management. The built-in web server allows the 9255 to easily connect to the internet and can easily be controlled to meet the needs of its users. Specially built to support more fluorescent T5 lighting, the IP Power 9255 uses high quality components to make sure that the device provides the safest environments for their users.

Also going through Aviosys vigorous QC process the 9255 will not only be cost efficient but also reliable. In addition to the vast array of features like auto-ping, scheduler, email notification, DDNS, telnet, and http commands, the features of 9255 will allow this device to easily be integrated or used to meet each individual user's needs.

Compatibility with all Android and IOS systems makes the IP Power 9255 a must have device for power management. Users can now easily turn on turn off or reset their devices through a computer, a smartphone, or anywhere with Internet access.

Features:

• Inrush Current relay design for extra protection.
• Designed to control T5 fluorescent lighting.
• Industrial single port Relay design network controller.
• Accessible with popular web browsers - IE, Google Chrome, Netscape Firefox
• Supports up to maximum current: 8Amp.
• Power surge protection design to protect against high voltage power surge.
• Designed to meet high voltage and current safety standard design and regulation.
• Watchdog -- Auto Ping.
• Network protocols support: HTTP, DDNS, DHCP, SNMP, SMTP.
• SDK for own software development.
• Smartphone Android and IOS supported.
• Embedded web server - No PC is required for it to work.

Specifications:

• Power Cable Input: 10AMP 18AWG 0.75 x 3C (Standard PC Power Cable)
• Relay: Max. 8Amp / port
• T5 fluorescent light control: 240Watt
• Weight: 192.6 grams without packaging.
• Size: 8.5 x 7 x 8.5cm

Power Cord is NOT included and is sold separately. You will require a HEAVY-DUTY PC Type Power 14-AWG Cord

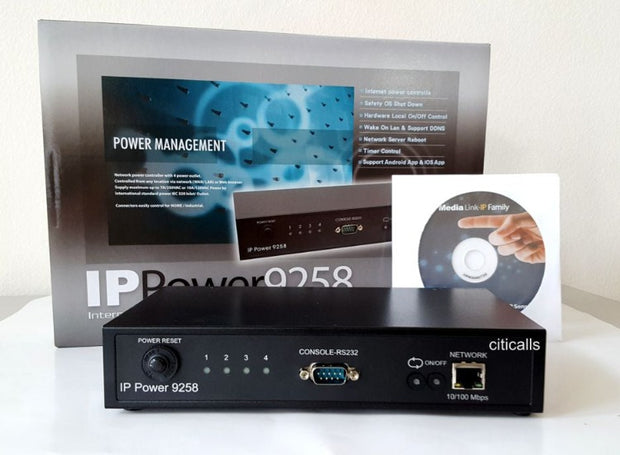

Model: IP9258T
Retail Price: $174.00

The IP POWER IP9258T/TP is a web controller which can be easily used in the networking industry field. With the remote network control technology, user can control or query the power supply of connected devices. User can easily do this in any browser over the internet or over the local area network, no special program is required.

You can remotely control any Powered devices including Personal Computer, Server, Netowkr Router or Switches, and even security and surveillance system.

Main Features

• Input 90-230VAC
• Output 8A/100VAC or 8A/240VAC
• Use of regular 15A PC Power Cord

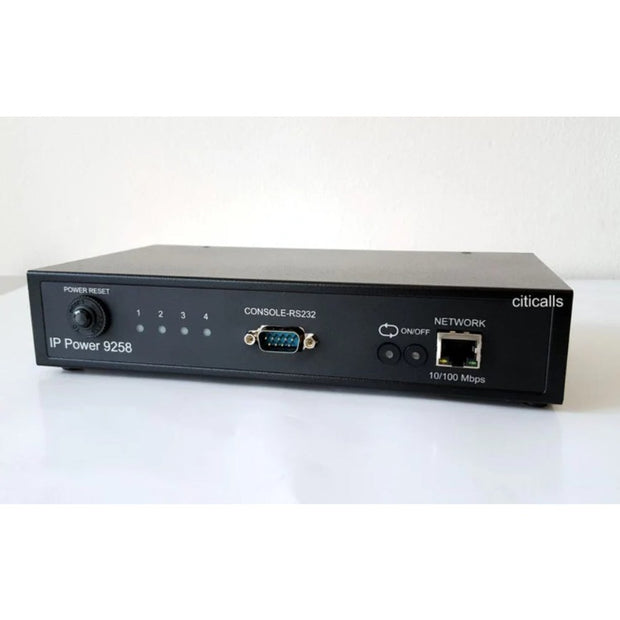

Front Panel:

• Power Reset Button
• 4 LED Status Indicator
• 9 PIN Serial Port
• 10/100 Mbps Ethernet Port
• On/Off Buttons

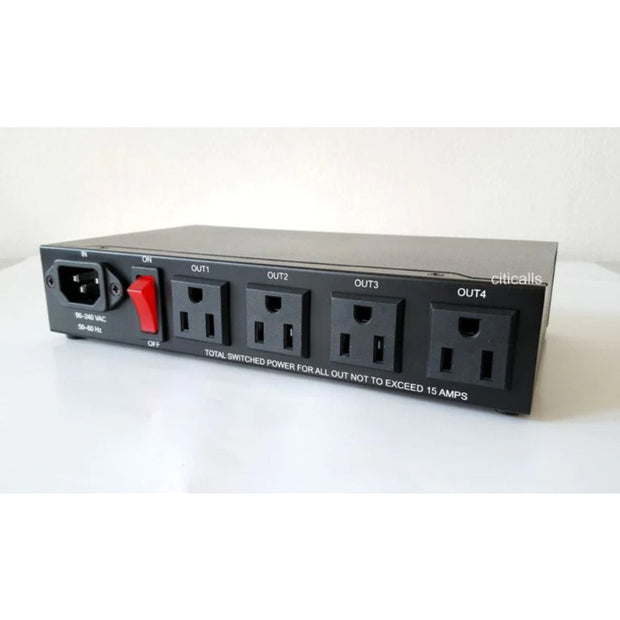

Back Panel:

• Four (4) Power Outlets (NEMA5)
• On/Off Switch
• Input Power Plug Connector

Network Function:

• Web server design, via LAN or WAN (Requires opening Firewall Port to access via over Internet)
• Support HTTP and DHCP/IP protocol. Windows SDK available, Telnet.
• Security password
• Watchdog design to avoid abnormal network interruptions
• Timer and scheduler design, power can be booted by program.
• Online update firmware available when required
• SNMP functionality

Specifications

Languages

• English
• Chinese Traditional

Network:

• RJ-45 10 BASE-T/100BASE-TX

Power

• Maximum Voltage for 4 outlet total: 250V AC, 24V DC
• Maximum Current for 4 outlet total: 15A AC/DC
• Maximum Rated Current (Each Outlet): 6A AC/DC

The NEMA5 are popularly use in the following countries:

• Brazil
• China
• Canada
• Japan
• Mexico
• Philippines
• Taiwan
• Thailand
• USA
• South America

Regulalatory Approvals

• FCC
• CE
• C-Tick
• RoHS

What's Included

• IP92858T
• Quick Installation Guide

Series Models:

• IP9258T
• IP9258TP - includes Ping Function

Power Cord is NOT included and is sold separately  You will require a PC Type Power 15 14 AWG Cord

Model: IP9258TP (with Auto-Ping Feature)

Retail Price: $186.00

The IP POWER IP9258T/TP is a web controller which can be easily used in the networking industry field. With the remote network control technology, user can control or query the power supply of connected devices. User can easily do this in any browser over the internet or over the local area network, no special program is required.

You can remotely control any Powered devices including Personal Computer, Server, Netowkr Router or Switches, and even security and surveillance system.

Main Features

• Input 90-230VAC
• Output 8A/100VAC or 8A/240VAC
• Use of regular 15A PC Power Cord

Front Panel:

• Power Reset Button
• 4 LED Status Indicator
• 9 PIN Serial Port
• 10/100 Mbps Ethernet Port
• On/Off Buttons

Back Panel:

• Four (4) Power Outlets (NEMA5)
• On/Off Switch
• Input Power Plug Connector

Network Function

• Web server design, via LAN or WAN (Requires opening Firewall Port to access via over Internet)
• Support HTTP and DHCP/IP protocol. Windows SDK available, Telnet.
• Security password
• Watchdog design to avoid abnormal network interruptions
• Timer and scheduler design, power can be booted by program.
• Online update firmware available when required
• SNMP functionality

Specifications

Languages

• English
• Chinese Traditional

Network:

• RJ-45 10 BASE-T/100BASE-TX

Power

• Maximum Voltage for 4 outlet total: 250V AC, 24V DC
• Maximum Current for 4 outlet total: 15A AC/DC
• Maximum Rated Current (Each Outlet): 6A AC/DC

The NEMA5 are popularly use in the following countries:

• Brazil
• China
• Canada
• Japan
• Mexico
• Philippines
• Taiwan
• Thailand
• USA
• South America

Regulalatory Approvals

• FCC
• CE
• C-Tick
• RoHS

What's Included

• IP92858TP
• Quick Installation Guide

Power Cord is NOT included and is sold separately  You will require a PC Type Power 15 14 AWG Cord

Series Models:

• IP9258T
• IP9258TP - includes Ping Function

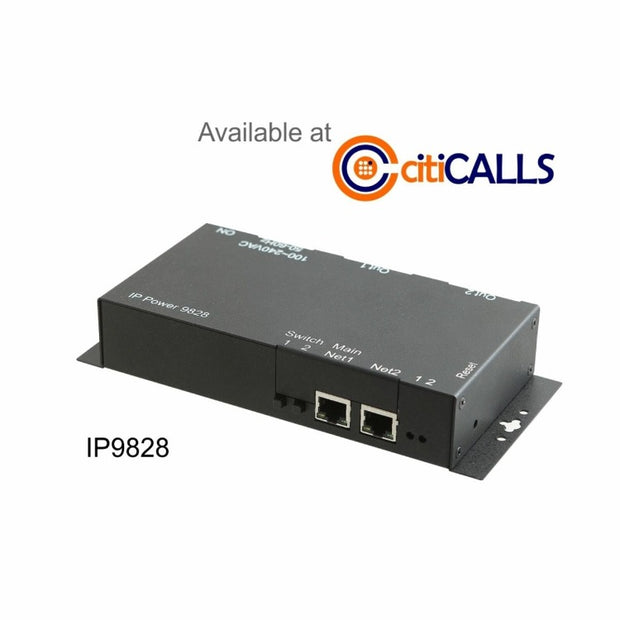

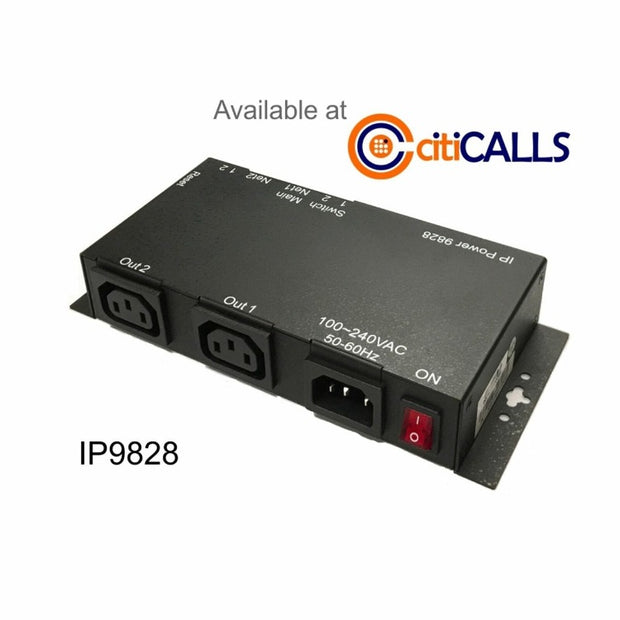

Model: IP9828

Retail Price: $178.

The IP Power IP9828 is a web controlled power distribution unit. The new release 9828 is built in a metal enclosure that is slim and very low height of 3.5cm and small footprint that best suits location where you have limited space.

This listing is for an IP9828 with Standard PING Feature. This will include 2 pieces of IEC 320 EN 60320 C14 to NEMA 5-15R) Adapter

Power Cord is NOT included and is sold separately. You will require a HEAVY DUTY PC Type Power Cord 14 AWG

Features:

• Magnetic "Latching Relay" (KEEP relay)
• Low Power Consumption.
• Manual Direct Command on each port (2 buttons)
• Current Sensor Meter Detection (on both ports)
• Power surge protection
• Easy back-up and save functions like Time Schedule, Network Setting, Ping Setting.
• Time Schedule.
• Log Capability
• Email PoP3 ON/OFF control
• Wake on LAN / Shutdown on LAN
• uPNP. Port forwarding not required, simple enter the Web Gui via WAN
• SSH/Telnet, HTTPS-HTTPS SSL 3.0, SNMPv3
• MQTT (CNT2)
• DIN-Rail Support, Optional and sold separately.

Specifications:

• Dimensions: 195x88x35 mm (7.67" x 3.46" x 1.37")
• Power Input: 90~240VAC
• Maximum Current Rate: 15A
• Maximum Total Loading: 15A / 90-120VAC & 10A / 210-240VAC
• Interface: 4 LED indicator lights button
• Reset: Hardware Reset Button
• On/Off: 2 Push Buttons
• Network: 2 RJ45, 10/100 Ethernet WAN/LAN

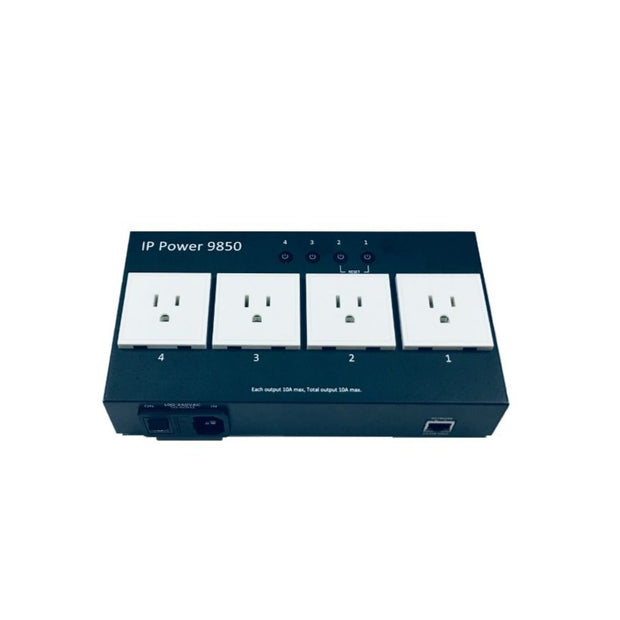

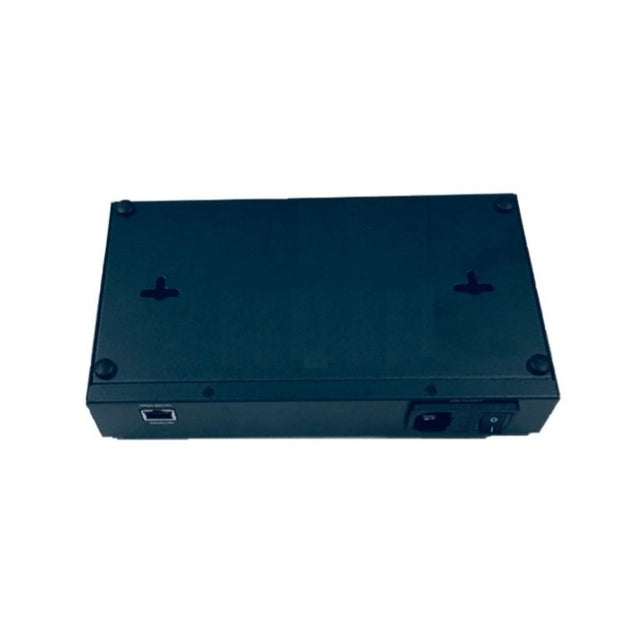

Model: IP9850

Retail Price: $188.00

The IP Power IP9850 is a web controlled power distribution unit. The new release 9850 solution comes with the power socket on the top side that provides easier access and better cable management. Auto-PING is now a built-in standard.

Features:

• Magnetic "Latching Relay"
• Manual Direct Command on each port (4 buttons)
• Power surge protection
• BACnet/IP and Modbus/TCP Protocol
• Email PoP3 ON/OFF control
• Wake on LAN / Shutdown on LAN
• uPNP. Port forwarding not required, simple enter the Web Gui via WAN

Specifications:

• Dimensions: 200x140x50 mm (7.87" x 5.52" x 1.97")
• Power Input: 100~240VAC
• Maximum Current per Outlet: 10A
• Maximum Current per 4 Outlet: 10A
• Maximum Total Loading: 15A / 90-120VAC & 10A / 210-240VAC
• Interface: 4 LED indicator lights button
• Reset: Hardware Reset Button
• Network: RJ45, 10/100 Ethernet

Power Cord is NOT included and is sold separately. You will require a HEAVY-DUTY PC Type Power 14-AWG Cord.

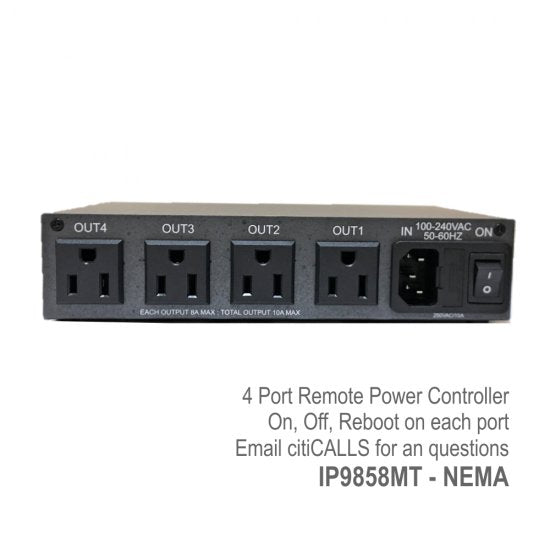

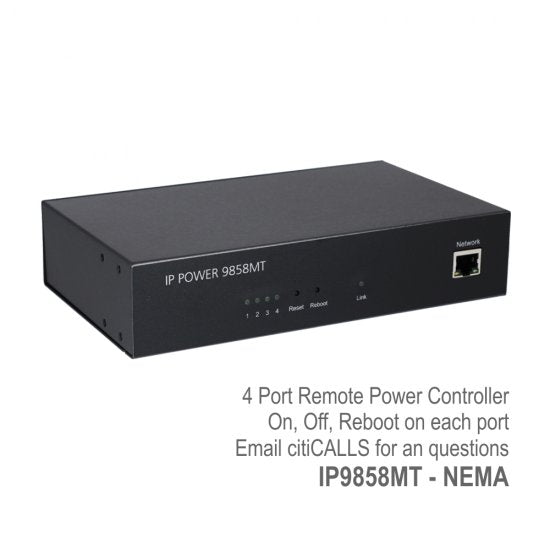

Model: IP9858MT

Retail Price: $211.00

The IP9858MT is a new generation Remote Power Controller system. A 4 port Power Distribution Unit (PDU) can now be controlled by any popular browser, Android, IOS with any smartphone.

Features:

• Embedded HTTP/HTTPS web browser interface (No special software client required)
• Use with any smartphone, IOS and Android with any web browser, including Internet Explorer, Edge, Firefox, Chrome, Safari, Opera, Samsung Internet, Brave.
• New Android IP Power Apps is free for easier management which includes Control of IP9858MT without port forwarding required, quick search in LAN/WAN (IPEdit feature)
• 4 Port remote power control for "Power Cycle", Reboot, On and Off.
• Support for HTTPS, HTTP, SSL 3.0, SSH, Telnet, TCPIP, PPPOE, DHCP, DDNS, SMTP, SNMP.
• MQTT, supports Cloud IoT Server with Microsoft Azure; Google Cloud IoT, Amazon AWS IoT
• Power Surge Protection FUSE embedded.
• Syslog support standard log function.
• Time Scheduler.
• Auto-Ping
• Easy support for popular email including gmail, yahoo and hotmail.
• Easy notification via email.
• Email POP3 Control for without need of port forwarding
• Aviosys IP Power Center software to control multiple 9858MT in a single software.
• Magnetic "Latching Relay"
• Email PoP3 ON/OFF control
• Wake on LAN / Shutdown on LAN
• uPNP. Port forwarding not required, simple enter the Web Gui via WAN
• MQTT Supports Cloud IoT Servers: Microsoft AZURE, Google Cloud IoT and Amazon AWS IoT

Specifications:

• Dimensions: 220x120x45 mm (8.66" x 4.72" x 1.77")
• Power Input: 100~240VAC
• Maximum Current per Outlet: 8A
• Maximum Current per 4 Outlet: 10A
• Maximum Total Loading: 15A / 90-120VAC & 10A / 210-240VAC
• Interface: 4 LED indicator lights button
• Reset: Hardware Reset Button
• Network: RJ45, 10/100 Ethernet
• Working Temperature: 0~50°C (32~122°F)

Power Cord is NOT included and is sold separately. You will require a HEAVY-DUTY PC Type Power 14-AWG Cord

If you need 4 ports PDU, we have the Aviosys 9258 IP9258TP

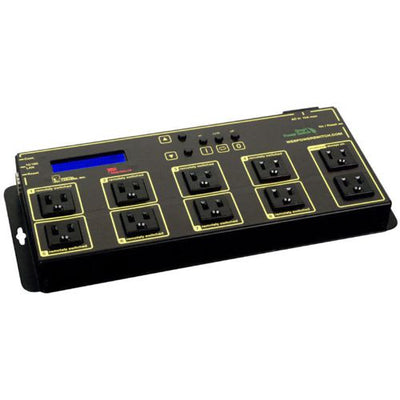

MODEL: DLI-PRO

Reliable Remote Reboot and Power Controller - Web Power Switch

Features

•     Easy to use. Easy to set up. Clean web interface.
•     Secured WiFi and wired Ethernet.
•     Multi-target AutoPing reboots routers & modems.
•     HTTPS, SNMP, Rest API, SSH, SSL, Echo/Alexa & more.
•     Lua scripting language for customizing.
•     Powerful 32bit CPU with watchdog adds reliability.
•     Oversized 40A relays and power supply. 4x beefier than competitors.
•     Detachable 15Amp 6 foot cord

Fresh off the production line is the new DLI-PRO switch.  It adds new features from data center power switches, but keeps the compact size of the popular DLI-8P7

Use the simple, clean web interface right out of the box  ...or customize it using the built-in scripting language. The Pro is completely stand-alone. No cloud service or subscription needed.

Model: PXT1011410

Price: $24.29

10ft (3m) Heavy Duty Power Cord, NEMA 5-15P to C13, PC Cable

• HEAVY DUTY AC POWER CORD: This 10ft (3m) 14AWG universal power cord with NEMA 5-15P and IEC 60320 C13 connectors is suitable for workstation/home office use | Rated to carry 125V at 15A
• PERFORMANCE AND SAFETY: UL listed (UL62 & UL817) | Fully molded strain relief connectors for durability | Fire Rating: VW-1 | 3 Conductor Power Cable made with 100% Copper Wire | This C13 thick gauge computer power cord is available in other lengths
• SPECS: 10ft (3m) AC Power Cord | NEMA 5-15P to IEC 60320 C13 | 14AWG | 125V 15A(Max) | Jacket Type: SJT | Jacket Material: PVC | Black | Temperature Range: 37°F to 140°F (3°C to 60°C) | Cable Outer Diameter: 0.3in (7.6mm)
• COMPATIBILITY: PC Power Cord NEMA 5-15P works with North American outlets | IEC C13 connector works with most desktop computers, servers, monitors, PDUs, printers, and more | Replacement PC power supply cable/cord

Model: PXT101143

3ft (1m) Heavy Duty Power Cord, NEMA 5-15P to C13, PC Cable

• HEAVY DUTY AC POWER CORD: This 10ft (3m) 14AWG universal power cord with NEMA 5-15P and IEC 60320 C13 connectors is suitable for workstation/home office use | Rated to carry 125V at 15A
• PERFORMANCE AND SAFETY: UL listed (UL62 & UL817) | Fully molded strain relief connectors for durability | Fire Rating: VW-1 | 3 Conductor Power Cable made with 100% Copper Wire | This C13 thick gauge computer power cord is available in other lengths
• SPECS: 10ft (3m) AC Power Cord | NEMA 5-15P to IEC 60320 C13 | 14AWG | 125V 15A(Max) | Jacket Type: SJT | Jacket Material: PVC | Black | Temperature Range: 37°F to 140°F (3°C to 60°C) | Cable Outer Diameter: 0.3in (7.6mm)
• COMPATIBILITY: PC Power Cord NEMA 5-15P works with North American outlets | IEC C13 connector works with most desktop computers, servers, monitors, PDUs, printers, and more | Replacement PC power supply cable/cord

Model: PXT101146

6ft (1.8m) Heavy Duty Power Cord, NEMA 5-15P to C13, PC Cable

• HEAVY DUTY AC POWER CORD: This 10ft (3m) 14AWG universal power cord with NEMA 5-15P and IEC 60320 C13 connectors is suitable for workstation/home office use | Rated to carry 125V at 15A
• PERFORMANCE AND SAFETY: UL listed (UL62 & UL817) | Fully molded strain relief connectors for durability | Fire Rating: VW-1 | 3 Conductor Power Cable made with 100% Copper Wire | This C13 thick gauge computer power cord is available in other lengths
• SPECS: 10ft (3m) AC Power Cord | NEMA 5-15P to IEC 60320 C13 | 14AWG | 125V 15A(Max) | Jacket Type: SJT | Jacket Material: PVC | Black | Temperature Range: 37°F to 140°F (3°C to 60°C) | Cable Outer Diameter: 0.3in (7.6mm)
• COMPATIBILITY: PC Power Cord NEMA 5-15P works with North American outlets | IEC C13 connector works with most desktop computers, servers, monitors, PDUs, printers, and more | Replacement PC power supply cable/cord
