Model: AE810EF
Retail Price: $449

Product Overview
OpenVox AE810EF is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

AE810EF is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The AE810EF contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

AE810EF works with Asterisk®, Elastix®, FreeSWITCH?, PBX in a Flash, trixbox®, Yate? and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Features

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support
• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCIe Slot)
• Compatible with All Commercially Available Motherboards

Target Applications

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

Technical Specifications

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• Optional Failover function with A810EF11 only.
• RJ45 connector
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*111.2mm*16mm
• Weight: 85g

Operating Systems

• Linux (all versions, releases and distributions from 1.0 up)

Minimum Hardware Requirement

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI-E x1 Slot

Certifications

• RoHS Compliant
• Certificates: FCC, CE and CS-03

A810EF / AE810EF Series Model Configuration

..darwin..

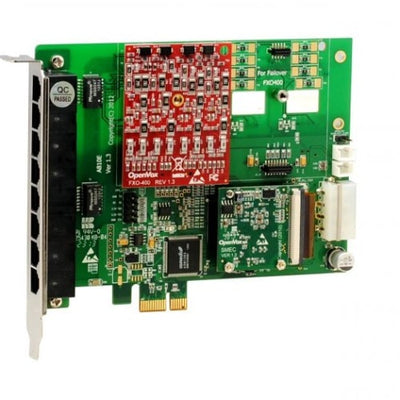

Model: AE810EF01
Retail Price: $1,364

Product Overview
OpenVox AE810EF is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

AE810EF is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The AE810EF contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

AE810EF works with Asterisk®, Elastix®, FreeSWITCH?, PBX in a Flash, trixbox®, Yate? and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Features

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support
• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCIe Slot)
• Compatible with All Commercially Available Motherboards

Target Applications

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

Technical Specifications

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• Optional Failover function with A810EF11 only.
• RJ45 connector
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*111.2mm*16mm
• Weight: 85g

Operating Systems

• Linux (all versions, releases and distributions from 1.0 up)

Minimum Hardware Requirement

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI-E x1 Slot

Certifications

• RoHS Compliant
• Certificates: FCC, CE and CS-03

A810EF / AE810EF Series Model Configuration

..darwin..

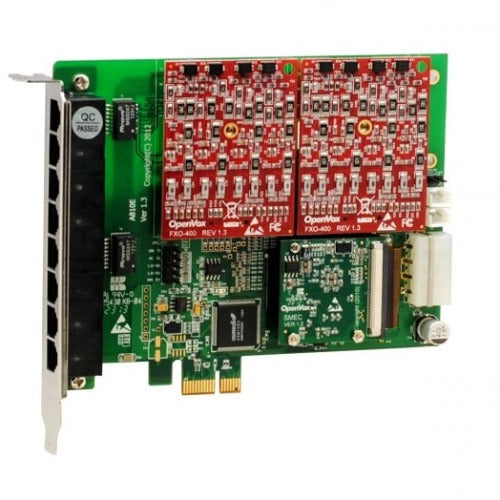

Model: AE810EF02
Retail Price: $1,514

Product Overview
OpenVox AE810EF is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

AE810EF is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The AE810EF contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

AE810EF works with Asterisk®, Elastix®, FreeSWITCH?, PBX in a Flash, trixbox®, Yate? and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Features

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support
• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCIe Slot)
• Compatible with All Commercially Available Motherboards

Target Applications

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

Technical Specifications

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• Optional Failover function with A810EF11 only.
• RJ45 connector
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*111.2mm*16mm
• Weight: 85g

Operating Systems

• Linux (all versions, releases and distributions from 1.0 up)

Minimum Hardware Requirement

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI-E x1 Slot

Certifications

• RoHS Compliant
• Certificates: FCC, CE and CS-03

A810EF / AE810EF Series Model Configuration

..darwin..

Model: AE810EF10
Retail Price: $1,364

Product Overview
OpenVox AE810EF is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

AE810EF is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The AE810EF contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

AE810EF works with Asterisk®, Elastix®, FreeSWITCH?, PBX in a Flash, trixbox®, Yate? and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Features

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support
• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCIe Slot)
• Compatible with All Commercially Available Motherboards

Target Applications

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

Technical Specifications

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• Optional Failover function with A810EF11 only.
• RJ45 connector
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*111.2mm*16mm
• Weight: 85g

Operating Systems

• Linux (all versions, releases and distributions from 1.0 up)

Minimum Hardware Requirement

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI-E x1 Slot

Certifications

• RoHS Compliant
• Certificates: FCC, CE and CS-03

A810EF / AE810EF Series Model Configuration

..darwin..

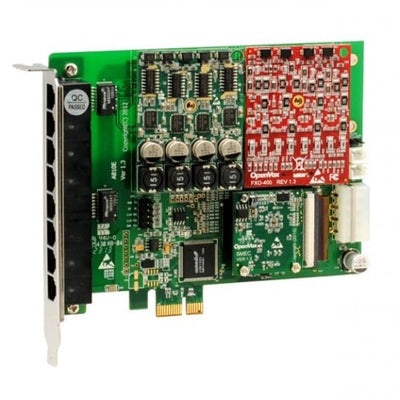

Model: AE810EF11
Retail Price: $1,514

Product Overview
OpenVox AE810EF is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

AE810EF is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The AE810EF contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

AE810EF works with Asterisk®, Elastix®, FreeSWITCH?, PBX in a Flash, trixbox®, Yate? and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Features

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support
• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCIe Slot)
• Compatible with All Commercially Available Motherboards

Target Applications

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

Technical Specifications

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• Optional Failover function with A810EF11 only.
• RJ45 connector
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*111.2mm*16mm
• Weight: 85g

Operating Systems

• Linux (all versions, releases and distributions from 1.0 up)

Minimum Hardware Requirement

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI-E x1 Slot

Certifications

• RoHS Compliant
• Certificates: FCC, CE and CS-03

A810EF / AE810EF Series Model Configuration

..darwin..

Model: AE810EF20
Retail Price: $1,514

Product Overview
OpenVox AE810EF is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 8 ports.

AE810EF is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

The AE810EF contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

AE810EF works with Asterisk®, Elastix®, FreeSWITCH?, PBX in a Flash, trixbox®, Yate? and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Features

• Caller ID and Call Waiting Caller ID
• ADSI Telephones
• Loopstart Signaling Support
• Adjustable Interrupt Routing Design
• Interrupts Frequency Adjustment
• Up to 8 Simultaneous PSTN Calls (Per PCIe Slot)
• Compatible with All Commercially Available Motherboards

Target Applications

• Channel Bank Replacement / Alternative
• Small Office Home Office (SOHO) applications
• Small and Medium Business (SMB) applications
• Gateway Termination to analog telephones/lines

Technical Specifications

• Up to 8 ports through a combination of FXS400 and FXO400 modules
• Full-length analog card
• Up to 2 quad FXS or FXO modules
• Optional Failover function with A810EF11 only.
• RJ45 connector
• FPGA design, upgradeable firmware onsite
• Power: 8.21W Minimum, 88.24W Maximum
• Operation temperature: 0°C to 50 °C
• Storage temperature: -40°C to 125°C
• Size: 136.3mm*111.2mm*16mm
• Weight: 85g

Operating Systems

• Linux (all versions, releases and distributions from 1.0 up)

Minimum Hardware Requirement

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI-E x1 Slot

Certifications

• RoHS Compliant
• Certificates: FCC, CE and CS-03

A810EF / AE810EF Series Model Configuration

..darwin..

Model: FXO400
Retail Price: $139

The FXO400 Quad-FXO module allows OpenVox Analog A810/A1610/A2410 series cards to terminate four analog telephone lines (POTS) per module.

Because of the modular design, users can activate additional ports at any time with more FXS400 or FXO400 modules. The FXO400 module passes all the call features any standard analog telephone line will support.

Functions:

• FXS - Foreign Exchange Station
• FXO - Foreign Exchange Office

An FXS device initiates and sends ringing voltage. An FXO device receives the voltage sent by the FXS device.

The phone receiving the call is the last FXO device in the chain, and when it receives voltage from an FXS device, the phone will ring.

Connect the outside line to an FXO port on your Asterisk server to receive voltage from the outside lines.

Connect the phones to FXS ports on your Asterisk server. When the FXO module in your Asterisk Server receives the voltage, it will then generate voltage using the FXS module and send it to your analog phone.

Basic Data:

• Dimension: 5.7cm*4.5cm*0.7cm
• Weight: 13g

RoHS compliant
Certificates: CE and FCC

Warranty: One Year Limited Manufacturer Warranty

Certified by trixbox CE and Elastix

..darwin..

Model: FXS400
Retail Price: $139

The FXS400 Quad-FXS module allows OpenVox Analog A810/A1610/A2410 series cards to terminate four analog telephones per module.

Because of the modular design, users can activate additional ports at any time with more FXS400 or FXO400 modules. The FXS400 module passes all the call features any standard analog telephone line will support.

Functions:

• FXS - Foreign Exchange Station
• FXO - Foreign Exchange Office

An FXS device initiates and sends ringing voltage. An FXO device receives the voltage sent by the FXS device.

The phone receiving the call is the last FXO device in the chain, and when it receives voltage from an FXS device, the phone will ring.

Connect the outside line to an FXO port on your Asterisk server to receive voltage from the outside lines.

Connect the phones to FXS ports on your Asterisk server. When the FXO module in your Asterisk Server receives the voltage, it will then generate voltage using the FXS module and send it to your analog phone.

Basic Data:

• Dimension: 5.7cm*4.5cm*0.8cm
• Weight: 24g

RoHS compliant
Certificates: CE and FCC

Warranty: One Year Limited Manufacturer Warranty

Certified by trixbox CE and Elastix
